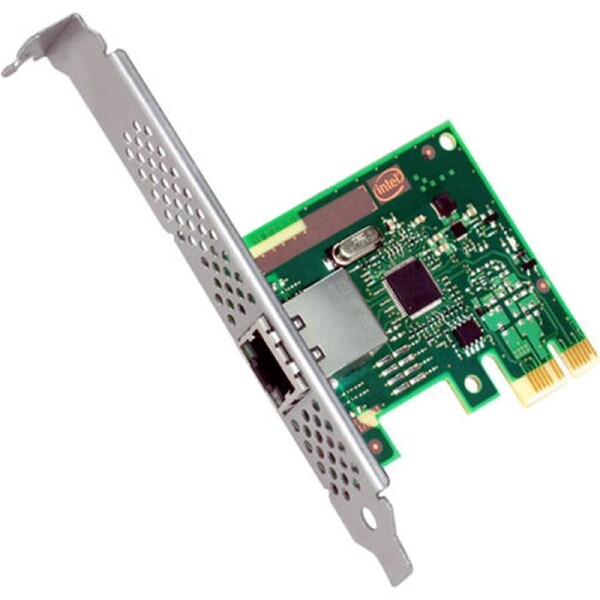

Intel I210 I210T1 Gigabit Ethernet Card for Server - 10/100/1000Base-T - Plug-in Card - PCI Express 2.0 - Full-height/Low-profile Bracket Height - -

Intel I210 I210T1 Gigabit Ethernet Card for Server - 10/100/1000Base-T - Plug-in Card - PCI Express 2.0 - Full-height/Low-profile Bracket Height - 125 MB/s Data Transfer Rate - Intel I210 - 1 Port(s) - 1 - Twisted Pair - Retail

The Intel® Ethernet Server Adapter I210 builds on Intel's history of excellence in Ethernet Products. This adapter represents the next step in the Gigabit Ethernet (GbE) networking evolution for the enterprise and data centers offering Audio-Video-Bridging (AVB) support, along with power management technologies such as Energy Efficient Ethernet (EEE) and DMA Coalescing (DMAC).

Audio-Video Bridging (AVB)

The Intel® Ethernet Server Adapter I210 supports IEEE 802.1Qav Audio-Video Bridging (AVB) for customers requiring tightly controlled media stream synchronization, buffering, and reservation. The 802.1Qav is part of the AVB specification that provides a way to guarantee bounded latency and latency variation for time sensitive traffic and includes:

• Timing and synchronization for time-specific applications (802.1AS) Stream Reservation (SR) protocol to guarantee the resources needed for Audio/Video (AV) streams (802.1Qat)
• Forwarding and queueing enhancements for time sensitive streams (802.1Qav).

Performance Optimization

The I210 contains four transmit and four receive queues. These queues offer Error Correcting Memory (ECC) protection for improved data reliability. The adapter efficiently manages packets with minimum latency by combining parallel and pipelined logic architectures optimized for these independent transmit and receive queues. These queues, combined with Receive Side Scaling (RSS) and Message Signal Interrupt Extension (MSI-X) support, optimize the performance on servers with multi-core processors.

Power Management Technologies

Intel has introduced new, Advanced Power Management Technologies (PMTs) that enable enterprises to configure power options on the adapter and more effectively manage power consumption.

Energy Efficient Ethernet (EEE)

Supports the IEEE802.3az Energy Efficient Ethernet (EEE) standard. During periods of low network activity, EEE reduces the power consumption of an Ethernet connection by negotiating with a compliant EEE switch port to transition to a low power idle (LPI) state.

The controller power is reduced by approximately 50 percent of its normal operating power, saving power on the network port and the switch port. When increased network traffic is detected, the controller and the switch quickly come back to full power to handle the increased network traffic. EEE is supported for both 1000BASE-T and 100BASE-TX.

DMA Coalescing

Another power management technology that can reduce power on the server platform is DMA Coalescing (DMAC). Typically, when a packet arrives at the adapter, a DMA request is initiated in order to place the packet into host (or server) memory. This transaction wakes up the processor, memory, and other system components from a lower power state in order to perform the tasks required to handle the incoming packet.

Features

• Enjoy the super fast Gigabit Ethernet connection by inserting this Gigabit Ethernet card into your computer
• This 500 MB/s bandwidth PCI Express 2.0 adapter ensures easy connectivity and plug-in form-factor for affordable and reliable Ethernet network
• Connect to a wired network with this single port network adapter for a hassle-free and quick response
• Supports cost-efficient twisted pair cables for speedy data transfer up to 100 meters
• With the 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over the twisted pair cable
