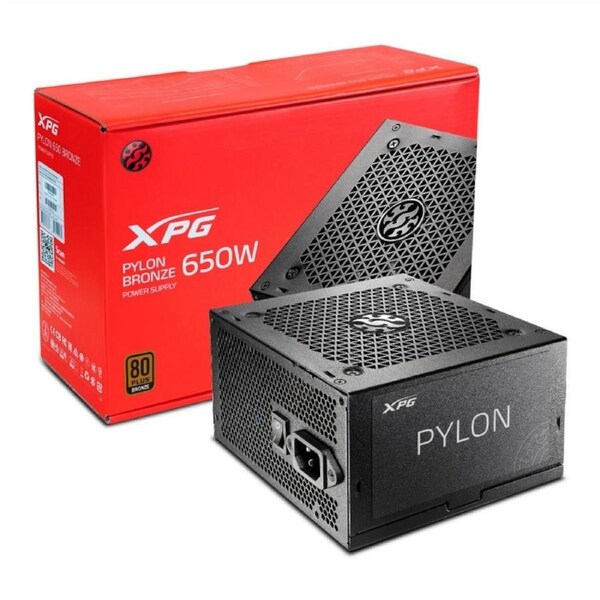

Adata XPG Pylon 650W 80+ Bronze ATX Power Supply [PYLON650B-BKCAU]

Adata XPG 650W PYLON Power Supply Unit

DC-to-DC Circuit in BRONZE Grade; XPG PYLON complies with Intel ATX Power Supply Design Guide's sleep mode function, featuring DC-to-DC 100% +12V Full Power(*) in all PYLON series, ensuring that power delivery remains consistent, power-efficient, and capable of supporting mid to high-end graphic cards and CPUs.; (*) DC-to-DC Circuit minimizes ripple noise, avoids unbalanced power load, and acts as a protective safeguard to PC components' life expectancy.; Cybenetics ETA and LAMBDA Certified; XPG PYLON SERIES is certified by Cybenetics for its efficiency and noise level, scoring at the top of its category in both ETA and LAMBDA standards. For more information on XPG PYLON's Cybenetics certifications, please visit XPG PYLON SERIES PSU - Cybenetics Labs - PSU Efficiency & Noise Level Certifications.; Main Japanese Capacitor at 105°C; High quality 105°C Main Japanese Capacitor in XPG PYLON Bronze Series ensures great durability and offer highest stability and reliability.; Specifications

• DC-to-DC Circuit in BRONZE Grade
• 80 Plus Bronze Certification
• Cybenetics ETA and LAMBDA Certified
• 120mm Fluid Dynamic Bearing (FDB) Fan*
• Main Japanese Capacitor at 105°C
• 8 Industrial-Level Protections

• Dimensions (L x W x H) :140 x 150 x 86mm
• Cybenetics Rating :650W/750W: SILVER
  450W/550W: BRONZE
• 80 Plus Rating :BRONZE
• ATX Version :Intel ATX 12V V2.4 (Timing complies with Intel ATX12V Specific guidelines to version 2.52)
• Protections :OCP / OVP / UVP / OPP / SCP / OTP / NLO / SIP
• Certification :CE / UKCA / CB / FCC (IC) / EAC / CCC / TUV / cTUVus / TUV S-Mark / RCM / NOM / BSMI / KC
• PFC :0.99
• Input Voltage :100-240V
• Input Current :750W?10A/5A ?650W?10A/5A ?550W?8A/4A ?450W?7A/3.5A
• Input Frequency :50Hz - 60Hz
• Operating Temperature :50°C
• Fan Size :120mm
• Fan Bearing :FDB (Fluid Dynamic Bearing)*
• Fan Speed :2,000 RPM
• MTBF :100K Hours at 25?
• ATX 24 Pin Connector :1
• EPS 8 (4+4) Pin Connector :750W : 1 / 650W : 1 / 550W : 1 / 450W?1
• EPS 8 Pin Connector :750w : 1 / 650w : 1 / 550w : 0 / 450w : 0
• PCI-E 6+2 Pin Connector :750W : 4 / 650W : 4 / 550W : 2 / 450W?2
• Molex 4 Pin Connector :750W : 3 / 650W : 3 / 550W : 2 / 450W?2
• SATA Connector :750W : 8 / 650W : 8 / 550W : 5 / 450W?5
• Floppy 4 Pin Connector :750W : 1 / 650W : 1 / 550W : 1 / 450W : 1
• Weight :750W?
  Product?2.12kg (4.7lb) ±5%
  with Package?2.63kg (5.8lb) ±5%
  650W?
  Product?1.87kg (4.1lb) ±5%
  with Package?2.38kg (5.2lb) ±5%
  550W?
  Product?1.77kg (3.9lb) ±5%
  with Package?28kg (5.0lb) ±5%
  450W?
  Product?1.67kg (3.7lb) ±5%
  with Package?2.2kg (4.9lb) ±5%
• Warranty :5 Years (3 years when purchased before 2022 January)
• Remark :* Limited quantities in selected regions of our PSUs have adopted mechanically identical fan blades but utilized upgraded Dual-Ball bearings with higher lifespan instead of FDB.
