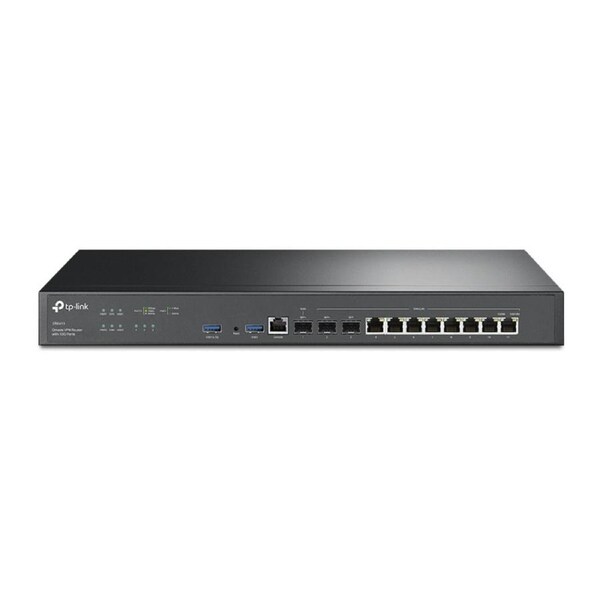

TP-Link ER8411 Omada VPN Router with 10G Ports, Integrated into Omada SDN

TP-Link ER8411, Omada VPN Router with 10G Ports, TP-Link

• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*3, Centralized Cloud Management, and Intelligent Monitoring.
• Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
• Two 10GE SFP+Ports: 1x WAN and 1x WAN/LAN 10GE SFP+ ports provide high-bandwidth aggregation connectivity.
• Up to 10WAN Ports: Fiber and RJ45 WAN portswith load balance raise the utilization rate of multi-line broadband 1.
• Highly Secure VPN: Enterprise-standard SSL/ IPSec / PPTP / L2TP VPN & OpenVPN / L2TP over IPSec VPN are ideal for use across multiple branches andfor WFH.
• Abundant Security Features: PowerfulFirewall, DoS defense, IP/MAC/URL filtering, and IP-MAC Binding, and One-Click ALG Activation provideworld-class security.
• Learn more about Omada Cloud SDN>?
• Learn more about TP-Link10G Multi-Gig technology >

HARDWARE FEATURES

• Standards and Protocols :• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q
  • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
• Interface :• 2x 10GE SFP+ Ports (1 WAN, 1 WAN/LAN)
  • 1x 1GE SFP WAN/LAN Ports
  • 8x 1GE RJ45 WAN/LAN Ports
  • 1x RJ45 Console Ports
  • 2x USB Ports (Connecting 4G/3G Modem as WAN Backup)
• Network Media :• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m)
  EIA/TIA-568 100? STP (Max 100 m)
  • 100BASE-TX: UTP category 5, 5e cable (Max 100 m)
  EIA/TIA-568 100? STP (Max 100 m)
  • 1000BASE-T: UTP category 5e, 6 cable (Max 100 m)
• Fan Quantity :2
• Button :Reset Button
• Power Supply :Redundant Dual Power Supplies (100-240 VAC, 50/60 Hz)
• PoE Budget :-
• Flash :4MB SPI NOR + 256 MB NAND
• DRAM :4 GB DDR4
• LED :PWR, SYS, WAN, LAN, USB, FAN
• Dimensions ( W x D x H ) :17.3 x 8.7 x 1.7 in (440 x 220 x 44 mm)
• Protection :4 kV surge protection
• Enclosure :Steel
• Mounting :Rack Mountable
• Max Power Consumption :• 26.36 W (with USB 3.0 connected)
  • 19.12 W (without USB 3.0 connected)

PERFORMANCE

• Concurrent Session :2,300,000
• New Sessions /Second :20,000
• NAT (Static IP) :• Upload: 9445.82 Mbps
  • Download: 9449.26 Mbps
• NAT(DHCP) :• Upload: 9426.83 Mbps
  • Download: 9426.20 Mbps
• NAT(PPPoE) :• Upload: 9413.96 Mbps
  • Download: 9102.01 Mbps
• NAT (L2TP) :• Upload: 4230.62 Mbps
  • Download: 4169.53 Mbps
• NAT (PPTP) :• Upload: 3933.86 Mbps
  • Download: 3821.97 Mbps
• 64 Byte Packet Forwarding Rate :• Upload: 1080 Mbps
  • Download: 1030 Mbps
• IPsec VPN Throughput :• SHA1-AES256: 2140.45 Mbps
  • SHA2-AES256: 2080.20 Mbps
• OpenVPN :1665.64 Mbps
• L2TP VPN Throughput :• Unencrypted: 5013.50 Mbps
  • Encrypted: 2274.74 Mbps
• PPTP VPN Throughput :• Unencrypted: 3933.86 Mbps
  • Encrypted: 3821.97Mbps
• SSL VPN Throughput :1511.10 Mbps
• 66 Byte Packet forwarding rate :-
• 1,518 Byte Packet forwarding rate :• Upload: 9970 Mbps
  • Download: 9970 Mbps

BASIC FUNCTIONS

• WAN Connection Type :• Static/Dynamic IP
  • PPPoE
  • PPTP
  • L2TP
  • 6to4 Tunnel
  • Pass-Through
  • Mobile Broadband: 4G/3G modem for backup via USB port
• MAC Clone :Modify WAN/LAN MAC Address*⁴
• DHCP :• DHCP Server/Client
  • DHCP Address Reservation
  • Multi-net DHCP
  • Multi-IP Interfaces
• IPv6 :WAN Connection
• VLAN :802.1Q VLAN
• IPTV :IGMP v2/v3 Proxy

ADVANCED FUNCTIONS

• ACL :IP/Port/Protocol/Domain Name Filtering
• Advanced Routing :• Static Routing
  • Policy Routing
• Bandwidth Control :• IP/Port-based Bandwidth Control
  • Guarantee & Limited Bandwidth
• Load Balance :• Intelligent Load Balance
  • Application Optimized Routing
  • Link Backup (Timing*⁵, Failover)
  • Online Detection
• NAT :• One-to-One NAT*⁵
  • Multi-Net NAT
  • Virtual Server
  • Port Triggering*⁵
  • NAT-DMZ
  • FTP/H.323/SIP/IPSec/PPTP ALG
  • UPnP
• Security :• SPI Firewall
  • VPN Passthrough
  • FTP/H.323/PPTP/SIP/IPsec ALG
  • DoS Defence, Ping of Death
  • Local Management
• Session Limit :IP-based Session Limit

VPN

• SSL VPN :• SSL VPN Server
  • SSL VPN Client
  • 500 OpenVPN Tunnels
• IPsec VPN :• 300 IPSec VPN Tunnels
  • LAN-to-LAN, Client-to-LAN
  • Main, Aggressive Negotiation Mode
  • DES, 3DES, SHA1, SHA2, AES128, AES192, AES256 Encryption Algorithm
  • IKE v1/v2
  • MD5, SHA1 Authentication Algorithm
  • NAT Traversal (NAT-T)
  • Dead Peer Detection (DPD)
  • Perfect Forward Secrecy (PFS)
• PPTP VPN :• PPTP VPN Server
  • PPTP VPN Client (32)*⁶
  • 300 Tunnels (Shared with L2TP)
  • PPTP with MPPE Encryption
• L2TP VPN :• L2TP VPN Server
  • L2TP VPN Client (32)*⁶
  • 300 Tunnels (Shared with PPTP)
  • L2TP over IPSec
• OpenVPN :• OpenVPN Server
  • OpenVPN Client (10)*⁶
  • 110 OpenVPN Tunnels

SECURITY

• Filtering :• WEB Group Filtering*⁵
  • URL Filtering
  • Web Security*⁵
• ARP Inspection :• Sending GARP Packets*⁵
  • ARP Scanning*⁵
  • IP-MAC Binding*⁵
• Attack Defense :• TCP/UDP/ICMP Flood Defense
  • Block TCP Scan (Stealth FIN/Xmas/Null)
  • Block Ping from WAN
• Access Control :Source/Destination IP Based Access Control

AUTHENTICATION

• Web Authentication :• No Authentication
  • Simple Password*²
  • Hotspot?Local User / Voucher*²/ SMS*²/ Radius*²?
  • External Radius Sever
  • External Portal Sever*²
  • Facebook Check-In*²
  • Instagram Follow*²

MANAGEMENT

• Omada App :Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
• Centralized Management :• Omada Hardware Controller (OC300)
  • Omada Hardware Controller (OC200)
  • Omada Software Controller
  • Omada Cloud-Based Controller
• Cloud Access :Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
• Service :Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
• Maintenance :• Web Management Interface
  • Remote Management
  • Export & Import Configuration
  • SNMP v1/v2c/v3
  • Diagnostics (Ping & Traceroute)*⁵
  • NTP Synchronize*⁵
  • Syslog Support
• Zero-Touch Provisioning :Yes. Requiring the use of Omada Cloud-Based Controller.
• Management Features :• Automatic Device Discovery
  • Intelligent Network Monitoring
  • Abnormal Event Warnings
  • Unified Configuration
  • Reboot Schedule
  • Captive Portal Configuration

OTHERS

• Certification :CE, FCC, RoHS
• Package Contents :• Omada 10G Multi-WAN Security Gateway ER8411
  • Power Cord
  • Rack-Mount Kit
  • Quick Installation Guide
