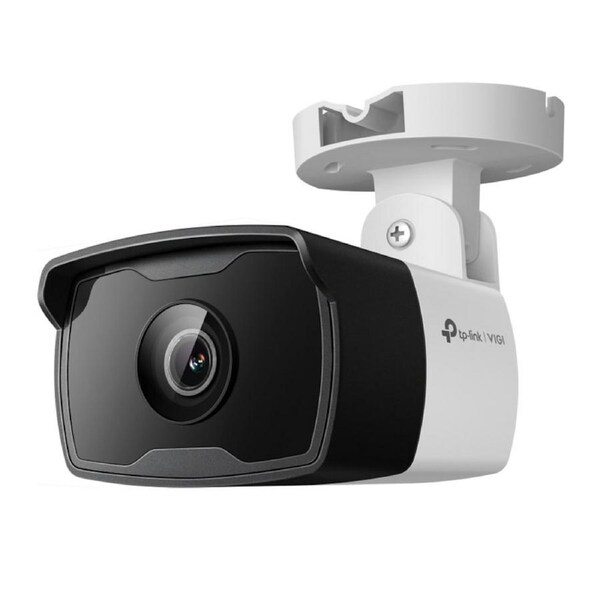

TP-Link VIGI C340I(4mm) VIGI 4MP Outdoor IR Bullet Network Camera, 4mm Lens

TP-Link VIGI C340I, VIGI 4MP Outdoor IR Bullet Network Camera

• 4MP Super-High Definition: The VIGI C340I camera comes with 4MP - more than enough pixels to pick up some of the more discrete details.
• Human & Vehicle Classification: Distinguisheshumans and vehicles from other objects, so you receive more accurate event notifications.
• Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
• Smart Video Enhancement: VIGI's s professional technologies process videos to greatly improve their quality which is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
• H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
• Waterproof: Reliable IP67 for stable outdoor performance.
• PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
• 2.8/4/6 mm Lens: Whether you need a wide-angle lens to cover enclosed spaces or a higher millimetre lens for longer distances in open spaces, C340I comes with three different lens types to better suit your security needs.
• Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager.

CAMERA

• Image Sensor :1/3" Progressive Scan CMOS
• Shutter Speed :1/3 to 1/10000 s
• Slow Shutter :Yes
• Minimum Illumination :Color: 0.1 Lux; 0 Lux with IR
• Day/Night Mechanism :IR Cut Filter
• Day/Night Switch :Day/Night/Auto/Schedule-Switch
• Lens :2.8 mm/ 4 mm/ 6 mm
• Aperture :2.8 mm: F2.2
  4 mm: F2.2
  6 mm: F2.0
• Lens Mount :M12
• Viewing Angle :2.8mm: 88.8°/48.9°/106.5°(H/V/D)
  4mm: 75.1°/41.5°/88.7°(H/V/D)
  6mm: 47.7°/26.5°/56°(H/V/D)
• IR Working Distance :30m
• Digital Noise Reduction :3D DNR
• WDR :DWDR
• Weatherproof Rating :IP67

LENS

• Type :Fixed Focal Lens
• Focal Length :2.8 mm/4 mm/6 mm
• Aperture :2.8 mm: F2. 2
  4 mm: F2.0
  6 mm: F2.0
• FOV :2.8 mm:
  Horizontal FOV: 88.8°, Vertical FOV: 48.9°, Diagonal FOV: 106.5°
  4 mm:
  Horizontal FOV: 75.1°, Vertical FOV: 41.5°, Diagonal FOV: 88.7°
  6 mm:
  Horizontal FOV: 47.7°, Vertical FOV: 26.5°, Diagonal FOV: 56°
• Lens Mount :M12
• DORI Distance :2.8 mm:
  Detect: 60 m (197 ft)
  Observe: 25 m (82 ft)
  Recognize: 12 m (39 ft)
  Identify: 6 m (20 ft)
  4 mm:
  Detect: 80 m (262 ft)
  Observe: 33 m (109 ft)
  Recognize: 16 m (52 ft)
  Identify: 8 m (26 ft)
  6 mm:
  Detect: 120 m (394 ft)
  Observe: 50 m (164 ft)
  Recognize: 24 m (79 ft)
  Identify: 12 m (39 ft)

VIDEO

• Max. Resolution :2560 x 1440
• Main Stream :Frame Rate?
  50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
  60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
  Resolution:
  2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
  Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
• Sub-Stream :Frame Rate?
  50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
  60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
  Resolution:
  640x480, 352x288, 320x240
  Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
• Bit Rate Control :CBR, VBR
• Video Compression :Main Stream: H.265+/H.265/H.264+/H.264
  Sub-Stream: H.265/H.264
• H.264 Type :Main Profile/High Profile
• H.264+ :Main Stream Supported
• H.265 Type :Main Profile
• H.265+ :Main Stream Supported
• Video Bit Rate :Main Stream: 256 Kbps to 4 Mbps
  Sub-Stream: 64 Kbps to 512 Kbps

ILLUMINATOR

• IR LED :Quantity: 2
  Range: 30m
  Wavelength: 850nm
• White LED :N/A
• Illuminator On/Off Control :Auto/Scheduled/Always on/Always off

Angle Adjustment (Manual)

• Range :Pan: -90° to 90°
  Tilt: -90° to 90°


• Image Settings :Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)
• Image Enhancement :BLC/3D DNR/HLC/SmartIR
• Wide Dynamic Range :DWDR
• SNR :? 52 dB
• Image Parameters Switch :Yes
• Privacy Mask :Up to 4 Masks
• ROI :1 Region
• OSD Setting :Yes

AUDIO

• Audio Communication :N/A
• Audio Input :N/A
• Audio Output :N/A
• Audio Compression :N/A
• Audio Sampling Rate :N/A
• Environment Noise Filtering :N/A
• Audio Bit Rate :N/A

NETWORK

• Security :Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
• Network Storage :NAS (NFS, SMB/ CIFS)
• Protocol :TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,
  RTSP, NTP, UPnP UDP, SSL/TLS
• API :ONVIF
• Simultaneous Live View :3 Main Streams & 3 Sub-Streams
• Client :VIGI App, VIGI Security Manager, VIGI NVR, Web
• Web Browser :Google Chrome® 57 and above
  Firefox® 52 and above
  Safari® 11 and above
  Microsoft® Edge 91 and above
• Cloud :Yes
• ONVIF :Yes

INTERFACES

• Network Interface :1 RJ45 10/100M Self-Adaptive Ethernet Port
• Alarm :N/A
• Reset Button :N/A
• Power :DC Power Port
• Button :-
• Video Output :-
• On-board Storage :N/A
• Built-in Microphone :N/A
• Built-in Speaker :N/A
• Audio :N/A

ALARM AND EVENT MANAGEMENT

• Smart Event :Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
• Basic Event :Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
• Alarm Linkage :Message Push
• Linkage Method :N/A
