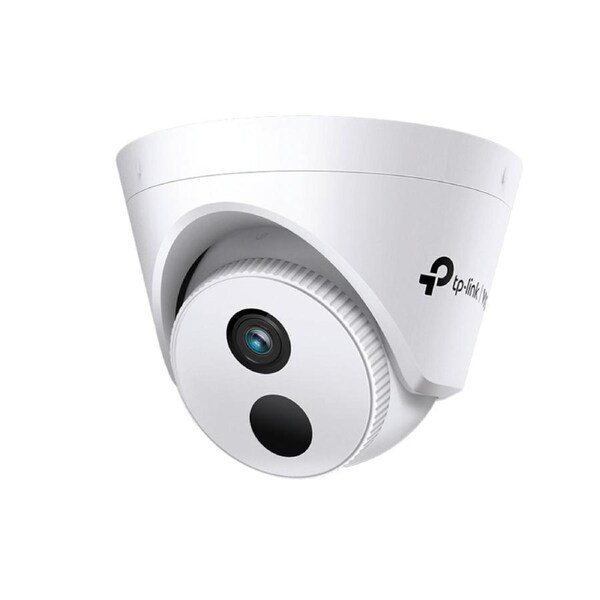

TP-Link VIGI C440I(4mm) VIGI 4MP IR Turret Network Camera, 4mm Lens

TP-Link VIGI C440I, VIGI 4MP IR Turret Network Camera

• 4MP Super-High Definition: The VIGI C440I camera comes with 4MP - more than enough pixels to pick up some of the more discrete details.
• Human & Vehicle Classification: Distinguisheshumans and vehicles from other objects, so you receive more accurate event notifications.
• Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
• H.265+: Without extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
• Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve the quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
• Corridor Mode:Allows you to change the image aspect ratio from 16:9 to 9:16, andhelps to monitor long and narrow areas.
• 12V DC/PoE:Two types of power supply give you more convenience and make your wiring remarkably easy.
• 4 mm Lens: Whether you need a wide-angle lens to cover enclosed spaces or a higher millimetre lens for longer distances in open spaces, C440I comes with twodifferent lens types to better suit your security needs.
• Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager.

CAMERA

• Image Sensor :1/3" Progressive Scan CMOS
• Shutter Speed :1/3 to 1/10000 s
• Slow Shutter :Yes
• Minimum Illumination :Color: 0.1 Lux; 0 Lux with IR
• Day/Night Mechanism :IR Cut Filter
• Day/Night Switch :Unified/ Scheduled/ Auto
• Lens :2.8 mm/ 4 mm
• Aperture :2.8 mm: F2.2
  4 mm: F2.2
• Lens Mount :M12
• Viewing Angle :2.8mm: 88.8°/48.9°/106.5°(H/V/D)
  4mm: 75.1°/41.5°/88.7°(H/V/D)
• IR Working Distance :30m
• Digital Noise Reduction :3D DNR
• WDR :DWDR

LENS

• Type :Fixed Focal Lens
• Focal Length :2.8/4 mm
• Aperture :2.8 mm: F2.2
  4 mm: F2.2
• FOV :2.8mm:
  Horizontal FOV: 88.8°, Vertical FOV: 48.9°, Diagonal FOV: 106.5°
  4mm:
  Horizontal FOV: 75.1°, Vertical FOV: 41.5°, Diagonal FOV: 88.7°
• Lens Mount :M12
• DORI Distance :2.8 mm
  Detect:60 m (197 ft)
  Observe: 25 m (82 ft)
  Recognize: 12 m (39 ft)
  Identify: 6 m (20 ft)
  4 mm
  Detect: 80 m (262 ft)
  Observe:33 m (109 ft)
  Recognize: 16 m (52 ft)
  Identify: 8 m (26 ft)

VIDEO

• Max. Resolution :2560 x 1440
• Main Stream :Frame Rate:
  50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
  60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
  Resolution:
  2560x1440,2304x1296, 2048x1280, 1920x1080, 1280x720
  Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
• Sub-Stream :Frame Rate:
  50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
  60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
  Resolution:
  640x480,352x288, 320x240
  Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
• Bit Rate Control :CBR, VBR
• Video Compression :Main Stream: H.265+/H.265/H.264+/H.264
  Sub-Stream: H.265/H.264
• H.264 Type :Main Profile/High Profile
• H.264+ :Main Stream Supported
• H.265 Type :Main Profile
• H.265+ :Main Stream Supported
• Video Bit Rate :Main Stream: 256 Kbps to 4 Mbps
  Sub-Stream: 64 Kbps to 512 Kbps

ILLUMINATOR

• IR LED :Quantity: 1
  Range: 30m
  Wavelength: 850nm
• White LED :N/A
• Illuminator On/Off Control :Auto/Scheduled/Always on/Always off

Angle Adjustment (Manual)

• Range :Pan: 0° to 360°
  Tilt: 0° to 85°
  Rotate: 0° to 360°


• Image Settings :Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)
• Image Enhancement :BLC/3D DNR/HLC/SmartIR
• Wide Dynamic Range :WDR
• SNR :? 52 dB
• Image Parameters Switch :Yes
• Privacy Mask :Up to 4 Masks
• ROI :1 Region
• OSD Setting :Yes

AUDIO

• Audio Communication :N/A
• Audio Input :N/A
• Audio Output :N/A
• Audio Compression :N/A
• Audio Sampling Rate :N/A
• Environment Noise Filtering :N/A
• Audio Bit Rate :N/A

NETWORK

• Security :Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
• Network Storage :Yes
• Protocol :TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,
  RTSP, NTP, UPnP UDP, SSL/TLS
• API :ONVIF
• Simultaneous Live View :3 Main Streams & 3 Sub-Streams
• Client :VIGI App, VIGI Security Manager, VIGI NVR, Web
• Web Browser :Google Chrome® 57 and above
  Firefox® 52 and above
  Safari® 11 and above
  Microsoft® Edge 91 and above
• Cloud :Yes

INTERFACES

• Network Interface :1 RJ45 10/100M Self-Adaptive Ethernet Port
• Alarm :N/A
• Reset Button :N/A
• Power :DC Power Port
• Button :-
• Video Output :-
• On-board Storage :N/A
• Built-in Microphone :N/A
• Built-in Speaker :N/A
• Audio :N/A

ALARM AND EVENT MANAGEMENT

• Smart Event :Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
• Basic Event :Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
• Alarm Linkage :Message Push
• Linkage Method :N/A
• Output Notification :Message Push

GENERAL

• Package Contents :VIGI Network Camera
  Quick Start Guide
  Waterproof Cable Attachments
  Mounting Accessories
