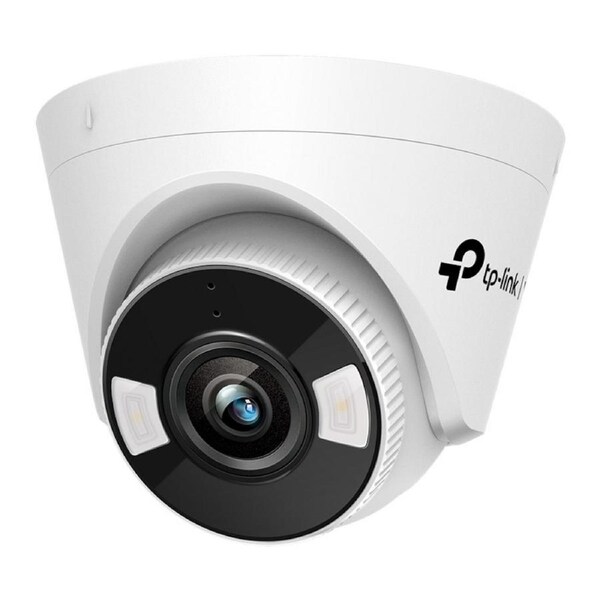

TP-Link VIGI C450(2.8mm) VIGI 5MP Full-Colour Turret Network Camera

TP-Link VIGI C450, VIGI 5MP Full-Colour Turret Network Camera

• 5MPSuper-HighDefinition: The camera comes with 5MP-more than enough pixels to pick up some of the more discrete details.
• 24h Full-Colour:Obtain 24-hour colour details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
• Human & Vehicle Classification: Distinguisheshumans and vehicles from other objects, so you receive more accurate event notifications.
• Smart Detection: Actively detects abnormal events like area intrusion and line-crossing, sending notifications to you instantly.
• People & Vehicle Analytics:Quickly find peopleandvehicles of interest using a series of attributes,allowing you to improve search efficiency§.
• ActiveDefense:Warn potential intruders instantly with sound and light when abnormal events.
• Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere.
• Corridor Mode:Allows you to change the image aspect ratio from 16:9 to 9:16, andhelps to monitor long and narrow areas.
• H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
• Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve their quality which is vital to your monitoring, including Smart IR, True WDR, 3D DNR, and Night Vision.
• PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
• Flexible Management and Storage: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager.Local storage is available for each method, as well as onboard storage with an SD card slot (up to 256 GB).

CAMERA

• Image Sensor :1/2.7" Progressive Scan CMOS
• Shutter Speed :1/3 to 1/10000 s
• Slow Shutter :Yes
• Minimum Illumination :0.005 Lux; 0 Lux with IR/white light
• Day/Night Mechanism :IR Cut Filter
• Day/Night Switch :Day/Night/Auto/Schedule-Switch

LENS

• Type :Fixed Focal Lens
• Focal Length :2.8/4 mm
• Aperture :2.8 mm: F1.6
  4 mm: F1.6
• FOV :2.8mm:
  Horizontal FOV: 109°, Vertical FOV: 57°, Diagonal FOV: 128°
  4mm:
  Horizontal FOV: 90°, Vertical FOV: 48°, Diagonal FOV: 107°
• Lens Mount :M12*P 0.5
• DORI Distance :2.8 mm
  Detect: 64 m (209 ft)
  Observe: 27 m (87 ft)
  Recognize: 13 m (42 ft)
  Identify: 6 m (21 ft)
  4 mm
  Detect: 80 m (262 ft)
  Observe: 33 m (109 ft)
  Recognize: 16 m (52 ft)
  Identify: 8 m (26 ft)

VIDEO

• Max. Resolution :2880 X 1620
• Main Stream :Frame Rate?
  50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
  60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
  Resolution:
  2880x1620,2688x1520, 2304x1296, 2048x1280, 1920x1080,1280x720
  Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
• Sub-Stream :Frame Rate?
  50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
  60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
  Resolution:
  704x576,640x480, 352x288, 320x240
  Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
• Bit Rate Control :CBR, VBR
• Video Compression :Main Stream: H.265+/H.265/H.264+/H.264
  Sub-Stream: H.265/H.264
• H.264 Type :Main Profile/High Profile
• H.264+ :Main Stream Supported
• H.265 Type :Main Profile
• H.265+ :Main Stream Supported
• Video Bit Rate :Main Stream: 256 Kbps to 6 Mbps
  Sub-Stream: 64 Kbps to 512 Kbps

ILLUMINATOR

• IR LED :Quantity: 2
  Range: 30m
  Wavelength: 850nm
• White LED :Quantity: 2
  Range: 30m
• Illuminator On/Off Control :Auto/Scheduled/Always on/Always off

Angle Adjustment (Manual)

• Range :Pan: 0° to 360°, Tilt: 0° to 85°


• Image Settings :Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
• Image Enhancement :BLC/3D DNR/HLC/SmartIR
• Wide Dynamic Range :120 dB
• SNR :? 52 dB
• Image Parameters Switch :Yes
• Privacy Mask :Up to 4 Masks
• ROI :1 Region
• OSD Setting :Yes

AUDIO

• Audio Communication :Yes
• Audio Input :Yes
• Audio Output :Yes
• Audio Compression :Yes
• Audio Sampling Rate :8KHz
• Environment Noise Filtering :Yes
• Audio Bit Rate :64 Kbps(G.711 alaw)

NETWORK

• Security :Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
• Protocol :TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
• Network Storage :NAS (NFS, SMB/ CIFS)
• API :Open Network Video Interface (Profile S)
• Simultaneous Live View :3 Main Streams & 3 Sub-Streams
• Client :VIGI App, VIGI Security Manager, VIGI NVR, Web
• Web Browser :Google Chrome® 57 and above
  Firefox® 52 and above
  Safari® 11 and above
  Microsoft® Edge 91 and above
• Cloud :Yes
• ONVIF :Yes

INTERFACES

• Network Interface :1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
• Alarm :N/A
• Reset Button :Yes
• Power :DC Power Port
• On-board Storage :Built-In Memory Card Slot, Support MicroSD Card, up to 256 GB
• Built-in Microphone :Yes; Records Anything Going on within a 15-ft Radius of the Camera
• Built-in Speaker :Yes
• Audio :N/A

ALARM AND EVENT MANAGEMENT

• Smart Event :Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Loitering Detection
• Basic Event :Motion Detection, Video Tampering Detection, Exception ( Illegal Login), Scene Change Detection
• Alarm Linkage :Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
• Linkage Method :N/A
• Output Notification :Message Push

Deep Learning Function

• Multi-Target-Type Detection :Supports Simultaneous Detection and Capture of Human Body and Vehicle
• Face Capture :N/A
• Face Comparison :N/A

GENERAL

Shipping Policy: Please note: We generally do not ship to PO BOX or Parcel locker. Please concoct us for special arrangement before you place an order for these addresses. All items will be shipped to buyer's address. If you are in a Suburb/Town, please put the Suburb/Town name on the City line directly. Please double-check your shipping address when you make the payment. Buyer is responsible for any extra postage cost caused by incorrect shipping address. All items will be shipped within 24-72 business hours upon receipt of payment. In most cases, delivery takes around 1-7 business days, it's highly depended on the efficiency of the shipping carrier. Estimated delivery date is calculated by carrier's system, delivery times may vary, especially during peak periods.

Address Changes: If you enter the incorrect name or shipping details and the item is returned to us, you will be subject to a RTS(return to sender) fee if we are unable to change the details before dispatch, and well as a reshipping fee (dependent on the items weight). We are not responsible for these changes if there is a mistake entered by the buyer. This fee is typically anticipated to be $10.50 for RTS + stander postage for re-shipment, regardless of Sale value

30 DAY MONEY BACK RETURN POLICY

If you are unhappy with your item for whatever reason, simply return it to us for a replacement, or refund.

The item must be returned in its original packaging/condition for change of mind purchases, please note a 20% deduction fee applies to any change of mind returns, minimum $10. The buyer is liable for the return postage. This also applies to orders cancelled when the item has already been dispatched from our warehouse.

Please note we only accept change of mind returns if it is returned in a saleable condition with original packaging. By saleable condition we mean that the item hasn’t been opened with factory sealed, is still in its original packaging and all manuals, packaging and accessories are included. If the item is missing the original packaging, or in the original packaging but damaged, or unsaleable condition, then unfortunately we won't accept this return. All items we sell come with a unique serial number. The serial number of the returned item must match the item we sell.

DOA Warranty Claims Policy
For items Dead on Arrival (DOA), Damaged in Transit, Faulty, or Delivered Incorrectly, please immediately contact our Customer Service team. We will assist you in resolving any concerns by possibly having the product returned in suitable packaging (preferably its original packaging).

Please Note:
A replacement or refund will be issued after the faulty item has been returned to us. Assessment may apply in some circumstances before a refund or replacement can be issued.

Standard Warranty Claims Policy

Items found to be faulty outside of the DOA period will be subject to standard warranty terms. ALL of our products are supported by a minimum 12 month return to base warranty. This warranty covers all manufacturer faults with the product. Please contact the product's manufacturer for troubleshooting first and more details about warranty terms.

Please note:
The customer will be responsible for any return postage costs.
The processing time is generally 2-4 weeks from when we receive the faulty unit.
The Warranty claim may result in a repair, new or refurbished replacement, or refund depending on manufacturer approval.
The customer should provide their invoice number and item's serial number when contacting us.
