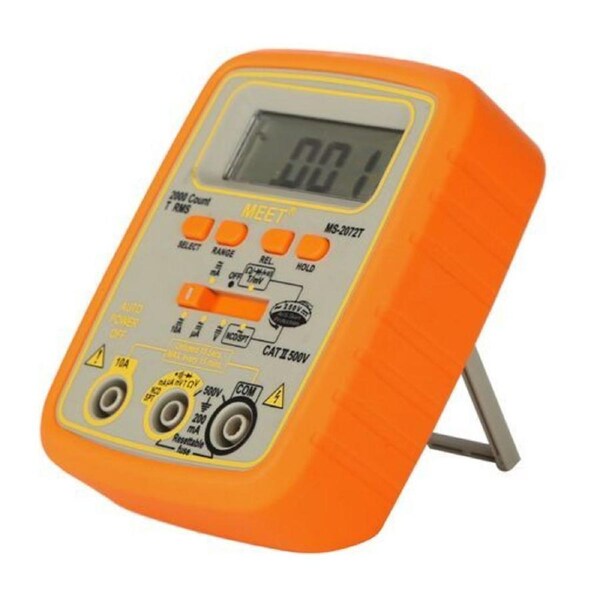

Palm sized digital multimeter and detector can be use to measure AC and DC voltage (Up to 300V max.), resistance (Up to 20MΩ), diode test, continuity check. True RMS measurement. Plus temperature (requires 'K' type Probe). 2000 counts LCD. NCD; non-contact AC detection Numerical display AC signal strength. SPT: single probe test to safely identify live/hot (>25V), neutral and ground. Compact for the tool box. Includes 2x test leads and 2x AAA batteries. You can also get the optional temperature probe (TP207). Size: 100x80x33mm.
- True RMS up to 500Vac/dc
- Super Compact Sized 100x80x33mm
- Cordless AC voltage detector (metered)
- Single Probe Test identify Live/Hot, ground, etc.
- AC and DC Voltage measurement
- AC and DC Current µA to 10A max
- Auto or Manual range selection
- Ohm (0-20MΩ) and Diode test
- Relative measurement and hold
- 2000 count 3.5 digit LCD display
- Power switch with Auto-Off
- True RMS
2000 counts (3-1/2 digit)
Auto / Manual 'V' (AC / DC) (500V)
μA/mA/10A (AC / DC) current
Auto / manual resistor measurement : 0 20MΩ (approx.)
Continuity check : <50Ω Beep
Diode check : < 2.0 V
'NCD' Non-Contact AC Voltage Detector (audible and numerical display) > 25V (AC)
'SPT' Single Probe Test AC Voltage (Audible and numerical display) > 25V : Identify'Live/Hot'and 'Neutral'/Ghost wire/Voltage difference/Ground/Earthing connection
Input impedance 10MΩ (DC)
Software calibrated
-' OL ' over range display
Auto power off : (5 mins) or always 'ON'
Freeze / Hold reading
Relative reading
Anti Burn Protection (ABP) on full range and up to 250V (AC / DC) (NOT at CURRENT range)
Resettable fuse, 200mA
Lοw battery indication (2.6V approx.)
Battery powered : 2xAAA (R03/LR03)
Dimension (LxWxD) : 100x80x33mm
