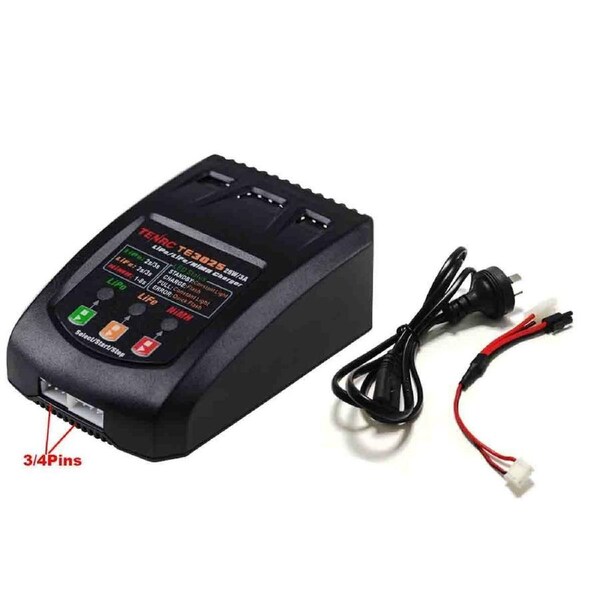

Fast RC Car Battery Charger NiMH LiPO Tamiya + Mini Tamiya Plug 6V 7.2V TE3025
Description:
, 100-240V AC balance charger. This unit is simple to use but its operation does require some knowledge on the part
of the user. -Please read this entire operating manual completely and attentively before using this product, as it covers a wide range of information on operating and safety.
TE3025 Charger is an economic, high-quality 100-240V AC balance charger, designed for charging, LiPo, and LiFe batteries from 2/3 cells in balance mode.
NiMH batteries from 1s-8s cells in the 3s cells balance socket. The circuit power is 25W and the max charge current can reach 3A. TE3025 charger can checkbatteries capacity and charging with 1C current
CHARGE PROCEDURES:
- TE3025 comes with a built-in power supply. You can connect the AC power cord to the AC socket(100-240V AC) directly
- Note: This charger can charge LiPo/ LiFe and NiMH batteries in balance mode ONLY. In this case you must use a balance board to connect the charger with thebattery
Please refer to the following steps to charge the battery,
1)Insert the AC power cord into the charger.
2)Insert the AC cord into a wall socket(100-240V). All LEDs will be lighted
3)Select the battery type LiPo/LiFe/NiMH
4)Connect the LiPo/LiFe/NIMH battery's balance wire to the chargers balance socket and select the corresponding button to start charging
5)The charger starts charging The charge status LED uses the wire to connect 3 cells balance socket will flash.
6)When the battery is fully charged, the charge status LED will glow constant green/orange/red.
LED STATUS:
Charging
Lipo: Green LED flash
Life: Orange LED flash
NINH: Red LED flash
Full
Lipo: Green LED constant
Life: Orange LED constant
NINH: Red LED constant
SPECIFICATION:
AC Input: 100-240V
Battery Type: LiPo/LiFe/NiMH
LiPo/LiFe: 2S/3s Lipo/Life Battery
NiMH: 1-8s (1.2v, 2.4v,3.6v, 4.8v, 6.0v, 7.2v, 8.4v, 9.6v) NiMH batteries
Charge Current: 3A max
Circuit Power: 25W
Current Drain for Balancing: 200mA
Dimension: 92x67X35mm
Weight: 105g
Standard Tamiya connector + Mini Tamiya connector cable included
Package Include:
1x TE3025 A3PRO RC CAR BATTERY BALANCE CHARGER
