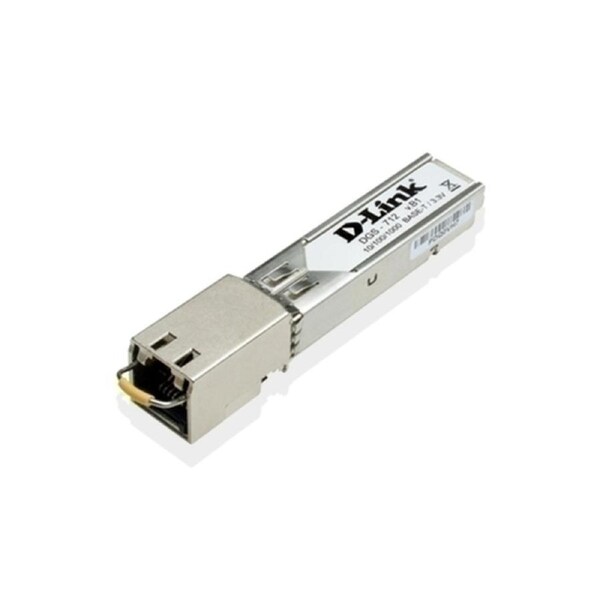

D-Link DGS-712 Gigabit SFP to RJ45 Transceiver
D-Link DGS-712 Gigabit SFP to RJ45 Transceiver
Sold and shipped by PC Depot Pty Ltd
Please log in to see shipping fee and estimated arrival
1000Base-TX RJ45 SFP Transceiver - 100m
Delivery varies by location, please see the expected timeframe to receive your product below:
- Metro: 1-2 business days
- Regional: 2-6 business days
Small items can be delivered to PO Box addresses or Parcel Lockers.
Change of Mind Returns:
Most products come with a 30 day change of mind policy. Please contact us via your MyDeal Account for return approval.
Please Note:
- All unwanted items must be unopened, undamaged and in saleable condition with no writing, labels or sticky tape on package boxes otherwise the request may be rejected
- Postage is paid by the customer
- We do not accept responsibility for return items until they reach our warehouse, so we strongly recommend using tracking and/or insurance for the delivery
- Fees may apply
Warranty Claims:
Most of our products are supported by a 12 month warranty. This warranty covers all manufacturer faults with the product. Some of our products may have a different warranty period, please check the product description for this. Should an issue arise with your order, please contact us via your MyDeal Account to raise a warranty claim.
Specifications:
- Standard: IEEE 802.3ab 1000BASE-T Gigabit Ethernet
- Transceiver Type: SFP (Small Form Pluggable)
- Connector: RJ-45
- Auto MDI/MDIX: Automatic crossover detection enabled External crossover cable not required
- Data Rate: 1000 Mbps (IEEE 802.3 compatible) 10/100/1000 BASE-T operation requires the host system to have an SGMII interface with no clocks. With a SERDES interface this transceiver will operate at 1000BASE-T only
- Cable Type: Cat. 5 twisted-pair cable
- Maximum Cable Distance Coverage: 100 meters
- Supply Current: 350mA (typical) 400mA (maximum) 1.3W max power over full range of voltage and temperature *
- Input Voltage: 3.1V (minimum) 3.3V (typical) 3.5V (maximum) Referenced to GND
- Maximum Voltage: 4V
- Surge Current: 30mA Hot-plug above steady state current *
- Operating Temperature: 0 to 85 C
- Storage Temperature: -40 to 85 C
Features
- Up to 1.25Gb/s bi-directional data links
- Hot-pluggable SFP footprint
- Extended case temperature range
- Fully metallic enclosure for low EMI
- Low power dissipation (typical 1.2 watts)
- RJ-45 connector assembly
- Access to physical layer IC via 2-wire serial bus
- 10/100/1000 BASE-T operation in host systems with
- SGMII interface
- Gigabit Ethernet over Cat. 5 cable
- +3.3V electrical power interface
