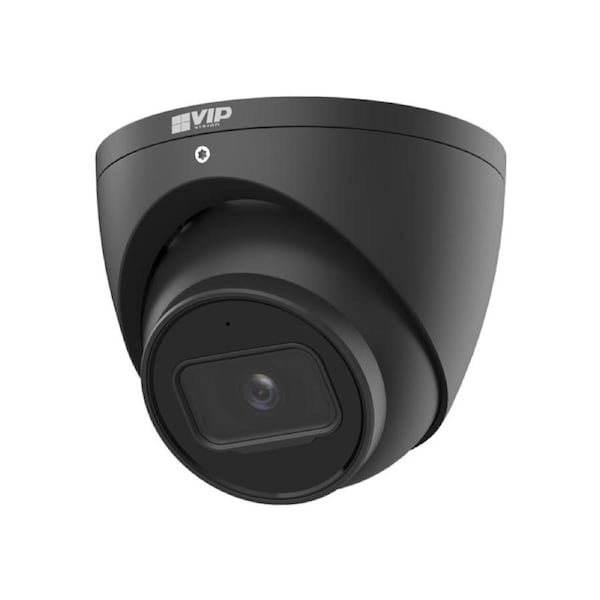

VIP Vision Professional AI Series 6.0MP Fixed Turret Dome Camera Black

The Professional AI Series identifies people & vehicles using machine learning, to reduce false motion detection alerts and provide meaningful video event notifications in real-time. When used in conjunction with a VIP Vision NVR, person and vehicle events can be isolated in footage playback to improve surveillance efficiency.

Camera features:

• Stream up to 6.0MP (3072 x 1728) at 20fps
• 2.8mm fixed lens with 99° viewing angle
• H.265 encoding for efficient storage & streaming
• Up to 50m infrared range; true day/night (auto ICR)
• Built-in microphone and microSD slot for edge recording
• AI powered perimeter protection & smart motion detection (SMD+)
• Set up AI people and vehicle detection, receive alerts and search footage by people or vehicles
• Back/highlight compensation & true WDR (120dB)
• 3D digital noise reduction & auto white balance
• IP67 weather rated housing for outdoor use

Camera:

• Image Sensor: 1/2.7” 6.0MP Progressive Scan CMOS
• Effective Pixels: 3072 x 1728
• RAM / ROM: 512MB / 128MB
• Min Illumination: 0.005 Lux/F1.6 (Colour)
• S/N Ratio: >56dB
• Infrared System: 2 x Infrared LED, 50m range, Auto/manual on/off control

Lens:

• Lens / Iris: 2.8mm F1.6 Fixed Lens
• Field of View: Horizontal: 99°, Vertical: 53°
• Focus: Auto Focus / 0.9m Min. Focus Distance

DORI:

• Detect: (25px/m) 56m
• Observe: (63px/m) 22m
• Recognise: (125px/m) 11m
• Identify: (250px/m) 6m

Video:

• Resolution: 6.0MP (3072 x 1728) to CIF (352 x 288)
• Frame Rate:
  • Main: 6.0MP (1 ~ 20fps) / 4.0MP (1 ~ 25fps)
  • Sub: D1 (1 ~ 25fps)
  • Third: 1080p (1 ~ 25fps)
• Video Compression: H.265+ / H.265 / H.264+ / H.264 / H.264B / MJPEG
• Bit Rate: H.265: 19 ~ 8192Kbps / H.264: 32 ~ 8192Kbps
• Bit Rate Control: Constant bit rate (CBR) / Variable bit rate (VBR)
• Day/Night: Auto (ICR) / Color / B&W
• Lighting Compensation: BLC / HLC / WDR (120dB)
• White Balance: Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
• Gain Control: Auto / Manual
• Noise Reduction: 3D DNR
• Picture Control: Mirror / Flip (0°, 90°, 180°, 270°) (Support 90°/270° with 2.0MP resolution)

IVS:

• Video Functions: Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared
• AI Functions:
  • Smart Motion Detection (SMD+): People and vehicle detection using motion detection
  • Perimeter Protection: People and vehicle detection using tripwire or intrusion rules
• Intelligent search: Search people or vehicle detection events (SMD+, Perimeter Protection)

Network:

• Ethernet: RJ-45 (10/100Base-T)
• Protocol: IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP
• Streaming Method: Unicast / Multicast
• Max. User Access: 20 Users

Interface:

• Video Interface: N/A
• Audio Interface: Built-in Mic / Audio Compression - G.711a; G.711Mu; G726; AAC; G.723
• Alarm Interface: N/A
• RS485: N/A
• Edge Storage MicroSD Card: (up to 256GB) / NAS / FTP / SFTP
• Interoperability: ONVIF / P2P / CGI / Milestone / Genetec

Environmental:

• Power Supply: 12VDC / PoE (802.3af)
• Power Consumption: <7.2W
• Operating Conditions: -40°C ~ +60°C / ≤95% RH
• Ingress Protection: IP67
• Vandal Resistance: N/A
• Housing: Metal
• Pan/Tilt/Rotation: Pan: 0° ~ 360°, Tilt: 0° ~ 78°, Rotation: 0° ~ 360°
• Dimensions: Ø106mm x 93.6mm
• Net Weight: 0.55kg
