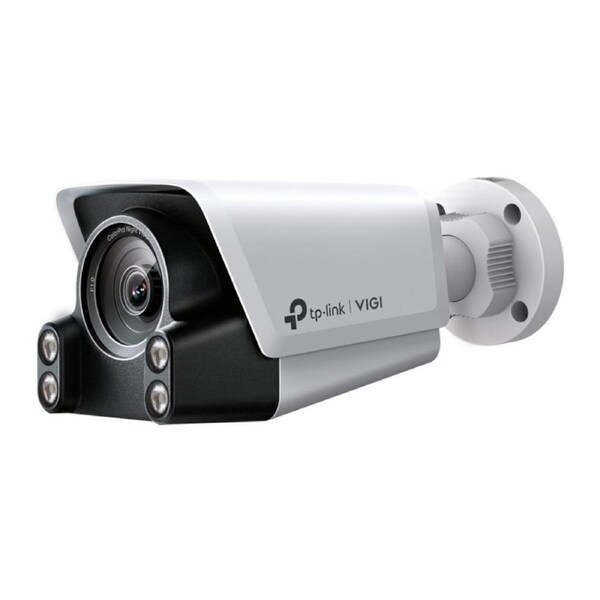

TP-Link VIGI C340S(4mm) VIGI 4MP Outdoor ColourPro Night Vision Bullet Network Camera

TP-Link VIGI C340S, VIGI 4MP Outdoor ColourPro Night Vision Bullet Network Camera

• Ultra-Low Light Colour Night Vision:Capture 24-hour 4MP high-quality and colourful video even in ultra low-lightconditions without any supplemental lights.
• Face Recognition:Efficiently enhances access management and attendance control while better protecting privacy§.
• People & Vehicle Analytics:Quickly find people and vehicles of interest using a series of attributes,allowing you to improve search efficiency§.
• Human & Vehicle Classification:Distinguisheshumans and vehicles from other objects, so you receive more accurate event notifications.
• Smart Detection:Actively detects abnormal events like area intrusion and line-crossing, sending notifications to you instantly.
• True WDR†:Enable crystal-clear images in high contrast scenes.
• Active Defense:Warn potential intruders instantly with sound and light when abnormal events.
• Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere.
• H.265+:Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
• IP67 Waterproof:Reliable IP67 for stable outdoor performance.
• Flexible Management and Storage: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager.Local storage is available for each method, as well as onboard storage with SD card slot† (up to 256GB).

CAMERA

• Image Sensor :1/1.8" Progressive Scan CMOS
• Shutter Speed :1/3 to 1/10000 s
• Slow Shutter :Yes
• Minimum Illumination :0.0005 Lux; 0 Lux with white light
• Day/Night Mechanism :NA
• Day/Night Switch :Unified/ Scheduled/ Auto

LENS

• Type :Fixed Focal Lens
• Focal Length :4 mm
• Aperture :F1.0
• FOV :4mm: Horizontal FOV: 95.2°, Vertical FOV: 50.6°, Diagonal FOV: 114.7°
• Lens Mount :M16*P 0.5
• DORI Distance :4 mm:
  Detect: 70 m (231 ft)
  Observe: 29 m (96 ft)
  Recognize: 14 m (46 ft)
  Identify: 7 m (23 ft)

Angle Adjustment (Manual)

• Range :Pan: -90° to 90°
  Tilt: -90° to 90°

ILLUMINATOR

• IR LED :N/A
• White LED :Quantity: 4
  Range: 30m
• Illuminator On/Off Control :Auto/Scheduled/Always on/Always off

VIDEO

• Max. Resolution :2688 x 1520
• Main Stream :Frame Rate?
  50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
  60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
  Resolution:
  2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
  Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
• Sub-Stream :Frame Rate?
  50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
  60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
  Resolution:
  705x576, 640x480, 352x288, 320x240
  Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
• Bit Rate Control :CBR, VBR
• Video Compression :Main Stream: H.265+/H.265/H.264+/H.264
  Sub-Stream: H.265/H.264
• H.264 Type :Main Profile/High Profile
• H.264+ :Main Stream Supported
• H.265 Type :Main Profile
• H.265+ :Main Stream Supported
• Video Bit Rate :Main Stream: 256 Kbps to 6 Mbps
  Sub-Stream: 64 Kbps to 512 Kbps


• Image Settings :Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, HLC Adjustable by Client Software, Rotation (90°/270°)
• Image Enhancement :BLC/3D DNR/HLC
• Wide Dynamic Range :120 dB
• SNR :? 52 dB
• Image Parameters Switch :Yes
• Privacy Mask :Up to 4 Masks
• ROI :1 Region
• OSD Setting :Yes

AUDIO

• Audio Communication :Two-Way Audio
• Audio Input :Yes
• Audio Output :Yes
• Audio Compression :Yes
• Audio Sampling Rate :8KHz
• Environment Noise Filtering :Yes
• Audio Bit Rate :64 Kbps(G.711 alaw)

NETWORK

• Protocol :TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
• ONVIF :Yes
• API :Open Network Video Interface (Profile S)
• Simultaneous Live View :3 Main Streams & 3 Sub-Streams
• Client :VIGI App, VIGI Security Manager, Web UI
• Web Browser :Google Chrome® 57 and above
  Firefox® 52 and above
  Safari® 11 and above
  Microsoft® Edge 91 and above
• Cloud :Yes
• Security :Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

ALARM AND EVENT MANAGEMENT

• Smart Event :Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Loitering Detection, Scene Change Detection
• Basic Event :Motion Detection, Video Tampering Detection, Exception (Illegal Login), Scene Change Detection
• Alarm Linkage :Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
• Linkage Method :N/A
• Output Notification :Message Push

Deep Learning Function

• People & Vehicle Analytics :Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.
• Face Capture :Support
• Face Comparison :Support

INTERFACES

• Network Interface :1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
• Alarm :N/A
• Reset Button :Yes
• Power :DC Power Port
• On-board Storage :Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB
• Built-in Microphone :Yes; Records Anything Going on within a 15-ft Radius of the Camera
• Built-in Speaker :Yes
• Audio :N/A

GENERAL

• Operating Temperature :-30-60 °C
• Storage Temperature :-40-60 °C
• Operating Humidity :95% or Less (Non-Condensing)
• Storage Humidity :95% or Less (Non-Condensing)
• Package Contents :
