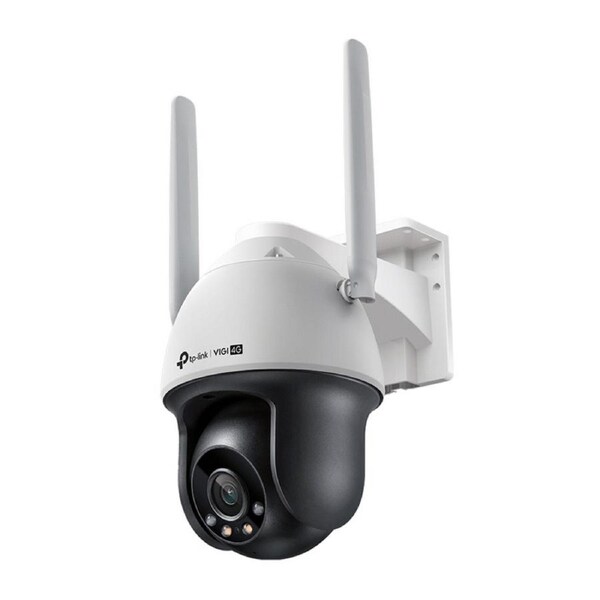

TP-Link VIGI C540-4G(4mm) VIGI 4MP Outdoor Full-Color 4G Pan Tilt Camera

TP-Link VIGI C540-4G, VIGI 4MP Outdoor Full-Color 4G Pan Tilt Network Camera

• 4MPSuper-HighDefinition: The camera comes with 4MP-more than enough pixels to pick up some of the more discrete details.
• 24h Full-Color:Experience clear, vibrant 24-hour monitoring, even in total darkness.
• 4G Mobile Networking: Enjoy hassle-free installation and simple monitoring in places where the internet is not available.
• 360° Monitoring:Cover every corner andeliminateblind spots.
• Human & Vehicle Classification: Distinguisheshumans and vehicles from other objects, so you receive more accurate event notifications.
• Smart Detection: Actively detects abnormal events like area intrusion and line-crossing, sending notifications to you instantly.
• Automatic Tracking:Automatically tracks persons or vehicles of interest and provides seamless and longer video.
• Active Defense:Warn potential intruders instantly with sound and light when abnormal events.
• Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere.
• H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
• IP66 Waterproof:Reliable IP66 for stable outdoor performance.
• Remote Management: Take full control over your security anytime and anywhere on the VIGI app or PC client.
• Onboard Storage: Support on-board storage up to 256 GB (SD card slot).*

CAMERA

• Image Sensor :1/3.06" Progressive Scan CMOS
• Shutter Speed :1/3 to 1/10000 s
• Slow Shutter :Yes
• Minimum Illumination :0.005 Lux; 0 Lux with IR/White Light
• Day/Night Mechanism :IR Cut Filter
• Day/Night Switch :Unified/ Scheduled/ Auto

LENS

• Type :Fixed Focal Lens
• Focal Length :4 mm
• Aperture :F1.6
• FOV :Horizontal FOV: 80°, Vertical FOV: 43°, Diagonal FOV: 94°
• Lens Mount :M12*0.5
• DORI Distance :Detect: 80 m (262 ft)
  Observe: 33 m (109 ft)
  Recognize: 16 m (52 ft)
  Identify: 8 m (26 ft)

PTZ

• Pan/tilt Range :Pan: 0° to 348°, Tilt: 0° to 120°
• Pan/tilt Speed :Pan Speed:
  Configurable from 8° to 44°/s; Preset Speed: 44°/s
  Tilt Speed:
  Configurable from 8° to 44°/s, Preset Speed 44°/s
• Manual Control Speed :Configurable from 8° to 35°/s
• Presets :300
• Patrol Scan :8 patrols, up to 8 presets for each patrol
• Power-off Memory :Yes;
  Auto restore to previous PT and lens status after power failure
• Park Action :Yes;
  Preset; Patrol Scan
• 3D Positioning :Yes

Angle Adjustment (Manual)

• Range :Pan: 0° to 348°
  Tilt: 0° to 120°

ILLUMINATOR

• IR LED :Quantity: 2
  Range: 30m
  Wavelength: 850nm
• White LED :Quantity: 2
  Range: 30m
• Illuminator On/Off Control :Auto/Scheduled/Always on/Always off

VIDEO

• Max. Resolution :2560 X 1440
• Main Stream :Frame Rate:
  50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
  60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
  Resolution:
  2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
  Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
• Sub-Stream :Frame Rate:
  50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
  60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
  Resolution:
  640x480, 352x288, 320x240
  Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
• Bit Rate Control :CBR, VBR
• Video Compression :Main Stream: H.265+/H.265/H.264+/H.264
  Sub-Stream: H.265/H.264
• H.264 Type :Main Profile/High Profile
• H.264+ :Main Stream Supported
• H.265 Type :Main Profile
• H.265+ :Main Stream Supported
• Video Bit Rate :Main Stream: 256 Kbps to 3 Mbps
  Sub-Stream: 64 Kbps to 512 Kbps


• Image Settings :Mirror
  Brightness
  Contrast
  Saturation
  Sharpness
  Exposure, WDR,
  White Balance
  Prevent Overexposure to Infrared Light
  HLC Adjustable by Client Software
  Rotation (90°/270°)
• Image Enhancement :BLC/3D DNR/HLC/SmartIR
• Wide Dynamic Range :DWDR
• SNR :? 52 dB
• Image Parameters Switch :Yes
• Privacy Mask :Up to 4 Masks
• ROI :1 Region
• OSD Setting :Yes

AUDIO

• Audio Communication :Two-Way Audio
• Audio Input :Yes
• Audio Output :Yes
• Audio Compression :Yes
• Audio Sampling Rate :8KHz
• Environment Noise Filtering :Yes
• Audio Bit Rate :64 Kbps(G.711 alaw)

NETWORK

• Protocol :TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
• ONVIF :Yes
• API :ONVIF
• Simultaneous Live View :2 Main Streams & 2 Sub-Streams
• Client :VIGI App, VIGI Security Manager, Web UI
• Web Browser :Google Chrome® 57 and above
  Firefox® 52 and above
  Safari® 11 and above
  Microsoft® Edge 91 and above
• Cloud :Yes
• Security :Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

4G

• Standard :LTE-TDD/LTE-FDD/WCDMA
• SIM Type :Nano SIM
• Category :4
• Frequency :LTE-FDD: B 1/3/5/7/8/20/28
  LTE-TDD: B 38/40/41
  WCDMA: B 1/5/8

ALARM AND EVENT MANAGEMENT

• Smart Event :Human & Vehicle Classification
  Intrusion Detection
  Line-Crossing Detection
  Region Entering Detection
  Region Exiting Detection
  Object Abandoned Detection
  Object Removal Detection
  People Detection
  Vehicle Detection
• Basic Event :Motion Detection
  Video Tampering Detection
  Exception (Illegal Login)
• Alarm Linkage :Memory Card Video Recording
  Message Push
  Audible Warning
  White Light Flashing
• Linkage Method :N/A
• Output Notification :Message Push

INTERFACES

• Network Interface :1 RJ45 10/100M Self-Adaptive Ethernet Port
• Alarm :N/A
• Reset Button :Yes
