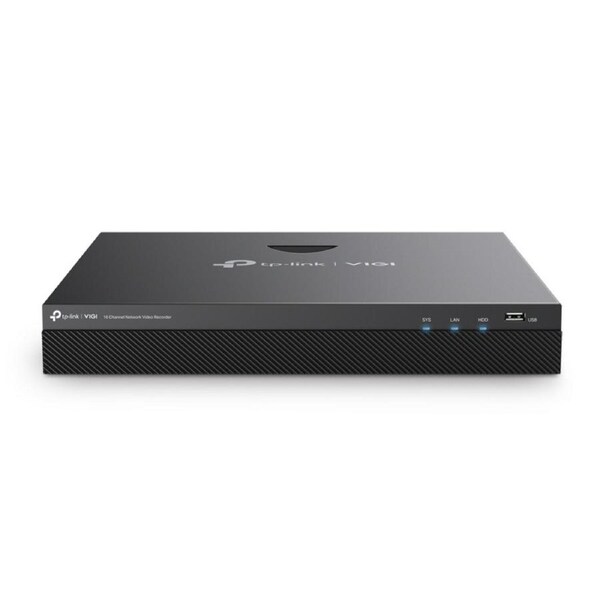

TP-Link VIGI NVR2016H 16 Channel Network Video Recorder, 4K Out, 16MP Decode

TP-Link VIGI NVR2016H, VIGI 16 Channel Network Video Recorder

• 4K HDMI Video Output &16MP Decoding Capacity:Sharp image definition up to 8MP, and 8-ch@2MP†decoding capacity allows you to enjoy more-channels live view and playback at the same time.
• 16-Channel Simultaneous Playback*:Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
• H.265+:Compressesthe video size without sacrificing video quality, easing the networkload and savingdisk space.
• ONVIF Ensures Compatibility?:Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
• Plug & Play:Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
• 24/7 Continuous Recording:Stores up to 20 TB of footage (1048 storage days†)from connected cameras to secure your data for quick, convenient access.
• Two-Way Audio:With voice intercom support, scare off any potential thieves or intruders from wherever you are.
• Remote Monitoring:The dedicated VIGI app and client enable remote monitoring, providing ease and convenience.

Video and Audio

• IP Video Input :16-Channel
• Incoming Bandwidth :80 Mbps
• Outgoing Bandwidth :60 Mbps
• HDMI Output Resolution :1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
• VGA Output Resolution :1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
• Video Output Mode :HDMI/VGA Simultaneous Output
• Multi-View Display :1/4/6/8/9/16

DECODING

• Audio Compression :G.711A/G.711U/G.726
• Video Compression :H.265+/H.265/ H.264+/H.264
• Record Resolution :8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/
  2CIF/CIF/QCIF
• Synchronous Playback :16-Channel
• Capability :25fps:
  2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP
  30fps:
  4-ch @ 3MP, 2-ch @ 5MP

Record Management

• Record Mode :Manual Recording, Scheduling Recording, Motion Detection Recording
• Playback Mode :Instant Playback, Regular Playback, Tag Playback, Event Playback
• Backup Mode :Regular Backup, Video Clip Backup
• Playback Function :Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full
  Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off

NETWORK

• Protocol :UPnP (Plug and Play), NTP (Network Timing)
• Mobile Phone Access :Android, iOS
• Web Browser :Chrome (57+), Firefox (52+), Edge (91+)
• Interoperability :ONVIF, CGI

External Interface

• Network Interface :1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
• USB Interface :1 Front USB 2.0 Port, 1 Rear USB 2.0 Port
• Audio Interface :1, Audio In; 1, Audio Out
• Alarm In/Out :N/A
• Serial Interface :N/A
• Power :1x DC Jack
• Reset Button :1
• Speaker :N/A
• eSATA :1
• HDMI :1
• VGA :1

HARD DISK

• SATA :2 SATA Interfaces
• Capacity :Up to 10 TB Capacity for Each HDD

Alarm

• General Alarm :Motion Detection, Video Tampering, Line-Crossing Detection, Intrusion Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned/Removal Detection, Vehicle Detection, Human Detection, Smart Frame
• Anomaly Alarm :Video Loss, Offline and IP Conflict, Disk Exception, Login Exception, Fan Exception
• Alarm Linkage :Recording, White Light Alarm, Buzzer, Log, Audible Alarm

GENERAL

• Storage Temperature :-40-70 °C
• Storage Humidity :10%~90% RH Non-Condensing
• Package Contents :VIGI Network Video Recorder
  Power Adapter
  HDD Screws
  Mouse
  Quick Installation Guide
• Working Temperature :NVR: -10-55 °C
  Power Adapter: 0-40 °C
• Working Humidity :10%~90% RH Non-Condensing
• Dimensions( W X D X H ) :330 x 285 x 45 mm
• Net Weight :1.9 Kg
• Gross Weight :3.2 Kg
• Power Supply :12V DC/3.3A
• Power Consumption :4.78 W (Without Disk)
  24.16 W (With Disk)
• Certifications :CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
