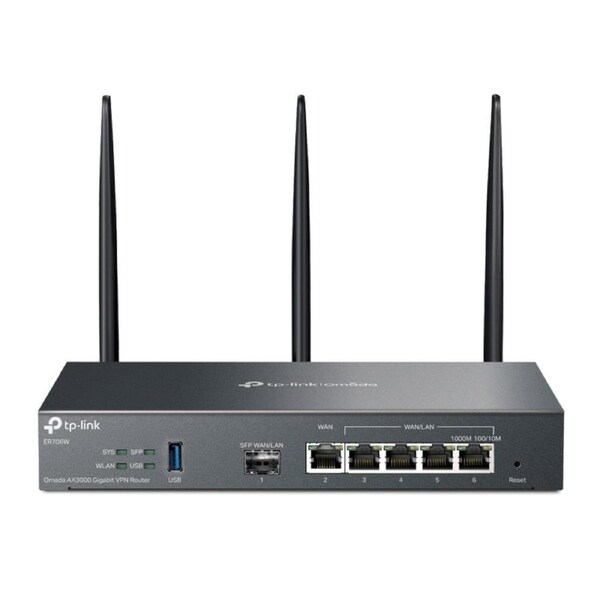

TP-Link ER706W Omada AX3000 Gigabit VPN Router
TP-Link ER706W, Omada AX3000 Gigabit VPN Router
- AX3000 Dual-Band WiFi: Supports2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz*
- 6 Gigabit Ethernet Ports: 1 gigabit SFP and 5 gigabit RJ45 ports provide high-speed wired connectivity.
- Omada Mesh Technology:Seamlessly connects to EAPs that support mesh technology, ideal for large-scale scenarios.**
- Centralised Management: Cloud access and Omada app for ultra convenience and easy management.
- Boosted Coverage:Triple externalantennas extend and concentrate the Wi-Fi signals.
- High-SecurityVPN: Supports multiple VPN protocols including IPSec / SSL / Wireguard / PPTP/ L2TP VPN, helping users to establish remote connections more flexibly.?
- Abundant Security Features: Advanced firewall policies, DoS defence,IP/MAC/URL filtering, and more security functions protect yournetwork and data.
- Learn more about Omada Cloud SDN>?
SECURITY
- Access Control :Source/Destination IP Based Access Control
- Filtering :Web Group Filtering†
URL Filtering
Web Security† - ARP Inspection :Sending GARP Packets
ARP Scanning†
IP-MAC Binding - Attack Defense :TCP/UDP/ICMP Flood Defense
Block TCP Scan (Stealth FIN/Xmas/Null)
Block Ping from WAN
HARDWARE FEATURES
- Interface :1 Gigabit SFP WAN/LAN Port
1 Gigabit WAN Port
4 Gigabit LAN/WAN Ports
1 USB3.0 (supports USB LTE dongle and USB Storage) - Button :Reset Button
- Power Supply :12VDC / 2A Power Adapter
- Wi-Fi Frequency & Signal Rate :2.4 GHz: 574 Mbps
5 GHz: 2402 Mbps (HE160) - Flash :128 MB NAND
- DRAM :512 MB DDR4
- Dimensions ( W x D x H ) :8.9 x 5.2 x 1.4 in (226 x 131 x 35 mm) (Antenna dimensions are not
included) - Antenna :2.4 GHz: 2x 3 dBi dual-band detachable antennas
5 GHz: 3x 4.5 dBi dual-band detachable antennas - Mounting :Desktop/Wall-mounting
- Max Power Consumption :EU: 16.8W (with USB 3.0 connected), 11.8W (without USB 3.0 connected)
US: 22.7W (with USB 3.0 connected) 18.2W (without USB 3.0 connected)
PERFORMANCE
- GRE :Unencrypted: 624.2Mbps
Encrypted: 301.5Mbps - WireGuard VPN :393.5Mbps
- Concurrent Session :150,000
- New Sessions /Second :5,100
- NAT (Static IP) :937.2 Mbps / 936.1Mbps
- NAT(DHCP) :945.8 Mbps / 940.6Mbps
- NAT(PPPoE) :942.9 Mbps / 942.9Mbps
- NAT (L2TP) :837.4 Mbps / 881.5Mbps
- NAT (PPTP) :803.0 Mbps / 910.5 Mbps
- IPsec VPN Throughput :ESP-SHA1-AES256: 646.9Mbps
ESP-SHA256-AES256: 642.8Mbps
ESP-SHA384-AES256: 648.9Mbps
ESP-SHA512-AES256: 658.4 Mbps - OpenVPN :129.3Mbps
- L2TP VPN Throughput :Unencrypted: 1034.0 Mbps
Encrypted: 570.0 Mbps - PPTP VPN Throughput :Unencrypted: 1165.0 Mbps
Encrypted: 209.0 Mbps - SSL VPN Throughput :126.7Mbps
- 66 Byte Packet forwarding rate :1,453,489 pps / 1,453,488 pps
- 1,518 Byte Packet forwarding rate :81,274 pps / 91,275 pps
WIRELESS FEATURES
- Advanced Functions :Seamless Roaming
Mesh (with EAP that supports Mesh)
OFDMA
Beamforming
MU-MIMO
Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise - Guest Network :Support
BASIC FUNCTIONS
- WAN Connection Type :Static IP
Dynamic IP
PPPoE (supports MRU Configuration)
PPTP
L2TP - MAC Clone :Modify WAN Address
- DHCP :DHCP Server
DHCPv6 PD Server (only in Standalone Mode)
DHCP Options Customization
DHCP Address Reservation
Multi-IP Interfaces
Multi-Net DHCP - IPv6 :StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
- VLAN :802.1Q VLAN
- IPTV :IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
ADVANCED FUNCTIONS
- ACL :IP/Port/Protocol/Domain Name Filtering
- Advanced Routing :Static Routing
Policy Routing
RIP†
OSPF† - Bandwidth Control :IP-Based Bandwidth Control
- Load Balance :Intelligent Load Balance
Application Optimized Routing
Link Backup(Timing, Failover)
Online Detection - NAT :One-to-One NAT
Multi-Net NAT
Virtual Server
Port Triggering†
NAT-DMZ
FTP/H.323/SIP/IPSec/PPTP ALG
UPnP - Session Limit :IP-Based Session Limit
VPN
- SSL VPN :50 Tunnels
- IPsec VPN :100 IPSec VPN Tunnels
LAN-to-LAN, Client-to-LAN
Main, Aggressive Negotiation Mode
DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
IPsec Failover
IKE v1/v2
MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
NAT Traversal (NAT-T)
Dead Peer Detection (DPD)
Perfect Forward Secrecy (PFS) - PPTP VPN :PPTP VPN Server
PPTP VPN Client (10)?
50 Tunnels
PPTP with MPPE Encryption - L2TP VPN :L2TP VPN Server
L2TP VPN Client (10)?
50 Tunnels
L2TP over IPSec - OpenVPN :OpenVPN Server
OpenVPN Client (5)?
55 OpenVPN Tunnels
"Certificate + Account" Mode
Full Mode
AUTHENTICATION
- Web Authentication :No Authentication
Simple Password§
Hotspot (Local User / Voucher§/ SMS§/ Radius§)
External Radius Sever
External Portal Sever§
LDAP
MANAGEMENT
- Omada App :Yes.
- Centralized Management :Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller - Cloud Access :Yes.
- Service :Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS
Customization) - Maintenance :Web Management Interface
Remote Management
Export & Import Configuration
SNMP v1/v2c/v3
Diagnostics (Ping & Traceroute)†
NTP Synchronize†
Port Mirroring
CLI (only in Standalone Mode)
Syslog Support - Zero-Touch Provisioning :Yes. Require the use of Omada Cloud-Based Controller.
- Management Features :Automatic Device Discovery
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
Captive Portal Configuration
OTHERS
- Certification :CE, FCC, RoHS
- Package Contents :ER706W
Power Adapter
Quick Installation Guide - System Requirements :Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11
MAC OS, NetWare, UNIX or Linux - Environment :Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing
