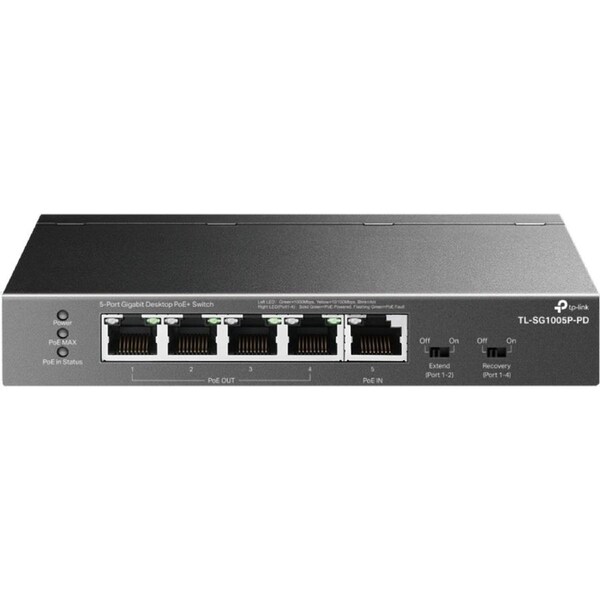

TP-Link TL-SG1005P-PD 5-Port Gigabit Desktop PoE+ Switch

TP-Link TL-SG1005P-PD, 5-Port Gigabit Desktop PoE+ Switch with 1-Port PoE++ In and 4-Port PoE+Out

• Ports: 5x 10 Mbps/100 Mbps/1 Gbps RJ45 ports
• 1-Port Gigabit PoE++ In and 4-Port PoE+ Out: Supports up to 66W / 47W / 21W/ 9W PoE budget output when powered by 802.3bt Type 4, 802.3bt Type 3, 802.3at, and 802.3af PoE standard, respectively.*
• Long-Range PoE+:With Extend Mode**, PoE transmission distance reaches up to 250 m, perfect for surveillance camera deployment in large areas.
• PoE Auto Recovery:It guarantees stable operation of PoE devices by automaticallyrebooting the dropped or unresponsive PD devices.
• Metal Casing:Durable metal casingand desktop/wall-mounting design are well-suited for different environments.
• Silent Operation:Industry-leading fanless design ensures silent operation, ideal for any home or business.
• Plug and Play:No configuration and installation required.
• Power Supply:The product only supports PoE power supply, not AC or DC power supply.
• Learn more about TP-LinkPoE technology >

HARDWARE FEATURES

• Standards and Protocols :IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.1p
• Interface :5x 10/100/1000Mbps RJ45 Ports
  1x 10/100/1000 Mbps RJ45 PoE In Ports (compliance with 802.3af/at/bt Type3/bt Type4)
  4x 10/100/1000 Mbps RJ45 PoE Out Ports (compliance with 802.3af/at)
  AUTO Negotiation
  AUTO MDI/MDIX
• Network Media :10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  EIA/TIA-568 100? STP (maximum 100m)
  100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  EIA/TIA-568 100? STP (maximum 100m)
  1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
  EIA/TIA-568 100? STP (maximum 100m)
• Fan Quantity :Fanless
• Power Supply :Only Powered by PoE Device
• PoE Ports (RJ45) :PoE In Port: Port 5, Compliance with 802.3af/at/bt Type3/bt Type4
  PoE Out Ports: Ports 1-4, compliance with 802.3af/at
  PoE Power Budget:
  -66 W when powered by 802.3bt Type 4 (90 W)
  -47 W when powered by 802.3bt Type 3 (60 W)
  -21 W when powered by 802.3at (30 W)
  -9 W when powered by 802.3af (15.4 W)
• Dimensions ( W x D x H ) :6.2 x 4.0 x 1.0 in (158 x 101 x 25 mm)
• Max Power Consumption :2.68 W (90W PoE In, with no PD connected)
  68.59 W (90W PoE In, with 66 W PD connected)
• Max Heat Dissipation :9.112 BTU/h (90W PoE In, with no PD connected)
  233.206 BTU/h (90W PoE In, with 66 W PD connected)

PERFORMANCE

• Switching Capacity :10 Gbps
• Packet Forwarding Rate :7.44 Mpps
• MAC Address Table :2k

SOFTWARE FEATURES

• Advanced Features :Extend Mode Button (Ports 1-2, Up to 250 m PoE power supply and data transmission)
  PoE Auto Recovery (Ports 1-4)
  Mac Address Auto-Learning and Auto-Aging
  IEEE 802.3x Flow Control
  802.1p/DSCP QoS
  IGMP Snooping
• Transfer Method :Store-And-Forward

OTHERS

• Certification :CE, FCC, RoHS
• Package Contents :TL-SG1005P-PD
  Installation Guide
• Environment :Operating Temperature: -30-70 ? (-22-158 ?);
  Storage Temperature: -40-70 ? (-40-158 ?)
  Operating Humidity: 10-90% RH non-condensing
  Storage Humidity: 5-90% RH non-condensing
