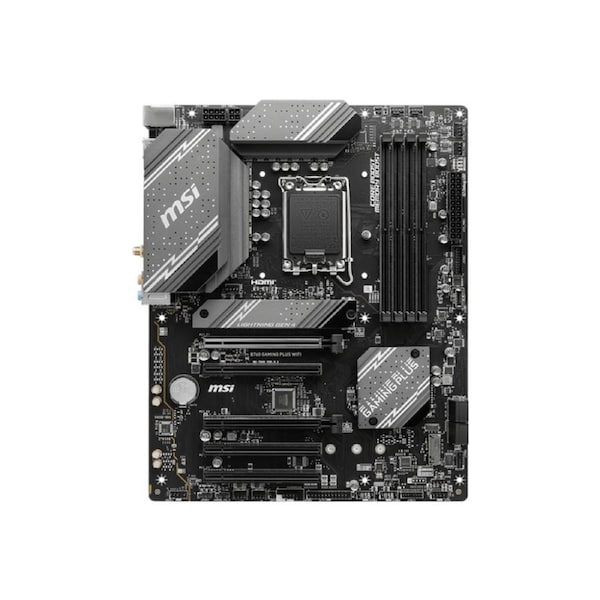

MSI B760 GAMING PLUS WIFI Intel B760 ATX DDR5 Motherboard

MSI MSI B760 GAMING PLUS WIFI, ATX - Intel 13th/12th Gen - 12 Phases, DDR5, PCIe 4.0, 2.5G LAN, Wi-Fi 6E

• Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
• Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
• Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
• Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
• Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, Turbo USB 3.2 Gen 2 10G
• 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• High Quality PCB: 6-layer PCB made by 2oz thickened copper
• Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

• Chipset :INTEL B760
• CPU :Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
  LGA 1700
• Memory :4x DDR5, Maximum Memory Capacity 256GB
  Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
  Max. overclocking frequency:
  1DPC 1R Max speed up to 6800+ MHz
  1DPC 2R Max speed up to 6400+ MHz
  2DPC 1R Max speed up to 6000+ MHz
  2DPC 2R Max speed up to 5600+ MHz
  Supports Intel® XMP 3.0 OC
  Supports Dual-Controller Dual-Channel mode
  Supports non-ECC, un-buffered memory

• Onboard Graphics :1x HDMI™
  Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*
  1x DisplayPort
  Support DP 1.4, maximum resolution of 4K 60Hz*
  *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
• Slot :5x PCI-E x16 slot
  PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
  PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
  PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
  PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
  PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
• Storage :2x M.2
  M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
  M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
  4x SATA 6G
  * SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
• RAID :Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• USB :4x USB 2.0 (Rear)
  4x USB 2.0 (Front)
  2x USB 3.2 Gen1 Type A (Front)
  1x USB 3.2 Gen1 Type C (Front)
  2x USB 3.2 Gen2 Type A (Rear)
  1x USB 3.2 Gen2 Type C (Rear)
• LAN :Realtek® RTL8125BG 2.5G LAN
• WIRELESS LAN & BLUETOOTH :Intel® Wi-Fi 6E
  The Wireless module is pre-installed in the M.2 (Key-E) slot
  Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
  Supports 802.11 a/ b/ g/ n/ ac/ ax
  Supports Bluetooth® 5.3, FIPS, FISMA
  * Wi-Fi 6E 6GHz may depend on every country's regulations and will be ready in Windows 11.
  ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
• Audio :Realtek® ALC897 Codec
  7.1-Channel High Definition Audio
  Supports S/PDIF output
• Internal IO :1x Power Connector(ATX_PWR)
  2x Power Connector(CPU_PWR)
  1x CPU Fan
  1x Pump Fan
  5x System Fan
  2x Front Panel (JFP)
  1x Chassis Intrusion (JCI)
  1x Front Audio (JAUD)
  1x Printer Port (JLPT)
  1x Com Port (JCOM)
  1x TBT connector (JTBT, supports RTD3)
  2x Addressable V2 RGB LED connector (JARGB_V2)
  1x RGB LED connector(JRGB)
  1x TPM pin header(Support TPM 2.0)
  4x USB 2.0 ports
  2x USB 3.2 Gen1 Type A ports
  1x USB 3.2 Gen1 Type C ports
• LED FEATURE :4x EZ Debug LED
• BACK PANEL PORTS :
  1. Keyboard / Mouse
  2. DisplayPort
  3. 2.5G LAN
  4. USB 2.0
  5. Wi-Fi / Bluetooth
  6. Audio Connectors
  7. USB 2.0
  8. HDMI™
  9. USB 3.2 Gen 2 10Gbps (Type-A)
  10. USB 3.2 Gen 2 10Gbps (Type-C)
  11. S/PDIF-OUT
• OPERATING SYSTEM :Support for Windows® 11 64-bit, Windows® 10 64-bit
• PCB Info :ATX
  243.84mmx304.8mm
