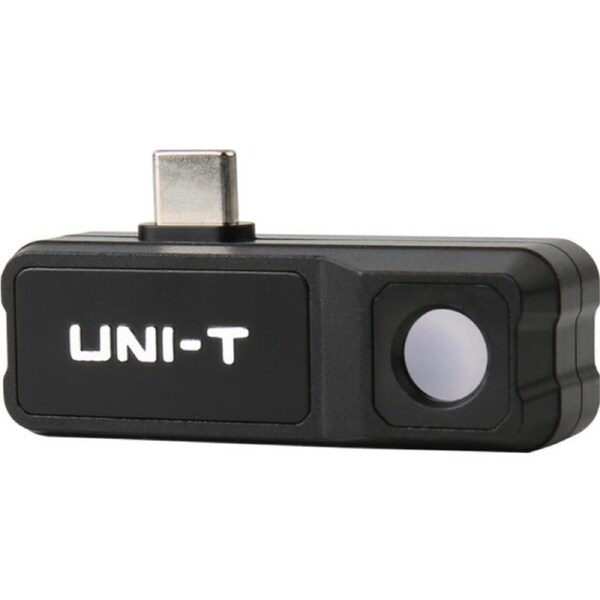

UNI-T UTI120MOBILE Android smartphone thermal imager IR 120X90 Android Type C
UTi120Mobile Thermal Camera Module for Andriod
UTi120Mobile is a professional smartphone thermal camera module for Andriod devices, which is compact, portable, and easy to operate by connecting with mobile phones. UTi120Mobile provides a clear image with a fast response, and can also detect temperatures up to 400oC. Users can troubleshoot HVAC problems or investigate heat source issues around the house faster and easier with this thermal camera module. It is a perfect tool for DIY homeowners, outdoor lovers, engineers, contractors builders, etc.
FEATURES
- Designed for Andriod smartphone
- Plug and play with "Thermal Mobile" APP
- IR Resolution: 120x90
- Temperature measurement range: -20oC to 400oC / -4oF to 752oF
- Compact size and easy to carry
- Auto alarm for high/low temperature
- Auto tracking for hot spot/cold spot
- On display screen analyzer: 6 Points / 6 Lines / 6 Rectangles / 6 Circles
- Image capture
- Video recording
- Color palettes: 7 (White hot, Black hot, Red hot, Ironbow, Lava, Rainbow, Rainbow HC)
- Phone: Android USB Type-C interface
- 2m drop-proof
- Create report with on screen analyzer in the APP
APPLICATIONS
- Manufacturing Machine Inspection
- PCBA Inspection
- Freezer Inspection
- Electricity Inspection
- Pipeline Inspection
- Motor Inspection
SPECIFICATIONS
| Technical Data | |
| IR resolution (Pixels) | 120x90 |
| Field of view(FOV) | 50o Hx38o V |
| Thermal sensitivity(NETD) | 60mK @25oC |
| Spatial resolution(IFOV) | 7.3mrad |
| Frame rate | 25Hz |
| Spectral range | 8~14um |
| Focus | Focus free |
| Lens focal length | 2.28mm |
| Temperature measurement range | -20oC ~ 400oC |
| Temperature display | Center Spot, High Spot, Low Spot |
| Accuracy | For temperature > -10'C, 2% or2'C(whichever is greater, ambient temperature 25'C) |
| Emissivity | 0.01~1.00 adjustable (0.95 default) |
| Functions | |
| Color palettes | 7 (White hot, Lava, Ironbow,Black hot, Red hot, Rainbow, Rainbow HC) |
| Temperature units | oC, oF |
| Temperature resolution | 0.1o |
| Image modes | Thermal,Fusion,PIP |
| PIP | Display visual image (on phone) and infrared image simultaneously |
| On screen analyzer | 6 Points/6 Lines/6 Rectangles/6 Circles |
| Hi/Lo temperature alarm | Yes |
| Hi/Lo tracking | Real-time tracking of Hi/Lo spot in the thermal images |
| Image editing | Saved images can be edited, but videos cannot |
| Video recording | Yes (via the phone) |
| General Characteristics | |
| USB | Type C |
| Operating temperature | 0- 45oC |
| Storage temperature | -20- 60oC |
| Relative humidity | 10%-85%RH, non-condensing |
| Altitude | 2000m |
| Drop-proof | 2m |
| Image/Video storage format | JPEG, MP4 |
| Certificates | CE,UKCA,FCC,RoHS,MFi |
| Product net weight | 25g |
| Product size | 53mmx18.2mmx18.5mm |
WHAT IS IN THE BOX?
- UTi120MS x 1
- UTi120MS case x 1
- 1M USB Type C plug to socket extension cable x 1
- Micro USB to Type C adapter x 1
- English manual x 1
- Documents download operation guide card x 1
- Cleaning cloth x 1
