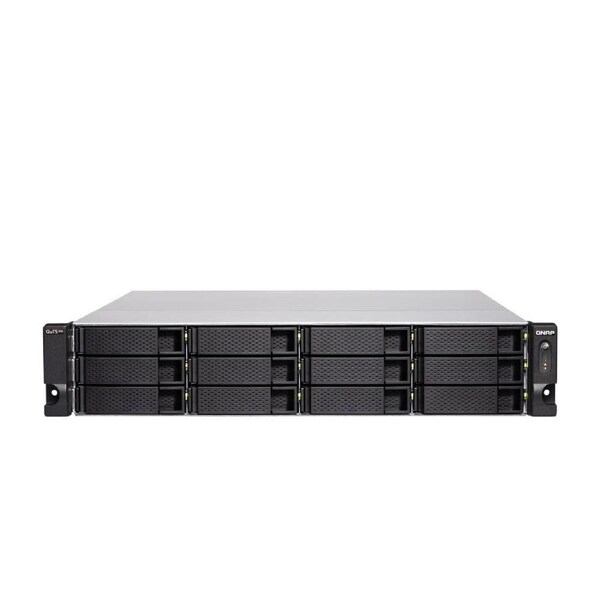

QNAP TS-h1886XU-RP-R2-D1622-32G 12 Bay 2U NAS SATA 6Gbps, 32GB DDR4 ECC RAM, 4 x GbE RJ45 LAN, 2 x 10GbE SFP+, 4 x PCIe expansion slots
12 (+6) -Bay SATA 6Gbps (12 x 3.5" + 6 x 2.5") 2U NAS, Xeon D-1622 4 cores / 8 threads 2.60 GHz (boost up to 3.20 GHz), 32GB DDR4 ECC RAM (4 x DIMMs, max 128GB total), 4 x GbE RJ45 LAN, 2 x 10GbE SFP+ SmartNIC, optional 25GbE & 40GbE & fibre channel FC support, iSCSI, RAID, 4 x PCIe expansion slots (1 slot is pre-installed with a 2-port 10GbE SFP+ card), USB 3.2 Gen1, redundant power supply, QuTS hero O.S. with ZFS, deduplication, compress, snapshots, optional fibre channel FC support
Spec
CPU Intel(R) Xeon(R) D-1622 4-core processor, burst up to 3.2 GHz
CPU Architecture 64-bit x86
Floating Point Unit
Encryption Engine (AES-NI)
System Memory 32 GB UDIMM DDR4 ECC (2 x 16GB)
Maximum Memory 128 GB (4 x 32 GB)
Memory Slot 4 x UDIMM DDR4
Flash Memory 5GB (Dual boot OS protection)
Drive Bay Front: 12 x 3.5-inch SATA 6Gb/s, 3Gb/s
Rear: 6 x 2.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility 3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
2.5-inch bays:
2.5-inch SATA solid state drives
Hot-swappable
SSD Cache Acceleration Support
SR-IOV
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 4 (2.5G/1G/100M)
10 Gigabit Ethernet Port 2 x 10GbE SFP+ SmartNIC port
Pre-installed with a 10GbE PCIe adapter
Wake on LAN (WOL)
Jumbo Frame
PCIe Slot 3
Slot 1: PCIe Gen 2 x4 (x8 Slot)
Slot 2: PCIe Gen 3 x4
Slot 3: PCIe Gen 3 x8 or x4 (x8 Slot)
*Slot 3 is preinstalled with a 10GbE network adapter.
**Slot 3 provides the width of PCIe Gen 3 x8 when Slot 2 is not in use, and provides the width of PCIe Gen 3 x4 when Slot 2 is in use.
Card dimensions for PCIe slot 1 170 x 68.9 x 39.08 mm / 6.70 x 2.71 x 1.54 inches.
Card dimensions for PCIe slot 2 170 x 68.9 x 18.76 mm / 6.70 x 2.71 x 0.74 inches.
Card dimensions for PCIe slot 3 170 x 68.9 x 18.76 mm / 6.70 x 2.71 x 0.74 inches.
Wider cards can be installed if the next PCIe slot will not be used.
USB 3.2 Gen 1 port 2
Standard Warranty 3 Years
