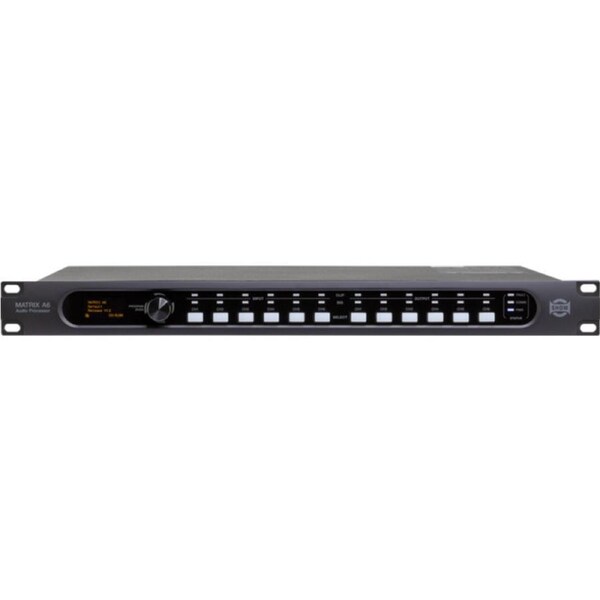

SHOW MATRIX-A6 Digital Audio Matrix Processor 6 Analog In X 6 Analog Out
MATRIX-A6 is a dedicated music, paging, discussion, and zone management solution for commercial audio applications. It has 6 inputs and 6 outputs in a single device powered by a state-of-the-art DSP platform._
- 6 analog IN x 6 analog OUT
- 8 Dante in x 8 Dante out (Dante module option)_
- Expandable up to 96 Inputs and 96 outputs with 16 units of the Matrix-A6
- 4 Volume Controller ports (remote devices)
- Fix architecture for easy and quick operation
- Intuitive GUI with PC editor software
- DSP functionalities: PHASE / DELAY / COMP / ANC / AGC
- 200-meter maximum transmission distance from the remote controller to the Remote Device port
- Rack-mountable
- RS232 connection
- Balanced analog inputs and outputs
| Modle | MATRIX-A6 |
| Connectors | Euroblock 3 x 6-pin, 5mm pitch |
| CODEC | 32-bit, 48K/96K |
| MIC/ Line Inputs | Active balanced |
| Gain Settings | +10 to +60dB,1dB steps |
| Input Impedance | 6.8K |
| Phantom Power(±3V) | +48VDC |
| THD+N | < 0.03%, typ 20Hz-20KHz, 0dBu A-Weight |
| Maximum Input | +20dB |
| Frequency Response | 20Hz-20KHz, at 0dBu- 1.5dB A-Weight |
| Dynamic Range | 108dB |
| Crosstalk | <-88dB, at 20Hz-20KHz, 0dB, CH to CH |
| Digital Gain Range | 0~-48dB Steps=12dB |
| Outputs | Active balanced |
| Impedance | 200 |
| Maximum Output | +20dBu |
| Frequency Response | 20Hz~20KHz at 0dBu ±1.5dB A-Weight |
| Dynamic Range | 108dB |
| Crosstalk | <-88dB, at 20Hz-20KHz, 0dB, CH to CH |
| Indicators | |
| Signal | -40dBu Green LED |
| Overload | +19dBu Max, A-Weighted |
| DSP | |
| Processor | 32/64-bit Floating Point |
| Power Supply | 100-240V/50~60Hz |
| Dimension (W x H x D) | 483 x 44 x 256 mm (19.02 " x 1.73" x 10.08 ") |
_
_
Weight: 5
