Eberspacher Airtronic HS3 D5E Diesel Hot Water System
Eberspacher Airtronic HS3 D5E Diesel Hot Water System. This Eberspächer Hydroplate system is suitable for installation into Motorhome, Caravan, Welfare, Utility and Messing vehicle applications. It utilises either a separate diesel fuel tank or the vehicles own diesel tank. It also requires a 12V DC power supply. The Hydroplate system is generally used when stationary, but can be used whilst on the move. Once installed all you need to do is switch it on and after approximately 10-15 minutes, the Hydroplate produces a constant flow of hot water at 40°C, to be used for washing and showering. The continuity of hot water supply is dependent on the flow rate of the domestic water pump, ideally being between 5 and 10 litres per minute. We can offer optional fan matrix units, that can be used to supply ducted hot air dependent on the specific application. We would welcome the opportunity to discuss your specific requirements in more detail.
Features:
- Encapsulated fan motor
- Separation of hot and cold components
- Electronically commutated motor
- Installation Straight and 90° water spigots (rotate 360°), in any combination
- New bracket concept
- New installation recommendations and installation kits
- All familiar types of fan activation from the Hydronic 1 and 2 are still applicable
- New CAN-based EasyFan fan and flap module
- Diagnostics by using EasyScan
- 85% efficiency
- Uses Eberspächer CAN and LIN bus technology
- Operating temperature range: diesel -40°C to +80°C and petrol -40°C to +60°C
- Stepless heating power control
- Optimised water volume flow thanks to controlled water pump allows for faster window de-icing
- Flow rate: 4 l/min -> 11.7 min duration
6 l/min -> 7 min duration
11 l/min -> 3.3 min duration

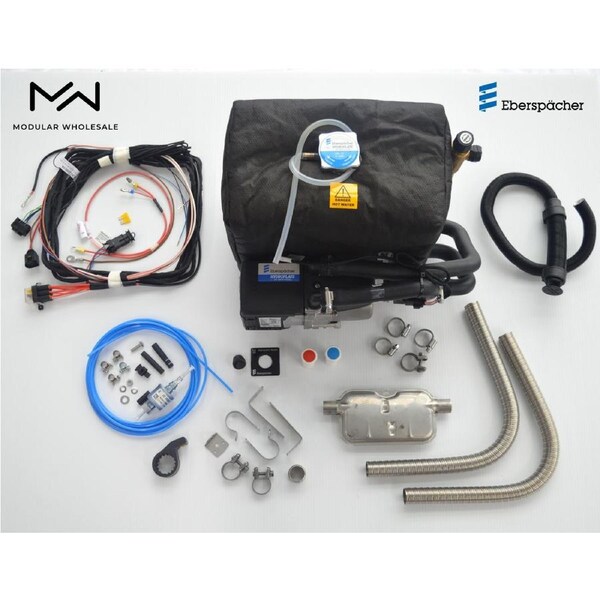

Kit inclusion:
- 1 X Hydroplate Hs3 And Tank Assembly
- 1 X Complete Wiring Harness (With Provision For Basic On/off Switch - Included In The Kit)
- 1 X Fuel Metering Pump Inc Pump Holder
- 1 X 6mtr Fuel Line
- 1 X 2m S/steel Exhaust Pipe & Silencer
- 1 X 0.5m Air Intake Tube
- 1 X Miscellany Pack, Screws & Washers, Clamps, P Clips, Zip Ties, Fuel Line Joiners, Warrnty Card, Qr Code For Digital Manual
