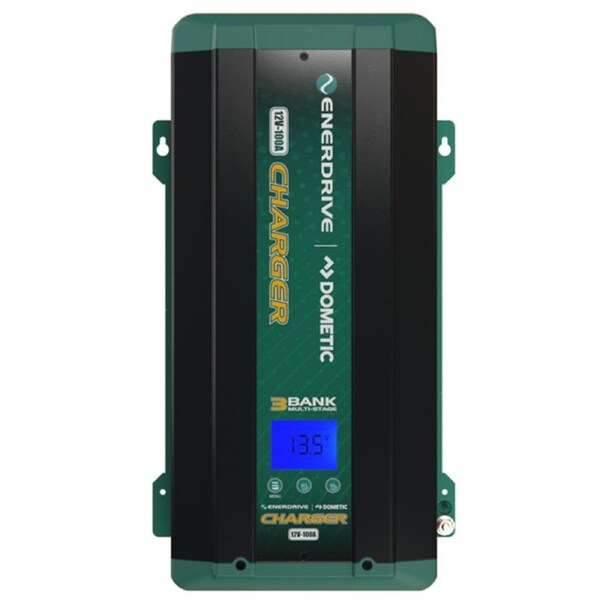

Enerdrive 12V 100A AC Battery Charger

The Enerdrive ePOWER 100A Battery Charger is a fully automatic, “set and forget” charger. It is designed to quickly and accurately recharge your batteries using algorithms that help maximise service life. Multistage smart charging technology enables the charger to be connected to your battery banks permanently.

As dictated by battery manufacturer's recommendations, batteries require a multistage charge sequence for perfect, fast and accurate charging.

The Enerdrive ePOWER charger can be programmed for Lithium batteries. This setting delivers the full rated output of the charger constantly with the charger switching to power supply mode once the voltage peak is met (indicating a full battery bank).

EXPERT TIP: The Enerdrive 120Amp breaker is a common accessory suitable for the Enerdrive EN312100 100A AC to DC charger. The accessory is available in the Accessory List above as optional extras.

100A Battery Charger Features:

• Multistage Charging: Fully automatic multistage battery charger with the ability to charge 3 separate battery banks.
• Separate Battery Banks: Isolated charging design where battery bank one is separate from battery bank two and three.
• Programmable: Battery bank 1 can be programmed with a different charge algorithm over banks 2 and 3.
• Current Control: User adjustable current output (e.g. Dial the 100amp unit back to run off a 1kVA generator).
• Smart Charging: The ePOWER 100A battery charger will regulate its output based on the loads connected to your battery banks.
• Wide AC Input Range: Operates on both 110V / 60Hz and 240V / 50Hz.
• LED Display: Easy to use “set and select” menu along with scrolling charger status.
• Silent Mode: Disables the cooling fan for total silent operation at night or whenever required. Activation reduces charge output by half and locks out fan for 12 hours.
• 5 Year Warranty from an Australian company renowned for customer support.

Multistage Charging Process

The Enerdrive 100A Battery Charger is a fully automatic, “set and forget” charger. It is designed to quickly and accurately recharge your batteries using algorithms that help maximise service life. Multistage smart charging technology enables the charger to be connected to your battery banks permanently.

As dictated by battery manufacturer's recommendations, batteries require a multistage charge sequence for perfect, fast and accurate charging. Our multistage smart 100A battery charger delivers four primary charge stages:-

• Stage 1 - Bulk or Boost Charge; The battery is charged at full rated output current of the charger until the battery reaches its final charging voltage, known as its absorption voltage. In this step, around 80% of the battery capacity is recovered as fast as possible.
• Stage 2 - Absorption Charge; With the charger voltage held steady the remaining 20% is replaced allowing the current to drop as the battery approaches its full charge.
• Stage 3 - Float; Finally, in the float stage the charger voltage is lowered and held at a constant and safe predetermined level. This prevents the battery from being overcharged while supporting any additional loads connected to the battery, such as DC lighting and refrigerators. This stage allows for the charger to be used as a DC power supply.
• Stage 4 - Maintenance; This stage is a regular timed “return to bulk” stage. After 7 days of constant operation in “float” the Enerdrive 100A Battery Charger will switch the charger from float to bulk to agitate the batteries electrolyte helping to provide an extended service life.

The Display Panel

The Enerdrive 100A Battery Charger display gives you all the information you need for the operation of your charger. At a glance, key information such as charger amps, battery voltage and charge state continually alternate on the screen. When in float / power supply mode, the load amps are displayed so you can see exactly what the charger is doing. The display also allows you to program all settings of the charger, as well as activate the silent mode.

Silence when you need it - By pressing the “SEL” button for 5 seconds, the Enerdrive Charger enters the 'Silent' mode that prohibits the fan from working. This ensures totally silent and safe operation at night, ideal if the charger is located close to your sleeping quarters. Silent mode limits current output to no more than 50%, and is programmed to remain on for 12 hours before automatically returning to a normal 'fan-on & full output' setting.

Specfications:

• Model: EN312100
• Output Current: 100A
• Charge: 14.2 - 15.5 V
• Float: 13.4 - 13.8 V
• Charging Control: Four Stages (Bulk/Absorption/Float/Maintenance)
• Equalize: 15.5 V
• DC Output Bank: Three (1 fully independent, 2 common with diode isolation)
• Selectable Battery Type: Gel, AGM, Flooded, Lithium, Program (Flooded Default)
• Standby Current: < 5 mA
• AC Input Voltage (Nominal): 100,120,220,230,240 VAC
• AC Input Operating Range: 207-265 VAC (7.6 A Max) | 90-125 VAC (15.9 A Max)
• Power Consumption: 1750W (Full Load)
• Dimensions: 425mm (L) x 236mm (W) x  102.7mm (H)
• Weight: 6.4kg

Note: Temperature Sensor (EN3-TEMP) is not included with EN312100 charger. Temp Sensor EN#-TEMP (Sold Separately) is required if using EN312100 with GEL, AGM, Flooded, Program batteries.
