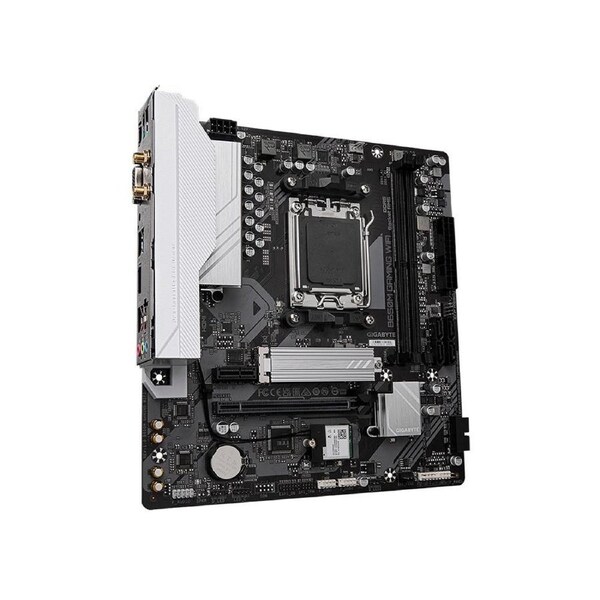

Gigabyte B650M Gaming WIFI AM5 mATX Motherboard
CPU
AMD Socket AM5, support for:
AMD Ryzen(TM) 7000 / Ryzen(TM) 8000 Series Processors
(Go to GIGABYTE's website for the latest CPU support list.)
Chipset AMD B650
Memory
Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO(TM)) and Extreme
Memory Profile (XMP) memory modules
Onboard Graphics
Integrated Graphics Processor with AMD Radeon(TM) Graphics support:
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.
Wireless Communication module
AzureWave Wi-Fi AW-CB304NF (Realtek(R) RTL8821CE)
- WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
- BLUETOOTH 4.2
- Support for 11ac wireless standard
Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzen(TM) 7000 Series Processors support PCIe 4.0 x16 mode
- AMD Ryzen(TM) 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen(TM) 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface
1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs:
- AMD Ryzen(TM) 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen(TM) 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen(TM) 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors
