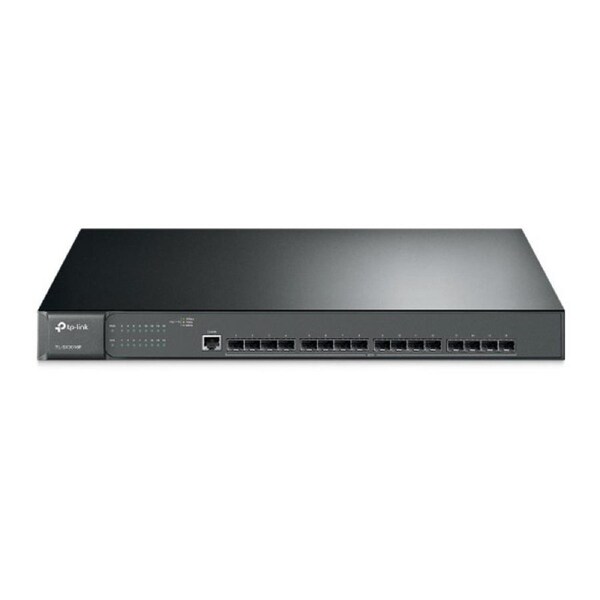

TP-Link TL-SX3016F JetStream 16-Port 10GE SFP+ L2+ Managed Switch, Centralised
* 16x Full 10 Gbps SFP+ Slots - Lightning-fast full 10 Gbps SFP+ slots provide high-bandwidth aggregation connectivity
* Centralized Cloud Management - Integrates into Omada SDN for cloud access and remote management
* Abundant L2 and L2+ Features - Supports a complete lineup of L2 and L2+ features including Static Routing, enterprise-level QoS, IGMP Snooping, and more
* Robust Security Strategies - Helps protect LAN area investment with integrated IP-MAC-Port Binding, ACL, Port Security, 802.1X Authentication, and more
* Robust Hardware Design - Its fanless design ensures silent operation, while its durable metal casing and up to 45 operation temperature ensures reliability
General
Interface 8 10GE SFP+ Slots 16 10GE SFP+ Slots
Console 1 RJ45 Console Port, 1 Micro-USB Console Port
Flash 32 MB
DRAM 256 MB
Port Standard IEEE 802.3z: 1000BASE-X Gigabit Ethernet (Optical fiber)
IEEE 802.3ae: 10 Gigabit Ethernet over fiber
Performance
Switching Capacity 160 Gbps 320 Gbps
Packet Forwarding Rate 119.04 Mpps 238.08 Mpps
MAC Address Table 32K
Packet Buffer 16 Mbit 24 Mbit
Transmission Method Store and Forward
Number of IP Interfaces 16
Number of Static
Routers 48 (IPv4, IPv6)
Jumbo Frame 9 KB
Physical & Environment
Dual Redundant
Power Supply - 2 Fixed AC Power Supply
Power Supply 100-240 V AC~50/60 Hz
Max Power
Consumption 15.46 W (220 V/50 Hz) 32.74 W (220 V/50 Hz)
Max Heat Dissipation 52.75 BTU/hr (220 V/50 Hz) 111.71 BTU/hr (220 V/50 Hz)
Standby Power
Consumption 5.91 W (110 V/60 Hz) 13.33 W (110 V/60 Hz)
Dimensions (W x D x H) 17.3 x 7.1 x 1.7 in (440 x 180 x 44 mm) 17.3 x 8.7 x 1.7 in (440 x 220 x 44 mm)
Fan Quantity Fanless 1
Installation Rack Mountable
