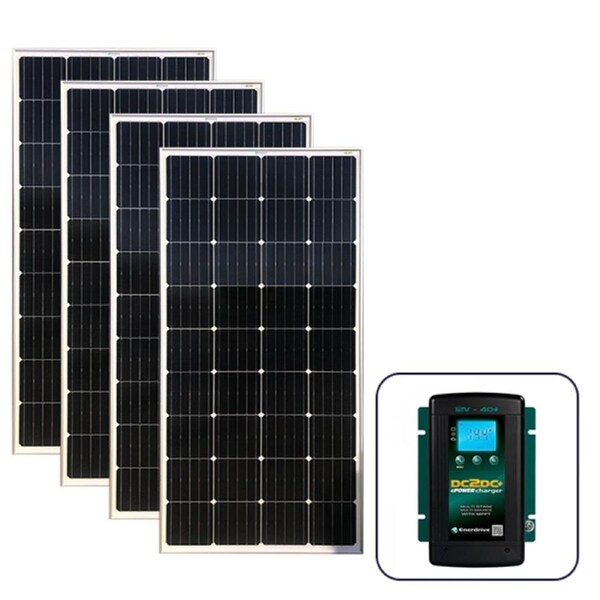

Enerdrive 760W Solar and 40A DC to DC Charger Pack
Included:
- Enerdrive 12V 40A DC to DC Battery Charger -
- Enerdrive 4 x 190W Mono Crystalline Fixed Solar Panel, Silver -
Specifications:
- Output Current Rating (Amps) 40.0
- Float 13.0V - 13.8V (Battery Charger)
- Equalize 15.5V (Battery Charger)
- Charging Control Three Stages (Battery Charger)
- DC Output Single (Battery Charger)
- Selectable Battery Type Gel, AGM, Flooded, Lithium, Program (Battery Charger)
- Charger Efficency 95% (Battery Charger)
- Temperature Setting Low/Normal/High (Battery Temperature Sensor Standard) (Battery Charger)
- Wattage 190W Per Panel - 720W All Tgether (Solar Panels)
- Open Circuit Voltage 24.2 Voc(V) (Solar Panel)
- Short Circuit Current 9.98 Isc(A) (Solar Panel)
- Maximum System Voltage 1000 (VDC) (Solar Panel)
- Test Conditions Cell Temperature 25 Deg C,Irradiance 1kW/m2 Air Mass 1.5 (Solar Panel)
- Cell Type Monocrystalline - 72 Cells Per Panel (Solar Panel)
- Weight 48.6 kg
- Warranty 5 Years
Enerdrive ePOWER 12V 40A DC to DC Battery Charger:
The Enerdrive ePOWER DC2DC Battery Charger is a fully automatic multistage, multi input battery charger with the ability to charge from either an alternator linked to a battery; or via solar power with the in built Maximum Power Point Tracking (MPPT) Solar Controller.
EXPERT TIP: The Enerdrive & breakers are common accessories suitable for the Enerdrive EN3DC40+ 40A DC to DC charger. All the accessories are available in the Accessory List above as optional extras.
Features:
- Two totally independent DC Inputs
- DC M6 screw terminals that will allow for large battery cable connection between all sources
- A dedicated Maximum Power Point (MPPT) solar regulator
- The same battery algorithms as included in our AC mains ePOWER battery charger
- 40A output up to 40+°C with thermo controlled fan cooling
- Fully programmable LCD display
- Displays charger status, voltage and amperage
- Temperature sensor
In Vehicle & Marine Wiring Diagram
Towed Vehicle Wiring Diagram
Enerdrive solar panels are typically around 20+vdc open circuit.
Features:
- Suited to 12v installations (or 24v by series connections of panels)
- A fly lead cable is provided for easy connection of the 10 & 20w panels
- The larger panels have MC4 compatible solar cable connectors included
- 5 Year Warranty
| Max Power Pm(W) | 180 |
| Power Tolerance % | ± 3% |
| Max Power Voltage Vm(V) | 19.3 |
| Max Power Current Im(A) | 9.33 |
| Open Circuit Voltage Voc(V) | 24.2 |
| Short Circuit Current Isc(A) | 9,98 |
| Max System Voltage (VDC) | 1000 |
| Dimensions (mm) | 1482 x 680 x 35 |
| Weight (kg) | 12 |
| Test Conditions | 1000W/m² , AM1.5 , 25°C |
