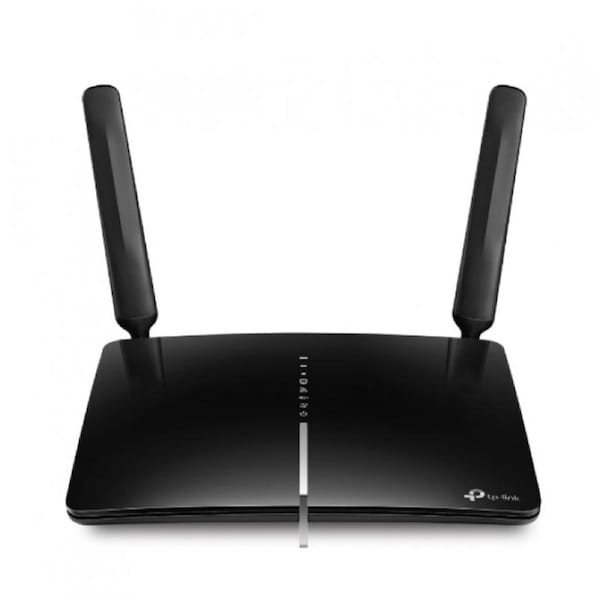

TP-Link Archer MR600 AC1200 Wireless Dual Band 4G+ LTE Gigabit Router

Overview

• TP-Link Archer MR600 AC1200 Wireless Dual Band 4G+ LTE Gigabit RouterIEEE 80
• 2.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz
• Network Types: 4G FDD-LTE/TDD-LTE, 3G DC-HSPA+/HSPA/UMTS
• Interface: 3x 10/100/1000Mbps LAN Ports, 1x 10/100/1000Mbps LAN/WAN Port, 1x Micro SIM Card Slot
• Antenna: 2x Detachable 4G LTE Antennas
• Tether App
• 3 Years Limited Warranty

TP-Link Archer MR600 4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router (OneMesh)

• TP-Link's First 4G+ Router - supports 4G+ Cat6 to boost the data speeds of up to 300Mbps*
• Plug a SIM card and play - no configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests
• MU-MIMO supported - simultaneous data streams increase WiFi throughput and network efficiency.
• Supports TP-Link OneMesh - co-works with TP-Link OneMesh products to create a flexible and cost-efficient Mesh network
• Better Signal for Connections Everywhere - enjoy stable and efficient connections to every device thanks to the two external LTE antennas
• Full Gigabit Ports - provides reliable wired connections for bandwidth-intensive devices such as game consoles and STB
• Wi-Fi router mode - plug an Ethernet cable into the LAN/WAN port for flexible access if you can't get a 4G connection
• Easy setup and management all by Tether app

Hardware Features

Interface

• 1x 10/100/1000 Mbps LAN/WAN Port
• 3x 10/100/1000 Mbps LAN Ports
• 1 x Micro SIM Card Slot

Button

• WPS Button
• Reset Button
• WiFi On/Off Button
• Power On/Off Button

External Power Supply

• Power Adapter: Input Power 100-240v-50/60 Hz 0.6A
• Output parameter 12VDC 1.5A

Dimensions (WxDxH)

• 9.0x6.3x1.5 in (229x160x37 mm)

Antenna

• 2x Detachable 4G LTE Antennas

Wireless Features

Wireless Standards

• IEEE 802.11a/n/ac 5 GHZ
• IEEE 802.11b/g/n 2.4 GHz

Frequency

• 2.4 GHz
• 5 GHz

Signal Rate

• 300 Mbps at 2.4 GHz
• 867 Mbps at 5 GHz

Reception Sensitivity

• 5 GHz: 11a 54M: -74 dBm
• 11ac HT20:-66 dBm
• 11ac HT40:-63 dBm
• 11ac HT80:-59 dBm
• 11n HT20: -73 dBm
• 11n HT40:-70 dBm
• 2.4 GHz: 11g 54M: -74 dBm
• 11n HT20:-72 dBm
• 11n HT40:-69 dBm

Transmit Power

• < 20 dBm (2.4 GHz)
• < 23 dBm (5 GHz)

Wireless Functions

• Enable/Disable Wireless Radio
• Wireless Schedule
• WMM
• Wireless Statistics

Wireless Security

• 64/128-bit WEP
• WPA/WPA2
• WPA-PSK/WPA2-PSK encryptions

Network Type

• 4G: FDD-LTE: B1/B3/B5/B7/B8/B20/828 (2100/1800/850/2600 1900/800/700 MHZ)
• TDD-LTE: B38/B40/B41 (2600/2300/2500 MHZ)
• 3G: DC-HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHZ)

Software Features

Quality of Service

• Bandwidth Control

Security

• DoS
• IPv4 SPI Firewall
• IPv6 Firewal
• IP and MAC Address Binding
• Access Control

WAN Type

• Dynamic IP/Static
• IP/PPPOE/PPTP(Dual Access)
• L2TP(Dual Access)

Management

• TP-Link Cloud
• Local Management
• Remote Management

DHCP

• Server
• DHCP Client List
• Address Reservation

Port Forwarding

• ALG
• Virtual Server
• Port Triggering
• UPnP
• DMZ

Dynamic DNS

• TP-Link
• DynDns
• NO-IP

VPN

• PPTP VPN
• IPSec VPN
• OpenVPN

Access Control

• Parental Control
• Local Management Control

Firewall Security

• DOS
• SPI Firewall
• IP Address Filter/Domain Filter
• IP and MAC Address Binding

Protocols

• IPv4
• IPv6

Guest Network

• 2.4 GHz Guest Network x 1
• 5 GHz Guest Network x 1

Others

Certification

• CE
• RoHS

Package Contents

• 4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router Archer MR600 Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide

System Requirements

• Microsoft Windows 98SE/NT/2000/XP/Vista/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
• Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
• Micro SIM Card

Environment

• Operating Temperature: 0C-40C (32F-104F)
• Storage Temperature: -40C~70C (-40F~158F)
• Operating Humidity: 10%-90% non-condensing
• Storage Humidity: 5%~90% non-condensing

Specifications

• Weight: 1.2190
