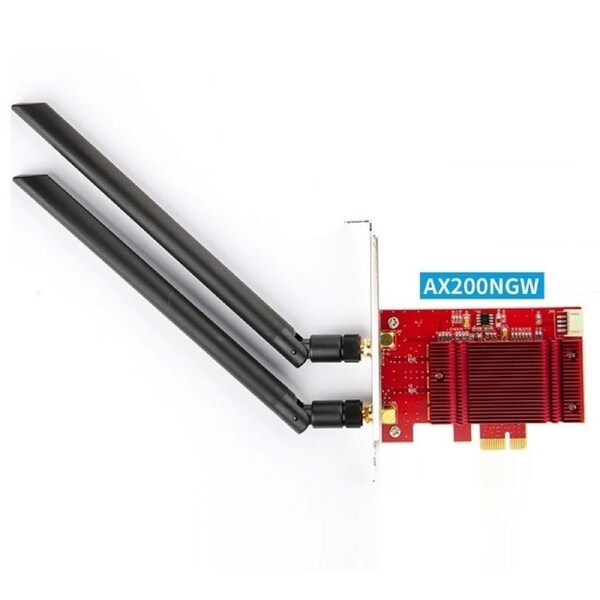

[AX200NGW-HS] Intel AX200 WiFi 6 Dual Band PCIE Desktop Wireless Card with Heat Sink WXTUP

Intel Wi-Fi 6 AX200 802.11ax Dual band MU-MIMO Wifi Network Bluetooth 5.0 Card - Nearly 3X higher peak data rates and up to 4X capacity.

*Low profile bracket included.

• Model: Intel AX200NGW Desktop wireless card
• Dual band:2.4Ghz:573Mbps / 5Ghz(160Mhz) :2400Mbps (You router must support 802.11AX)
• Max speed: if your router support 802.11 AX, the max speed can up to 2.4Gbps.
• Bluetooth Version:Bluetooth 5.0
• Interface:PCIE (X1/16 slot), Not support iMac.
• Supported Operating Systems:Only work with Microsoft Windows 10,64bit , and it is drive free.Note: Not support Windows 7/8/8.1/Linux .

Package :

• 1x AX200 Wireless Card for desktop
• 2x AC Dual Band Antenna
• 1x Bluetooth cable
• 1x screw

The Intel® Wi-Fi 6 AX200 adapter is designed to support the upcoming IEEE 802.11ax standard - Wi-Fi 6 technology and the Wi-Fi Alliance Wi-Fi 61 certification. The product supports 2x2 Wi-Fi 6 technology, including new features such as UL and DL OFDMA and 1024QAM, delivering data rates of up to 2.4Gbps2 and increased network capacity as well as Bluetooth® 5 technology support. These new features deliver a significant improvement in user experience in dense deployments, supporting fast uploads and downloads, lower latency and longer battery life compared to solutions supporting 802.11ac. Combined with Intel® Core™ processors and exceptional Intel wireless innovations, the Intel® Wi-Fi 6 AX200 module can provide Gigabit wireless speed2 and dramatically improve your connected experience at home, work, or on the go.

1st Generation Intel® Wi-Fi 6 Wireless

• Model: AX200NGW Official version
• Dual band: 2.4Ghz / 5Ghz(160Mhz)
• Speed up to 1730Mbps (The router must on 160Mhz);
• The Intel AX200 M.2 2230 form factor, supporting a maximum speed of 2.4 Gbps on the 5 GHz (160 MHz) band and around 574 MB/s using 2.4 GHz band (802.11ax in both).
• With Bluetooth 5.0, Support MU-MIMO
• Interface:NGFF(M.2)
• Supported Operating Systems: Only work on Microsoft Windows 10* 64bit,

Please Note: Not support Windows 7/8/8.1The module supports MU-MIMO, 2x2 TX/RX channels with two antennae and Bluetooth 5.

Experience the Intel® Difference

• Worldwide Regulatory Support Intel® Dynamic Regulatory Solution
• Wireless Functionality in Pre-boot Environment
• Wirelessly Project to the Big Screen

Business-Class Wireless

• Intel® vPro™ Technology
• Intel® Active Management Technology

Intel® Wi-Fi 6 AX200 Module Technical Specifications

General

Dimensions (H x W x D)

• M.2 2230: 22mm x 30mm x 2.4mm [1.5mm Max (Top Side)/ 0.1mm Max (Bottom Side)]

Weight

• M.2 2230: 2.83 +/- 0.3 g

Radio ON/OFF Control

• Supported

Connector Interface

• M.2: PCIe

Operating Temperature (Adapter Shield)

• 0°C to +80°C

Humidity Non-Operating

• 50% to 90% RH non-condensing (at temperatures of 25°C to 35°C)

Operating Systems

• Microsoft Windows* 10, Linux*, Chrome OS*

Wi-Fi Alliance

• Wi-Fi CERTIFIED* a, b, g, n, ac with wave 2 features, WMM*, WMM*-Power Save, WPA*, WPA2*, WPS*, PMF*, Wi-Fi Direct*, Wi-Fi Miracast*, Wi-Fi Agile Multiband*, Wi-Fi Optimized Connectivity*, Wi-Fi Location, Passpoint*, Wi-Fi Aware*, and Wi-Fi TimeSync*

IEEE WLAN Standard

• IEEE 802.11-2016 and select amendments (selected feature coverage)
  IEEE 802.11a, b, g, n, ac, ax, d, e, h, i, k, r, u, v, w, ai; Fine Timing Measurement based on 802.11-2016

Bluetooth®

• Bluetooth® 5

Security Features

Security Methods

• WPA* and WPA2* Personal and Enterprise; WPA3* (pending OS support)

Authentication Protocols

• 802.1X EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0 -MSCHAPv2 (EAP-SIM, EAP-AKA, EAP-AKA')

Encryption

• 64-bit and 128-bit WEP, TKIP, 128-bit AES-CCMP, 256-bit AES-GCMP

Compliance

Regulatory

• For a list of country approvals, please contact your local Intel representatives.

US Government

• FIPS10 140-2, FISMA

Product Safety

• UL, C-UL, CB (IEC 60950-1)

Product Name

• Intel® Wi-Fi 6 AX200 AX200NGW

Model Number

• AX200NGW

Version

• 802.11ax, 2x2, Bluetooth® 5, M.2 2230
