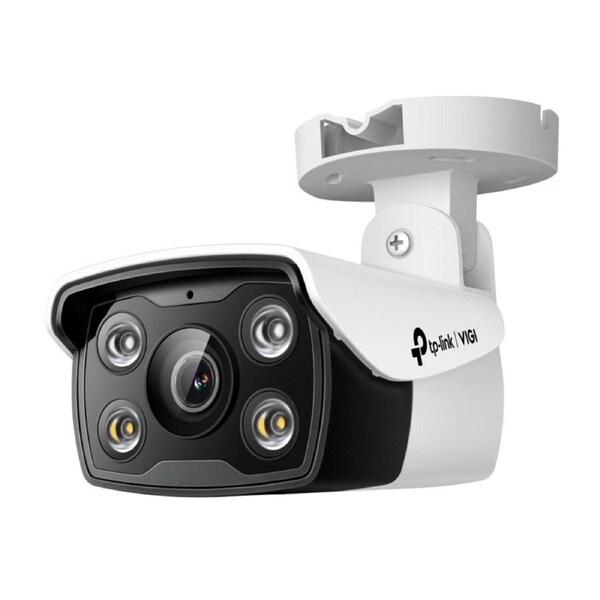

[VIGI C340(6mm)] VIGI 4MP Outdoor Full-Colour Bullet Network Camera

TP-Link VIGI C340, VIGI 4MP Outdoor Full-Colour Bullet Network Camera

• 4MP High Definition: The camera comes with 4MP-more than enough pixels to pick up some of the more discrete details.
• 24h Full-Colour:Obtain 24-hour colour details, even in pitch-black conditions, via a high-sensitivity sensor and included spotlight LEDs.
• Waterproof:Reliable IP66 for stable outdoor performance.
• Smart Detection (human detection, motion detection, area intrusion, line-crossing, video tampering): Receive notifications and check feeds when someone crosses a boundary, enter an area you've set, or obstructs the camera.
• H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
• PoE/12V DC: Two power supply ways not only give you more convenience but also make your wiring remarkably easy.
• VIGI App: Manage your security from the palm of your hand with the VIGI app.

CAMERA

• Image Sensor :1/3" Progressive Scan CMOS
• Shutter Speed :1/3 to 1/10000 s
• Slow Shutter :Yes
• Minimum Illumination :0 lux with IR/white Light
• Day/Night Mechanism :IR Cut Filter
• Day/Night Switch :Day/Night/Auto/Schedule-Switch
• Lens :Fixed focal lens (2.8 mm / 4 mm / 6 mm)
• Aperture :2.8 mm: F1.6
  4 mm: F1.6
  6 mm: F1.6
• Lens Mount :M12
• Viewing Angle :(2.8mm) Horizontal FOV: 102°, Vertical FOV: 55°, Diagonal FOV: 122°
  (4mm) Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°
  (6mm) Horizontal FOV: 50°, vertical FOV: 27°, Diagonal FOV: 59°
• IR Working Distance :30m
• Illumination Distance :30 m
• Digital Noise Reduction :3D DNR
• WDR :DWDR
• Weatherproof Rating :IP66

LENS

• Type :Fixed Focal Lens
• Focal Length :2.8 mm/4 mm/6 mm
• Aperture :2.8 mm: F1.6
  4 mm: F1.6
  6 mm: F1.6
• FOV :2.8mm:
  Horizontal FOV: 102°, Vertical FOV: 55°, Diagonal FOV: 122°
  4mm:
  Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°
  6mm:
  Horizontal FOV: 50°, vertical FOV: 27°, Diagonal FOV: 59°
• Lens Mount :M12
• DORI Distance :2.8 mm
  Detect: 64 m (209 ft)
  Observe: 27 m (87 ft)
  Recognize: 13 m (42 ft)
  Identify: 6 m (21 ft)
  4 mm
  Detect: 80 m (262 ft)
  Observe: 33 m (109 ft)
  Recognize: 16 m (52 ft)
  Identify: 8 m (26 ft)
  6 mm
  Detect: 128 m (420 ft)
  Observe: 53 m (175 ft)
  Recognize: 26 m (84 ft)
  Identify: 13 m (42 ft)

VIDEO

• Max. Resolution :2560 X 1440
• Main Stream :Frame Rate?
  50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
  60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
  Resolution:
  2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
  Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
• Sub-Stream :Frame Rate?
  50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
  60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
  Resolution:
  640x480, 352x288, 320x240
  Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
• Bit Rate Control :CBR, VBR
• Video Compression :Main Stream: H.265+/H.265/H.264+/H.264
  Sub-Stream: H.265/H.264
• H.264 Type :Main Profile/High Profile
• H.264+ :Main Stream Supported
• H.265 Type :Main Profile
• H.265+ :Main Stream Supported
• Video Bit Rate :Main Stream: 256 Kbps to 4 Mbps
  Sub-Stream: 64 Kbps to 512 Kbps

ILLUMINATOR

• IR LED :Quantity: 2
  Range: 30m
  Wavelength: 850nm
• White LED :Quantity: 2
  Range: 30m
• Illuminator On/Off Control :Auto/Scheduled/Always on/Always off

Angle Adjustment (Manual)

• Range :Pan: -90° to 90°,
  Tilt: -90° to 90°


• Image Settings :Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)
• Image Enhancement :BLC/3D DNR/HLC/SmartIR
• Wide Dynamic Range :DWDR
• SNR :? 52 dB
• Image Parameters Switch :Yes
• Privacy Mask :Up to 4 Masks
• ROI :1 Region
• OSD Setting :Yes

AUDIO

• Audio Communication :Two-Way Audio
• Audio Input :Yes
• Audio Output :Yes
• Audio Compression :Yes
• Audio Sampling Rate :8KHz
• Environment Noise Filtering :Yes
• Audio Bit Rate :64 Kbps(G.711 alaw)

NETWORK

• Security :Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
• Network Storage :NAS (NFS, SMB/ CIFS)
• Protocol :TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
• API :ONVIF
• Simultaneous Live View :3 Main Streams & 3 Sub-Streams
• Client :VIGI App, VIGI Security Manager
• Web Browser :Google Chrome® 57 and above
  Firefox® 52 and above
  Safari® 11 and above
  Microsoft® Edge 91 and above
• Cloud :Yes
• ONVIF :Yes

INTERFACES

• Network Interface :1 RJ45 10/100M Self-Adaptive Ethernet Port
• Audio Input :Built-in Microphone
• Audio Output :Built-in Speaker
• Alarm :N/A
• Reset Button :Yes
• Power :DC Power Port
• Button :Reset Button
• On-board Storage :Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB
• Built-in Microphone :Yes; Records Anything Going on within a 15-ft Radius of the Camera
• Built-in Speaker :Yes
• Audio :N/A

ALARM AND EVENT MANAGEMENT

• Smart Event :Area Intrusion Detection, Line-Crossing Detection, People Detection
• Basic Event :Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
• Alarm Linkage :Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
