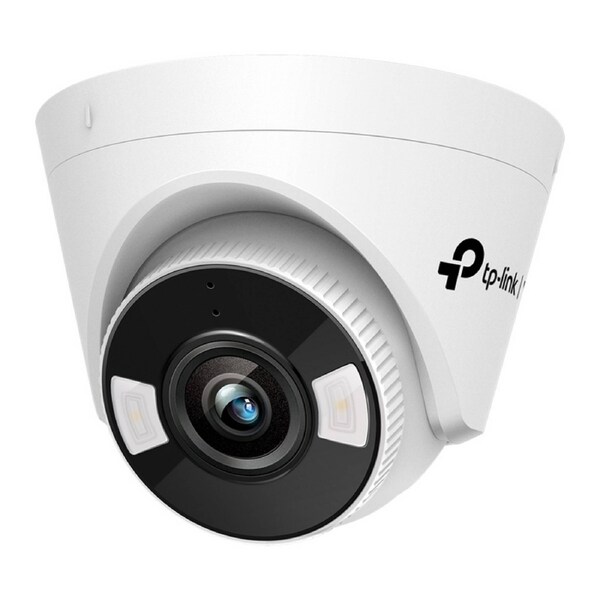

[VIGI C450(2.8mm)] VIGI 5MP Full-Colour Turret Network Camera

TP-Link VIGI C450, VIGI 5MP Full-Colour Turret Network Camera

• 5MPSuper-HighDefinition: The camera comes with 5MP-more than enough pixels to pick up some of the more discrete details.
• 24h Full-Colour:Obtain 24-hour colour details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
• Human & Vehicle Classification: Distinguisheshumans and vehicles from other objects, so you receive more accurate event notifications.
• Smart Detection: Actively detects abnormal events like area intrusion and line-crossing, sending notifications to you instantly.
• People & Vehicle Analytics:Quickly find peopleandvehicles of interest using a series of attributes,allowing you to improve search efficiency§.
• ActiveDefense:Warn potential intruders instantly with sound and light when abnormal events.
• Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere.
• Corridor Mode:Allows you to change the image aspect ratio from 16:9 to 9:16, andhelps to monitor long and narrow areas.
• H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
• Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve their quality which is vital to your monitoring, including Smart IR, True WDR, 3D DNR, and Night Vision.
• PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
• Flexible Management and Storage: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager.Local storage is available for each method, as well as onboard storage with an SD card slot (up to 256 GB).

CAMERA

• Image Sensor :1/2.7" Progressive Scan CMOS
• Shutter Speed :1/3 to 1/10000 s
• Slow Shutter :Yes
• Minimum Illumination :0.005 Lux; 0 Lux with IR/white light
• Day/Night Mechanism :IR Cut Filter
• Day/Night Switch :Day/Night/Auto/Schedule-Switch

LENS

• Type :Fixed Focal Lens
• Focal Length :2.8/4 mm
• Aperture :2.8 mm: F1.6
  4 mm: F1.6
• FOV :2.8mm:
  Horizontal FOV: 109°, Vertical FOV: 57°, Diagonal FOV: 128°
  4mm:
  Horizontal FOV: 90°, Vertical FOV: 48°, Diagonal FOV: 107°
• Lens Mount :M12*P 0.5
• DORI Distance :2.8 mm
  Detect: 64 m (209 ft)
  Observe: 27 m (87 ft)
  Recognize: 13 m (42 ft)
  Identify: 6 m (21 ft)
  4 mm
  Detect: 80 m (262 ft)
  Observe: 33 m (109 ft)
  Recognize: 16 m (52 ft)
  Identify: 8 m (26 ft)

VIDEO

• Max. Resolution :2880 X 1620
• Main Stream :Frame Rate?
  50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
  60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
  Resolution:
  2880x1620,2688x1520, 2304x1296, 2048x1280, 1920x1080,1280x720
  Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
• Sub-Stream :Frame Rate?
  50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
  60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
  Resolution:
  704x576,640x480, 352x288, 320x240
  Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
• Bit Rate Control :CBR, VBR
• Video Compression :Main Stream: H.265+/H.265/H.264+/H.264
  Sub-Stream: H.265/H.264
• H.264 Type :Main Profile/High Profile
• H.264+ :Main Stream Supported
• H.265 Type :Main Profile
• H.265+ :Main Stream Supported
• Video Bit Rate :Main Stream: 256 Kbps to 6 Mbps
  Sub-Stream: 64 Kbps to 512 Kbps

ILLUMINATOR

• IR LED :Quantity: 2
  Range: 30m
  Wavelength: 850nm
• White LED :Quantity: 2
  Range: 30m
• Illuminator On/Off Control :Auto/Scheduled/Always on/Always off

Angle Adjustment (Manual)

• Range :Pan: 0° to 360°, Tilt: 0° to 85°


• Image Settings :Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
• Image Enhancement :BLC/3D DNR/HLC/SmartIR
• Wide Dynamic Range :120 dB
• SNR :? 52 dB
• Image Parameters Switch :Yes
• Privacy Mask :Up to 4 Masks
• ROI :1 Region
• OSD Setting :Yes

AUDIO

• Audio Communication :Yes
• Audio Input :Yes
• Audio Output :Yes
• Audio Compression :Yes
• Audio Sampling Rate :8KHz
• Environment Noise Filtering :Yes
• Audio Bit Rate :64 Kbps(G.711 alaw)

NETWORK

• Security :Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
• Protocol :TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
• Network Storage :NAS (NFS, SMB/ CIFS)
• API :Open Network Video Interface (Profile S)
• Simultaneous Live View :3 Main Streams & 3 Sub-Streams
• Client :VIGI App, VIGI Security Manager, VIGI NVR, Web
• Web Browser :Google Chrome® 57 and above
  Firefox® 52 and above
  Safari® 11 and above
  Microsoft® Edge 91 and above
• Cloud :Yes
• ONVIF :Yes

INTERFACES

• Network Interface :1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
• Alarm :N/A
• Reset Button :Yes
• Power :DC Power Port
• On-board Storage :Built-In Memory Card Slot, Support MicroSD Card, up to 256 GB
• Built-in Microphone :Yes; Records Anything Going on within a 15-ft Radius of the Camera
• Built-in Speaker :Yes
• Audio :N/A

ALARM AND EVENT MANAGEMENT

• Smart Event :Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Loitering Detection
• Basic Event :Motion Detection, Video Tampering Detection, Exception ( Illegal Login), Scene Change Detection
• Alarm Linkage :Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
• Linkage Method :N/A
• Output Notification :Message Push

Deep Learning Function

• Multi-Target-Type Detection :Supports Simultaneous Detection and Capture of Human Body and Vehicle
• Face Capture :N/A
• Face Comparison :N/A

GENERAL
