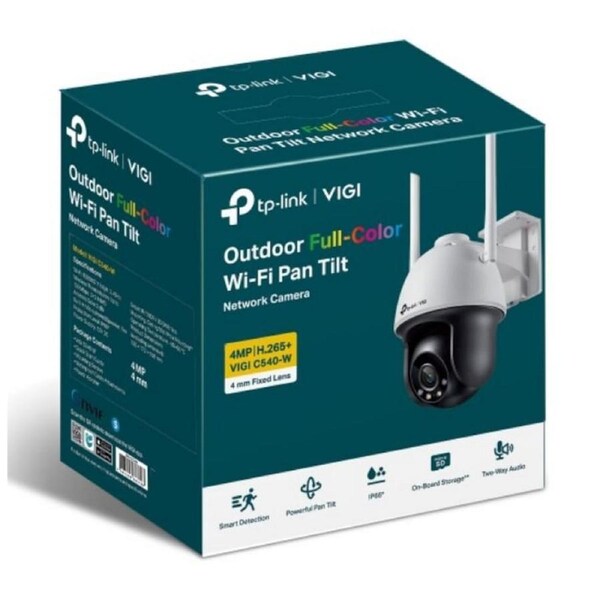

[VIGI C540-W(4mm)] VIGI 4MP Outdoor Full-Colour Wi-Fi Pan Tilt Network Camera

TP-Link VIGI C540-W VIGI 4MP Outdoor Full-Colour Wi-Fi Pan Tilt Network Camera

• 4MP High Definition: The camera comes with 4MP-more than enough pixels to pick up some of the more discrete details.
• 24h Full-Colour: Obtain 24-hour colour details, even in pitch-black conditions, via a high-sensitivity sensor and included spotlight LEDs.
• Powerful Pan Tilt: Customised patrol routes and auto-tracking provide more intelligent options to monitor key areas and improve security within your property.
• Wireless Outdoor Connection: Simple and quick deployment with Wi-Fi signals.
• Waterproof: Reliable IP66 for stable outdoor performance.
• Smart Detection (motion detection, area intrusion, line-crossing, video tampering): Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.
• H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
• VIGI App: Manage your security from the palm of your hand with the VIGI app.

CAMERA

• Image Sensor :1/3" Progressive Scan CMOS
• Lens :Fixed focal lens (4 mm)
• Aperture :4 mm: F1.6
• Lens Mount :M12
• Viewing Angle :(4mm) Horizontal FOV: 79°Vertical FOV: 43°Diagonal FOV: 93°
• Digital Zoom :Yes
• Day/Night Mechanism :IR Cut Filter
• IR Working Distance :30m
• Illumination Distance :30 m
• Minimum Illumination :0 lux with IR/white Light
• Pan/Tilt Range :Pan: 0° to 350°, Tilt: 0° to 120°
• Weatherproof Rating :IP66
• Digital Noise Reduction :3D DNR
• WDR :DWDR

NETWORK

• Security :Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
• Protocol :TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
• Wireless Rate :11 Mbps (802.11b)
  54 Mbps (802.11g)
  150 Mbps (802.11n)
• Frequency :2.4 GHz
• Wireless Security :WPA/WPA2-PSK
• API :ONVIF
• Simultaneous Live View :3 Main Streams & 3 Sub-Streams

GENERAL

• Package Contents :VIGI Network Camera
  Quick Start Guide
  Waterproof Cable Attachments
  Power Adapter
  Mounting Accessories
• Operating Temperature :-30-60 °C
• Certifications :CE, RCM, BSMI, VCCI, RoHS, NCC, JRF, KC
• Dimensions( H X W X D ) :120 x 172 x 198 mm
• Material :Plastic
• General Features :Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
• Power Supply :12V DC ± 5%, 5.5mm Coaxial Power Plug
• Power Consumption :12V DC: Max 15.5W

VIDEO/IMAGE

• Video Compression :Main stream: H.265+/H.265/H.264+/H.264
  Sub-Stream: H.265/H.264
• Frame Rate & Resolutions :Main Stream
  Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
  Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080

  Sub-Stream
  Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
  Resolution: 640x480, 352x288, 320x240

• Video Streaming :Main Stream
  Sub-Stream
• Image Settings :Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software
• Image Enhancement :BLC/3D DNR/Prevent Overexposure to Infrared Light
• Video Bit Rate :Main Stream: 256 Kbps to 4 Mbps
  Sub-Stream: 64 Kbps to 512 Kbps

SMART FEATURE-SET

• Smart Event :Area Intrusion Detection, Line-Crossing Detection, Human Detection
• Basic Event :Motion Detection, Camera Tampering Detection, Exception ( illegal login)
• Linkage Method :Trigger Notification: ONVIF, HTTPS
• Region of Interest :1 Region

INTERFACES

• Network Interface :1 RJ45 10/100M Self-Adaptive Ethernet Port
• Audio Input :Built-in Microphone
• Audio Output :Built-in Speaker
• Button :Reset Button
• On-board Storage :Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB
