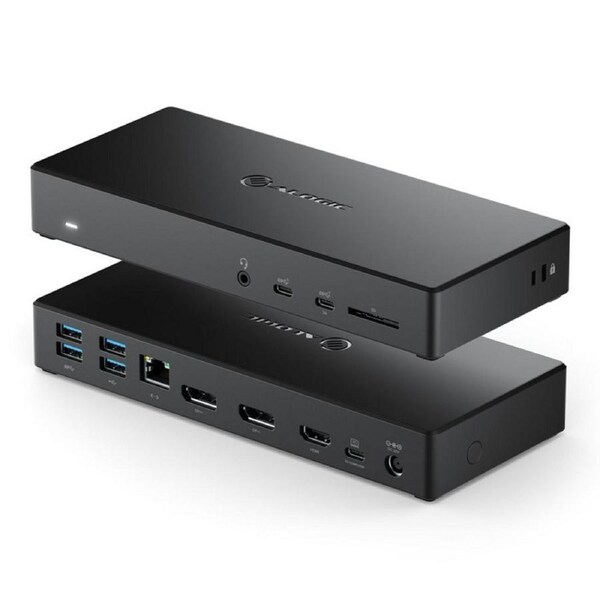

[DUCMA3] Alogic USB-C Triple Display DP Alt. Mode Docking Station MA3 100W PD DP/HDMI 4K

The ALOGIC USB-C MA3 Triple Display Dock is designed to enhance the capabilities of your USB-C laptop. Engineered for compatibility across all Windows (7 & above) USB-C enabled laptops, the Dock MA3 provides access to all the popular ports required for use at a work from home set up or at an office desk. The dock allows you to add up to three external monitors*, Gigabit Ethernet, 4 x USB-A (2 x USB 3.1 Gen 1/5G 2 x USB 2.0), 2 x USB-C (USB 3.1 Gen 2/10G) with Fast Charging, 3.5mm Combo Headphone Jack and SD Card Reader. The dock will also charge your USB-C laptop with up to 100W of power when in use making it the perfect companion to your laptop.

• Triple Display
  The MA3 dock can support up to three external displays via the 2 x DisplayPort (DP ++ / DP 1.4) and 1 x HDMI 2.0 outputs. The dock will support extension or mirroring across the three external displays when used with a Windows Laptop. *Refer to the resolution support table for details on different resolutions supported with the dock.
• Comprehensive Connectivity
  The MA3 dock supports up to three displays at resolutions of up to 4K*. In addition to the ability to connect external monitors, the dock provides access to a full range of connections with USB 3.1 Gen 2/10G USB-C and USB 3.1 Gen 1 and USB 2.0 USB-A Ports, Gigabit Ethernet, 3.5mm Combo Jack and SD Card
  The dock also features lock slots for securing it to a desk when being used in an office or a hot desking environment.
  *Refer to the resolution support table for details on different resolutions supported with the dock.
• 100W Laptop Charging/Power Delivery
  The dock charges your laptop with up to 100W of power when in use. This allows for a perfect single cable solution to add multiple displays, USB accessories, gigabit ethernet, headphone/Mic and charge your laptop all at the same time.
• Plug and Play: Driverless
  With a plug-and-play design, the MA3 dock becomes an extension of your laptop without the need for software or drivers.

Physical Characteristics
Product Dimensions: 2100 x 880 x 290mm (L x W x H)
Colour: Black
Weight (product): 360g
Materials: ABS

Warranty
2 Years

Output

• 2 x DisplayPort, 1 x HDMI
• 2 x USB-C 3.1 Gen 2 (10G) BC 1.2 and Apple Charging Support
• 2 x USB-A 3.1 Gen1 (5G)
• 2 x USB-A 2.0
• 1 x Audio / Microphone Jack
• 1 x RJ45 Ethernet 1Gbps
• 1 x SD Card

Input
1 x USB-C Port

Power
Up to 100W Power Delivery for Laptop Charging (170W AC Power Adapter Included in the box)
Resolution Up to 2 x 4K UHD 60Hz or 3 x 4K UHD 30Hz with DP 1.4 HBR3 with DSC enabled host*
*See resolution support tables below for maximum outputs

Device Compatibility
Compatible with all computers with a USB-C port
Requires computer operating Windows 7 and above

Compliance
FCC, CE, RoHS

Package Includes
1 x Dock
1 x 170W AC Power Adapter
1 x AU Power Cord
1 x User Manual

Resolution support table

• Host Bandwidth (2 Lane) Single Display Dual Display Triple Display MST Host (Independent/Extended) MST Host (Independent/Extended) HBR3 DP1.4 with DSC 5120x2880@60Hz 2*3840x2160@60Hz 3*3840x2160@60Hz (with reduced blanking) HBR3 DP1.4 without DSC 3840x2160@60Hz 2*3840x2160@30Hz 1*3840x2160@30Hz+
  2*1920x1080P@60Hz HBR2 DP1.2 3840x2160@30Hz 2*1920x1080P@60Hz 3*1920x1080P@30Hz
