[B760M H DDR4] Gigabyte Intel LGA 1700 m-ATX Motherboard, M.2, USB 3.2, Type-C

Gigabyte B760M H DDR4 Intel LGA 1700 m-ATX Motherboard, 4x DDR4 ~128GB, 2x PCI-E x16, 2x M.2, 4x SATA, 3x USB 3.2, 2x USB 2.0, 1x Type-C(NEED UPDATE

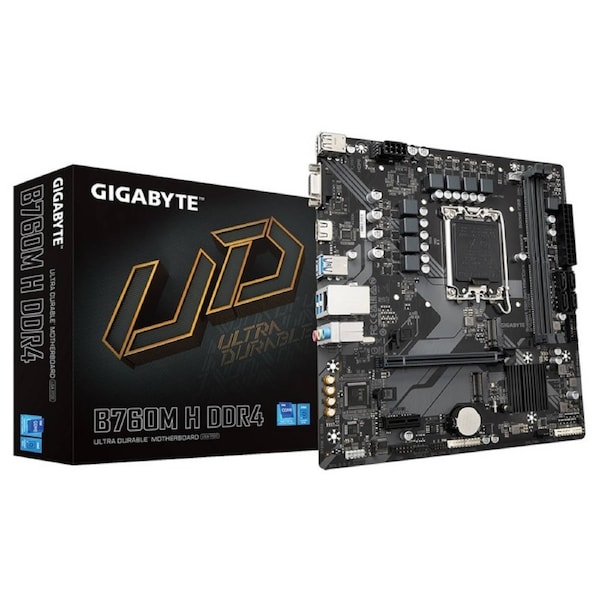

Gigabyte B760M H DDR4(rev. 1.0)

• Intel® Socket LGA 1700?Support 13th and 12th Gen Series Processors
• Unparalleled Performance?Hybrid 6+1+1 Phases Digital VRM Solution
• Dual Channel DDR4?2*DIMMs XMP Memory Module Support
• Next Generation Storage?2*PCIe 4.0 x4 M.2 Connectors
• EZ-Latch?PCIe 4.0x16 Slot with Quick Release Design
• Fast Networks?GbE LAN
• Extended Connectivity?HDMI, D-Sub
• Smart Fan 6? Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

• CPU :LGA1700 socket: Support for the 13th and 12thGeneration Intel® Core™, Pentium® Gold and Celeron® Processors
  L3 cache varies with CPU
  (Please refer to "CPU Support List" for more information.)
• Chipset :Intel® B760 Express Chipset
• Memory :Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
  2 x DDR4 DIMM sockets supporting up to 64GB (32 GB single DIMM capacity)of system memory
  Dual channel memory architecture
  Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate innon-ECC mode)
  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  Support for Extreme Memory Profile (XMP) memory modules
  (Please refer "Memory Support List" for more information.)
• Onboard Graphics :Integrated Graphics Processor-Intel® HD Graphics support:
  - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz


  * Support for HDMI 2.0 version and HDCP 2.3.


  (Graphics specifications may vary depending on CPU support.)
• Audio :Realtek® Audio CODEC
  High Definition Audio
  2/4/5.1/7.1-channel


  * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

  Support for S/PDIF Out
• LAN :Realtek® GbE LAN chip (1 Gbps/100 Mbps)
• Expansion Slots :CPU:
  - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
  Chipset:
  - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
• Storage Interface :CPU:
  - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
  Chipset:
  - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
  - 4 x SATA 6Gb/s connectors
  RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
• USB :Chipset:
  - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports availablethrough the internal USB header)
  - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available throughthe internal USB headers)
• Internal I/O Connectors :1 x 24-pin ATX main power connector
  1 x 8-pin ATX 12V power connector
  1 x CPU fan header
  2 x system fan headers
  1 x RGB LED strip header
  2 x M.2 Socket 3 connectors
  4 x SATA 6Gb/s connectors
  1 x front panel header
  1 x front panel audio header
  1 x S/PDIF Out header
  1 x USB 3.2 Gen 1 header
  2 x USB 2.0/1.1 headers
  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  1 x serial port header
  1 x Clear CMOS jumper
• Back Panel Connectors :2 x USB 2.0/1.1 ports
  1 x D-Sub port
  1 x HDMI port
  4 x USB 3.2 Gen 1 ports
  1 x RJ-45 port
  3 x audio jacks
• I/O Controller :iTE® I/O Controller Chip
• H/W Monitoring :Voltage detection
  Temperature detection
  Fan speed detection
  Water cooling flow rate detection
  Fan fail warning
  Fan speed control


  * Whether the fan speed control function is supported will depend on the cooler you install.

• BIOS :1 x 128 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features :Support for GIGABYTE Control Center (GCC)


  * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.


  Support for Q-Flash
• Bundled Software :Norton® Internet Security (OEM version)
  LAN bandwidth management software
• Operating System :Support for Windows 11 64-bit
  Support for Windows 10 64-bit
• Form Factor :Micro ATX Form Factor; 23.0cm x 21.5cm
