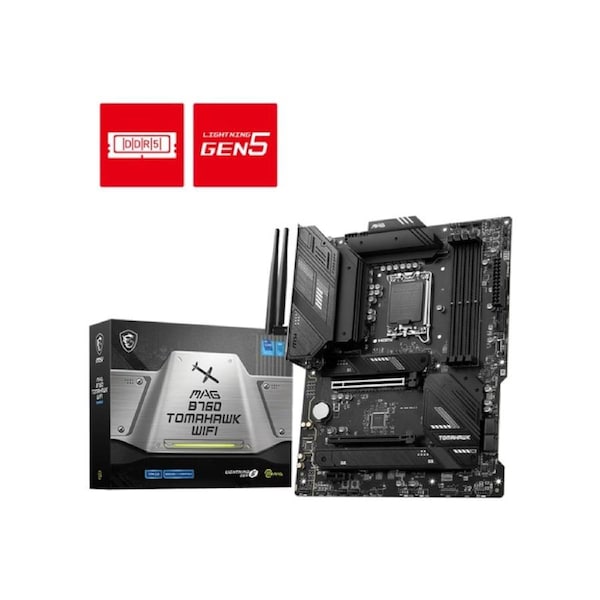

[MAG B760 TOMAHAWK WIFI] MSI LGA1700 DDR5 Intel Motherboard, PCIe 5.0, Wi-Fi 6E

MAG B760 TOMAHAWK WIFI LGA1700 DDR5 Motherboard

MAG B760 TOMAHAWK WIFI

• Supports 12th/ 13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
• Supports DDR5 Memory, up to 7000+(OC) MHz
• Enhanced Power Design: 12+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
• Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
• Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
• AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
• High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material

• CPU SUPPORT :Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
  LGA1700
• Memory :4x DDR5, Maximum Memory Capacity 192GB
  Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
  Max. overclocking frequency:
  • 1DPC 1R Max speed up to 7000+ MHz
  • 1DPC 2R Max speed up to 6600+ MHz
  • 2DPC 1R Max speed up to 6400+ MHz
  • 2DPC 2R Max speed up to 5600+ MHz
  Supports Dual-Channel mode
  Supports non-ECC, un-buffered memory
  Supports Intel® Extreme Memory Profile
• Onboard Graphics :1x HDMI™
  Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
  1x DisplayPort
  Support DP 1.4, maximum resolution of 8K 60Hz*
  *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
• EXPANSION SLOT :2x PCI-E x16 slot
  Supports x16/x4
  1x PCI-E x1 slot
  PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
  PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)
  PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
• Storage :3x M.2
  M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
  M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
  M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
  4x SATA 6G
• RAID :Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• USB :4x USB 2.0 (Rear)
  4x USB 2.0 (Front)
  2x USB 3.2 Gen1 Type A (Front)
  4x USB 3.2 Gen2 Type A (Rear)
  1x USB 3.2 Gen2 Type C (Front)
  1x USB 3.2 Gen2x2 Type C (Rear)
• LAN :Realtek® 2.5Gbps LAN
• WIRELESS / BLUETOOTH :Intel® Wi-Fi 6E
  The Wireless module is pre-installed in the M.2 (Key-E) slot
  Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
  Supports 802.11 a/ b/ g/ n/ ac/ ax
  Supports Bluetooth® 5.3, FIPS, FISMA
  * Wi-Fi 6E 6GHz may depend on every country's regulations and will be ready in Windows 11.
  ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
• Audio :Realtek® ALC897 Codec
  7.1-Channel USB High Performance Audio
  Supports S/PDIF output
• Internal I/O :1x Power Connector(ATX_PWR)
  2x Power Connector(CPU_PWR)
  1x CPU Fan
  1x Pump Fan
  5x System Fan
  2x Front Panel (JFP)
  1x Chassis Intrusion (JCI)
  1x Front Audio (JAUD)
  1x TBT connector (JTBT, supports RTD3)
  1x Tuning Controller connector(JDASH)
  2x Addressable V2 RGB LED connector (JARGB_V2)
  2x RGB LED connector(JRGB)
  1x TPM pin header(Support TPM 2.0)
  4x USB 2.0 ports
  2x USB 3.2 Gen1 Type A ports
  1x USB 3.2 Gen2 Type C ports
• LED FEATURE :4x EZ Debug LED
• BACK PANEL PORTS :
  1. USB 2.0
  2. DisplayPort 1.4
  3. USB 3.2 Gen 2 10Gbps Type-A
  4. 2.5G LAN Port
  5. Wi-Fi / Bluetooth Antenna
  6. HD Audio Connectors
  7. HDMI™ 2.1 Port
  8. USB 3.2 Gen 2x2 20Gbps Type-C
  9. Optical S/PDIF OUT
• OPERATING SYSTEM :Support for Windows® 11 64-bit, Windows® 10 64-bit
• PCB Dimension :ATX
  243.84mmx304.8mm
• BOX CONTENT
