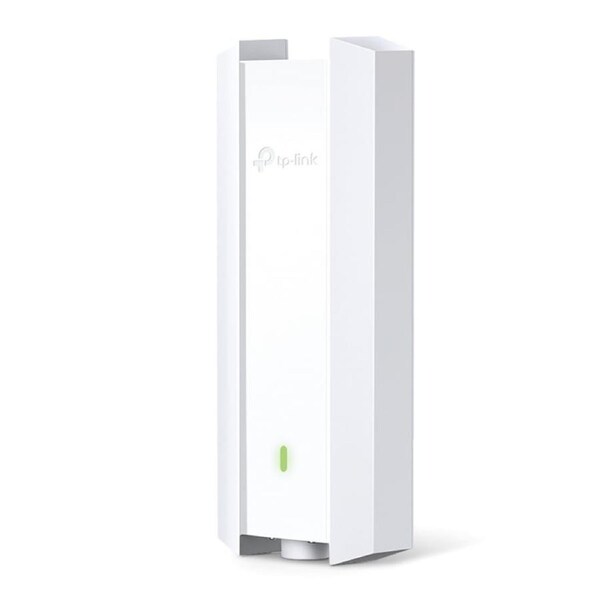

[EAP650-Outdoor] AX3000 Indoor/Outdoor WiFi 6 Access Point, 802.3at PoE+

TP-Link EAP650-Outdoor, AX3000 Indoor/Outdoor WiFi 6 Access Point

• Superior WiFi 6 Speeds:Delivers dual band speeds of up to 3 Gbps powered by the latest WiFi 6 technology.1
• Higher Network Efficiency:Enjoy faster speeds on more devices with less lag with OFDMA and MU-MIMO.
• 160 MHz Bandwidth Channel:Double the data at peak transmission times on a single stream with HE160.2
• Long-Range Coverage:Dedicated high-power amplifier and professional antennas with an IP67 weatherproof enclosure.
• Omada Mesh Technology:Enables wireless connectivity between access points for extended range and flexible deployment.3
• Stay Smooth with Seamless Roaming:Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points.3
• PoE Powered:Supports both 802.3at PoE+ and Passive PoE (adapter included) power supply for flexible installation.
• Centralised Cloud Management:Omada SDN integration manages the whole network locally or from the cloud via web UI or the Omada app.3
• Learn more about Omada Wi-Fi 6>?
• Learn more about Omada Cloud SDN>?
• Learn more about the Omada Outdoor WiFi Solution>?

HARDWARE FEATURES

• Interface :1x Gigabit Ethernet (RJ-45) Port (Support 802.3at PoE and Passive PoE)
• Button :Reset
• Power Supply :802.3at PoE / 48V Passive PoE
• Power Consumption :802.3at PoE / 48V Passive PoE
• Dimensions ( W x D x H ) :• 280.4x106.5x56.8 mm (without antenna & mounting kit)
• Antenna :• 2.4 GHz: 2x 4 dBi
  • 5 GHz: 2x 5 dBi
• Weatherproof Enclosure :IP67
• Mounting :Pole/Wall Mounting (Kits included)

WIRELESS FEATURES

• Wireless Client Capacity :250+⁶
• Wireless Standards :IEEE 802.11ax/ac/n/g/b/a
• Frequency :2.4 GHz, 5 GHz
• Signal Rate :• 802.11ax: 8 Mbps to 1201 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80)
  • 802.11ac: 6.5 Mbps to 1083.3 Mbps (MCS0-MCS9, NSS = 1 to
  2 VHT20/40/80)
  • 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, HT20/40)
  • 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  • 802.11b: 1, 2, 5.5, 11 Mbps
  • 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• Transmit Power :• CE: <20 dBm (2.4 GHz, EIRP), <30 dBm(5 GHz, EIRP)
  • FCC: <25 dBm (2.4 GHz), <25 dBm(5 GHz)
• Wireless Functions :• 1024-QAM
  • 4x Longer OFDM Symbol
  • OFDMA
  • Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
  • Enable/Disable Wireless Radio
  • Automatic Channel Assignment
  • Transmit Power Control (Adjust Transmit Power on dBm)
  • QoS (WMM)
  • MU-MIMO
  • Omada Mesh³
  • Seamless Roaming³
  • Band Steering
  • Load Balance
  • Airtime Fairness
  • Beamforming
  • Rate Limit
  • Reboot Schedule
  • Wireless Schedule
  • Wireless Statistics based on SSID/AP/Client
• Wireless Security :• Captive Portal Authentication³
  • Access Control
  • Wireless Mac Address Filtering
  • Wireless Isolation Between Clients
  • SSID to VLAN Mapping
  • Rogue AP Detection
  • 802.1X Support
  • WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

MANAGEMENT

• Omada App :Yes
• Centralized Management :• Omada Cloud-Based Controller
  • Omada Hardware Controller (OC300)
  • Omada Hardware Controller (OC200)
  • Omada Software Controller
• Cloud Access :Yes, through
  • Omada Cloud-Based Controller
  • OC300
  • OC200
  • Omada Software Controller
• Email Alerts :Yes
• Management MAC Access Control :Yes
• SNMP :v1, v2c
• System LoggingLocal/Remote Syslog :Yes
• SSH :Yes
• Web-based Management :Yes
• L3 Management :Yes
• Multi-site Management :Yes
• Management VLAN :Yes
• Zero-Touch Provisioning :Yes. Requiring the use of Omada Cloud-Based Controller

OTHERS

• Certification :CE, FCC, RoHS
• Package Contents :• Access Point EAP650-Outdoor
  • Passive PoE Adapter
  • Power Cord
  • Mounting Kits
  • Installation Guide
• System Requirements :Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
• Environment :• Operating Temperature: -30-70 ? (-22-158 ?)
  • Storage Temperature: -40-70 ? (-40-158 ?)
  • Operating Humidity: 10-90% RH non-condensing
  • Storage Humidity: 5-90% RH non-condensing
