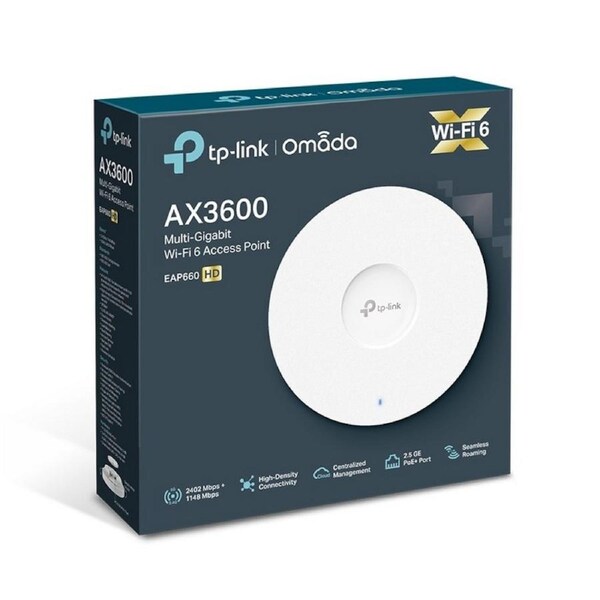

[EAP660 HD] AX3600 Wireless Dual Band Gigabit Ceiling Mount Access Point

TP-Link EAP660 HD AX3600 Wireless Dual Band Multi-Gigabit Ceiling Mount Access Point

• Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 1148 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 3550 Mbps Wi-Fi speeds.†
• High-Density Connectivity: 4x increased capacity to connect more devices simultaneously.†
• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)§, Centralised Cloud Management, and Intelligent Monitoring.
• Centralised Management: Cloud access and Omada app for ultra convenience and easy management.
• 2.5G Port: A 2.5 Gbps Ethernet port boosts total internet throughput.
• Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.?
• PoE+ Support: Supports Power over Ethernet (802.3at) for convenient deployment and installation.
• Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.

HARDWARE FEATURES

• Interface :1x 2.5 Gbps Ethernet Port (supports IEEE802.3at PoE)
• Button :Reset
• Power Supply :• 802.3at PoE
  • 12 V DC

• Power Consumption :• EU: 18.5 W
  • US: 21.5 W
• Dimensions ( W x D x H ) :9.6 x 9.6 x 2.5 in (243 x 243 x 64 mm)
• Antenna Type :Internal Omni
  • 2.4 GHz: 4x 4 dBi
  • 5 GHz: 4x 5 dBi
• Mounting :Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES

• Wireless Standards :IEEE 802.11ax/ac/n/g/b/a
• Frequency :2.4 GHz and 5 GHz
• Signal Rate :• 5 GHz: Up to 2402 Mbps
  • 2.4 GHz: Up to 1148 Mbps

• Wireless Functions :• 1024-QAM
  • 4x Longer OFDM Symbol
  • OFDMA
  • Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
  • Enable/Disable Wireless Radio
  • Automatic Channel Assignment
  • Transmit Power Control (Adjust Transmit Power on dBm)
  • QoS(WMM)
  • MU-MIMO
  • Seamless Roaming?
  • Omada Mesh?
  • Band Steering
  • Load Balance
  • Airtime Fairness
  • Beamforming
  • Rate Limit
  • Reboot Schedule
  • Wireless Schedule
  • Wireless Statistics based on SSID/AP/Client

• Wireless Security :• Captive Portal Authentication?
  • Access Control
  • Wireless Mac Address Filtering
  • Wireless Isolation Between Clients
  • SSID to VLAN Mapping
  • Rogue AP Detection
  • 802.1X Support
  • WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

• Transmission Power :• CE:
  <20 dBm(2.4 GHz, EIRP)
  <23 dBm(5 GHz, EIRP)

  • FCC:
  <26 dBm (2.4 GHz)
  <26 dBm (5 GHz)


MANAGEMENT

• Omada App :Yes
• Centralized Management :• Omada Cloud-Based Controller
  • Omada Hardware Controller (OC300)
  • Omada Hardware Controller (OC200)
  • Omada Software Controller
• Cloud Access :Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
• Email Alerts :Yes
• LED ON/OFF Control :Yes
• Management MAC Access Control :Yes
• SNMP :v1, v2c, v3
• System LoggingLocal/Remote Syslog :Local/Remote Syslog
• SSH :Yes
• Web-based Management :HTTP/HTTPS
• L3 Management :Yes
• Multi-site Management :Yes
• Management VLAN :Yes
• Zero-Touch Provisioning :Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS

• Certification :CE, FCC, RoHS
• Package Contents :• EAP660 HD
  • Power Adapter
  • Ceiling/Wall Mounting Kits
  • Installation Guide
• System Requirements :Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
• Environment :• Operating Temperature: 0-40 ? (32-104 ?)
  • Storage Temperature: -40-70 ? (-40-158 ?)
  • Operating Humidity: 10-90% RH non-condensing
  • Storage Humidity: 5-90% RH non-condensing
