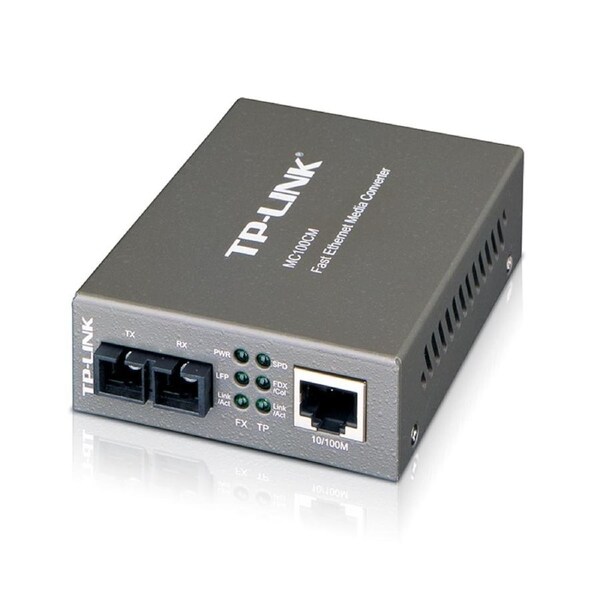

[MC100CM] 10/100Mbps RJ45 to 100Mbps multi-mode SC fiber Converter

TP-Link MC100CM 10/100Mbps Multi-Mode Media Converter

• Complies with 802.3u 10/100Base-TX, 100Base-FX standards
• Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
• Extends fiber distance up to 2km

MEDIA CONVERTER & MODULE

• Standards and Protocols :IEEE 802.3, IEEE 802.3u, IEEE 802.3x
• Basic Function :Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
  Full Duplex Flow Control (IEEE 802.3x)
  Half Duplex Flow Control (Backpressure)
  Extends fiber distance up to 2km
• Ports :1 100M SC/UPC port
  1 10/100M RJ45 port (Auto MDI/MDIX)
• Wave Length :1310nm
• Network Media 10BASE-T :UTP category 3, 4, 5 cable (maximum 100m)
  EIA/TIA-568 100? STP (maximum 100m)
• Network Media 100BASE-T :UTP category 5, 5e cable (maximum 100m)
  EIA/TIA-568 100? STP (maximum 100m)
• Network Media 100BASE-FX :Multi-mode Fiber
• LED Indicators :PWR, Link/Act
• Dimensions (W*D*H) :3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)
• Power Supply :External power supply
• Max Power Consumption :2.4W
• Safety & Emission :FCC, CE, RoHS
• Package Contents :• Media Converter MC100CM
  • Power Adapter
  • Installation Guide
• Environment :Operating Temperature: 0?~40? (32?~104?)
  Storage Temperature: -40?~70? (-40?~158?)
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing
