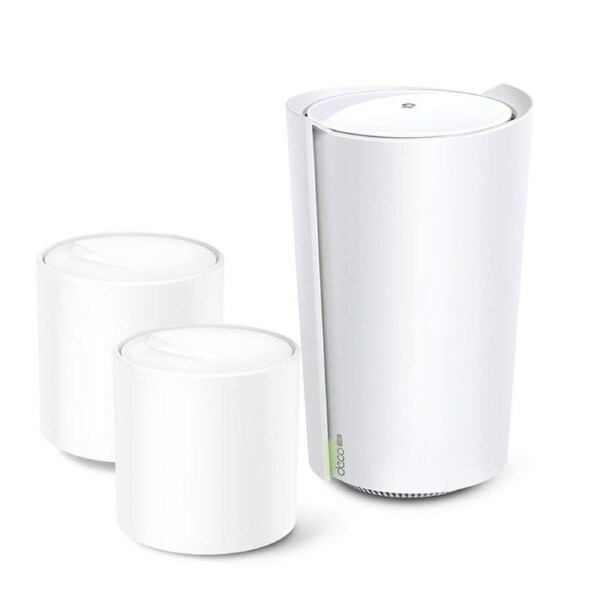

[Deco X73-DSL(3-pack)] AX5400 VDSL Whole Home Mesh Wi-Fi 6 Modem System

TP-Link Deco X73-DSL, AX5400 VDSL Whole Home Mesh Wi-Fi 6 Modem Router

• VDSL Modem Router + Mesh WiFi-Save a modem, and gain a better WiFi experience
• Super VDSL2 Speed -Supports Profile 35b tech to deliver downstream up to 350 Mbps*
• Superior WiFi 6 speeds up to 5.4Gbps-4804 Mbps (5 GHz) and 574 Mbps (2.4 GHz) dual-band WiFi with WiFi 6 technology
• Fully Gigabit Ethernet-4x Gigabit WAN/LAN Ethernet ports provide flexible internet access at warp speed**
• 3 RJ11 Ports- 1 DSL + 2 FXS
• TP-Link HomeShield-Real-time IoT and network protection, robust Parental Controls, and comprehensive reports§
• True Seamless Roaming Mesh WiFi-Walk through your home and stay connected with the fastest possible speeds†

SECURITY

• Network Security :SPI Firewall
  Access Control
  HomeShield Security^§
  Real-Time IoT Protection
  Malicious Site Blocker
  Intrusion Prevention System
  DDoS Attack Prevention
  Home Network Scanner
• Guest Network :1x 5 GHz Guest Network
  1x 2.4 GHz Guest Network
• WiFi Encryption :WPA-Personal
  WPA2-Personal
  WPA3-Personal

HARDWARE FEATURES

• VDSL2 Standards :ITU G.993.2, Up to 35b profile (POTS)
  ITU-T G.993.5 (G.vector)
  ITU-T G.998.4 (G.INP)
• ADSL Standards :Full-rate ANSI T1.413 Issue 2
  ITU-T G.992.1(G.DMT)
  ITU-T G.992.2(G.Lite)
• ADSL2 Standards :ITU-T G.992.3 (G.DMT.bis)
• ADSL2+ Standards :ITU-T G.992.5

WIRELESS

• Standards :Wi-Fi 6
  IEEE 802.11ax/ac/n/a 5 GHz
  IEEE 802.11ax/n/b/g 2.4 GHz
• WiFi Speeds :AX5400
  5 GHz: 4804 Mbps (802.11ax)
  2.4 GHz: 574 Mbps (802.11ax)
• WiFi Range :1-3 Bedroom Houses (1-pack)
  3-5 Bedroom Houses (2-pack)
  4-7+ Bedroom Houses (3-pack)
  TP-Link Mesh Technology
  Optional Ethernet backhaul work together to link Deco units to provide seamless coverage
  4x Antennas (Internal)
  Multiple antennas form a signal-boosting array to cover more directions and large areas
  Beamforming
  Concentrates wireless signal strength towards clients to expand WiFi range
• WiFi Capacity :High
  Dual-Band
  Distribute devices to different bands for optimal performance
  MU-MIMO
  Simultaneously communicates with multiple MU-MIMO clients
  OFDMA
  Simultaneously communicates with multiple WiFi 6 clients
  4 Streams
  More than enough bandwidth for connected devices
• Working Modes :DSL (only on Deco X73-DSL)
  Router
  Access Point

HARDWARE

• Ethernet Ports :4x Gigabit Ports Per Deco X73-DSL Unit
  2x Gigabit Ports Per Deco X73 Unit
  *All support WAN/LAN auto-sensing
• Buttons :RESET Button
• Ports and Connections :1 USB 3.0 port
  1 * DSL port (RJ-11)
  2 * FXS port (RJ-11)
  4 * Gigabit RJ45 auto-sensing WAN/LAN
  Compatibility
  VDSL 2 / ADSL 2+ / ADSL 2 / ADSL

SOFTWARE

• Protocols :IPv4
  IPv6
• Service Kits :HomeShield

• WAN Types :Dynamic IP
  Static IP
  PPPoE
  L2TP
  PPTP
  *available on all units
  PPPoA
  IPoA
  DS-Lite
  *available on Deco X73-DSL
• Quality of Service :HomeShield QoS
  QoS by Device
• Cloud Service :OTA Firmware Upgrade
  TP-Link ID
  DDNS
• NAT Forwarding :Port Forwarding
  UPnP
• IPTV :IGMP Proxy
  IGMP Snooping
  Bridge
  Tag VLAN
• DHCP :Address Reservation
  DHCP Client List
  Server
• DDNS :TP-Link
• Management :Deco App

TEST DATA

• WiFi Transmission Power :CE:
  ?20 dBm (2.4GHz)
  ?23 dBm (5GHz)

PHYSICAL

• Dimensions (WxDxH) :Deco X73-DSL:
  5.1 x 4.8 x 8.3in
  (130 x 123 x 210.5 mm)
  Deco X73:
  4.33 x 4.33 x 4.99 in
  (110 x 110 x 114 mm)
• Package Contents :1-pack
  1 Deco X73-DSL Unit
  1 RJ45 Ethernet Cable
  2 RJ11 DSL Cables
  1 External DSL Splitter
  1 Power Adapter
  1 Telephony Feature Guide
  Quick Installation Guide
  2-pack
  1 Deco X73-DSL Unit + 1 Deco X73 Unit
  1 RJ45 Ethernet Cable
  2 RJ11 DSL Cables
  1 External DSL Splitter
  2 Power Adapters
  1 Telephony Feature Guide
  Quick Installation Guide
  3-pack
  1 Deco X73-DSL Unit + 2 Deco X73 Units
  1 RJ45 Ethernet Cable
  2 RJ11 DSL Cables
  1 External DSL Splitter
  3 Power Adapters
  1 Telephony Feature Guide
  Quick Installation Guide

OTHERS

• Certification :Deco X73-DSL:
  CE, RoHS, RCM
  Deco X73:
  CE, RoHS, RCM
• Environment :Operating Temperature: 0°C~40°C (32°F~104°F)
  Storage Temperature: -40°C~60°C (-40 °F~140 °F)
  Operating Humidity: 10%~90% RH
  Storage Humidity: 5%~90% RH
