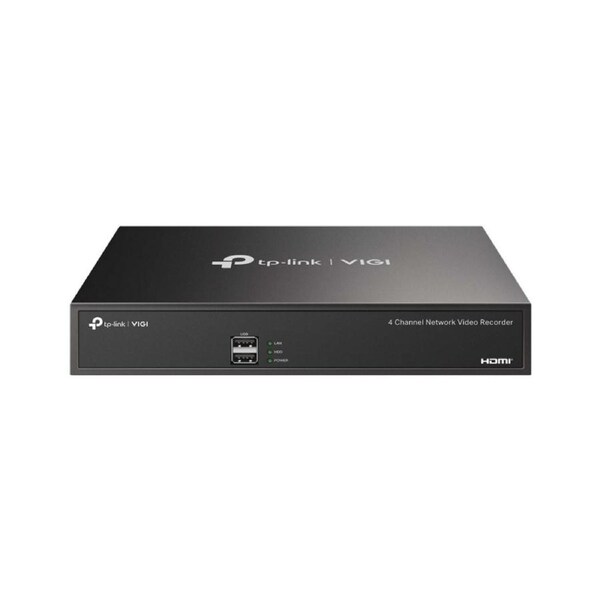

[VIGI NVR1004H] VIGI 4 Channel Network Video Recorder, 4-Channel Live View

TP-Link VIGI NVR1004H, VIGI 4 Channel Network Video Recorder

• 4-Channel Live View and 4K HDMI Video Output
• 2-ch @ 8MP/ 4-ch @ 4MP Decoding Capability
• 4-Channel SynchronousPlayback†
• 80 Mbps Incoming Bandwidth and60 Mbps Outgoing Bandwidth
• 1 SATA Interface (up to 10 TB) *
• H.265+ Compression Technology
• HDMI and VGA Simultaneous Output
• Remote Monitoring

Video and Audio

• IP Video Input :4-Channel
• Incoming Bandwidth :80 Mbps
• Outgoing Bandwidth :60 Mbps
• HDMI Output Resolution :1 Channel, Resolution: 3840 x2160/30Hz, 1920 x 1080/60Hz, 1680x 1050/60Hz, 1440 x 900/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz
• VGA Output Resolution :1 Channel, Resolution: 1920 x 1080/60Hz, 1680x 1050/60Hz, 1440 x 900/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz
• Video Output Mode :HDMI/VGA Simultaneous Output
• Multi-View Display :1/4

DECODING

• Audio Compression :G.711A/G.711U/G.726
• Video Compression :H.265+/H.265/ H.264+/H.264
• Record Resolution :8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
• Synchronous Playback :4-Channel
• Capability :2-ch @ 8MP, 4-ch @ 4MP

Record Management

• Record Mode :Manual Recording
  Scheduling Recording
  Motion Detection Recording
• Playback Mode :Instant Playback
  Regular Playback
  Tag Playback
  Event Playback
• Backup Mode :Regular Backup
  Video Clip Backup
• Playback Function :Play
  Pause
  Stop
  Fast Forward
  Fast Backward
  Play By Frame
  Full Screen
  Video Clip
  Export Clip
  Digital Zoom
  Lock Recording
  Audio On/Off

NETWORK

• Protocol :UPnP (Plug and Play), NTP (Network Timing)
• Mobile Phone Access :Android, iOS
• Web Browser :Chrome (57+), Firefox (52+), Edge (91+)
• Interoperability :ONVIF, CGI

External Interface

• Network Interface :1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
• USB Interface :2x USB 2.0
• Audio Interface :1, Audio In; 1, Audio Out
• Alarm In/Out :N/A
• Serial Interface :N/A
• Power :1x DC Jack
• Reset Button :1
• Speaker :N/A
• eSATA :N/A
• HDMI :1
• VGA :1

HARD DISK

• SATA :1 SATA Interface
• Capacity :Up to 10 TB Capacity for Each HDD*

Alarm

• General Alarm :Motion Detection
  Video Tampering
  Line-Crossing Detection
  Intrusion Detection
  Region Entering Detection
  Region Exiting Detection
  Object Abandoned/Removal Detection
  Vehicle Detection
  Human Detection
  Smart Frame
• Anomaly Alarm :Video Loss
  Offline and IP Conflict
  Disk Exception
  Login Exception
• Alarm Linkage :Recording
  White Light Alarm
  Buzzer
  Log
  Audible Alarm

GENERAL

• Storage Temperature :-40-70 °C
• Storage Humidity :10%~90% RH Non-Condensing
• Package Contents :VIGI Network Video Recorder
  Power Adapter
  HDD Screws
  Mouse
  Rubber Feet
  Quick Installation Guide
• Working Temperature :NVR: -10-55 °C
  Power Adapter: 0-40 °C
• Working Humidity :10%~90% RH Non-Condensing
• Dimensions( W X D X H ) :246.2 x 148.2 x 45 mm
• External Power Supply :DC 12V/1.5A
• Net Weight :0.59 kg
• Gross Weight :0.95 kg
• Power Consumption :4.25 W (Without Disk)
• Certifications :CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
