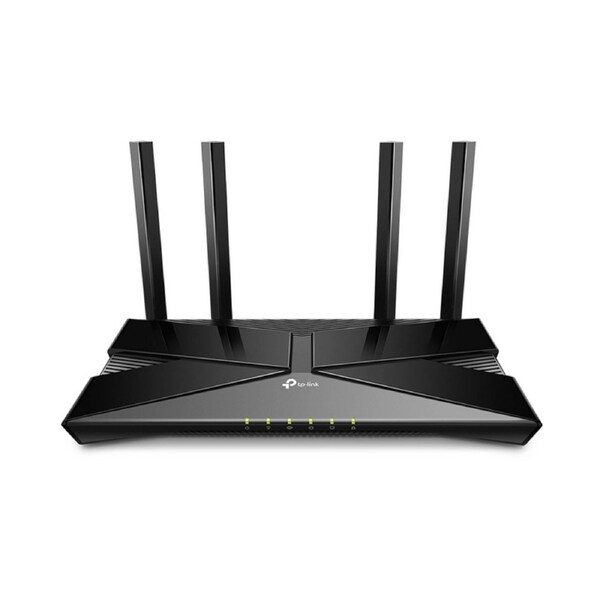

[Archer AX1800] Dual-Band Wi-Fi 6 Router, Super-Fast 1.8Gbps Wi-Fi, One Mesh

TP-Link Archer AX1800, AX1800 Dual-Band Wi-Fi 6 Router

• Super-Fast1.8Gbps Wi-Fi -Enjoy smooth 4K streaming anddownloading with super-fast Wi-Fi speeds of 1.8 Gbps.†
• Connect More Devices -Communicates withmore devices using OFDMA while simultaneously reducing lag.†
• Broader Coverage-Improvedalgorithm, beamforming, and high-performance antennasenhancethe Wi-Fi coverage performance.§
• Next-Gen Platform -The Next-Gen High-Efficiency Chipset provides fast and stable Wi-Fi while saving power consumption.?
• Parental Controls -Enjoy the most versatile yet free parental control features among all routers, including URL blocking, profile management, pausing, and more.
• Works with Most ISPs-Compatible with most ISPs with extra L2TP/PPTP support. IPTV support works with your existing TV over the Internet contract.
• OneMesh-Use with OneMesh extenders to get whole-home coverage and enjoy smooth roaming between signals.
• Easy Setup -Set up your router in minutes with the powerful TP-Link Tether App.
• Backward Compatible -Supports all previous 802.11 standards Wi-Fi devices.

WIRELESS

• Standards :Wi-Fi 6
  IEEE 802.11ax/ac/n/a 5 GHz
  IEEE 802.11ax/n/b/g 2.4 GHz
• WiFi Speeds :AX1800
  5 GHz: 1201 Mbps (802.11ax)
  2.4 GHz: 574 Mbps (802.11ax)
• WiFi Range :2-3 Bedroom Houses
  4x Fixed High-Performance Antennas
  Multiple antennas form a signal-boosting array to cover more directions and large areas
  Beamforming
  Concentrates wireless signal strength towards clients to expand WiFi range
• WiFi Capacity :High
  Dual-Band
  Allocate devices to different bands for optimal performance
  Airtime Fairness
  Improves network efficiency by limiting excessive occupation
  4 Streams
  Connect your devices to more bandwidth
• Working Modes :Router Mode
  Access Point Mode

HARDWARE

• Processor :Dual-Core CPU
• Ethernet Ports :1x Gigabit WAN Port
  4x Gigabit LAN Ports
• Buttons :WPS/Wi-Fi Button
  Power On/Off Button
  Reset Button
• Power :12 V ? 1 A

SECURITY

• WiFi Encryption :WPA
  WPA2
  WPA3
  WPA/WPA2-Enterprise (802.1x)
• Network Security :SPI Firewall
  Access Control
  IP & MAC Binding
  Application Layer Gateway
• Guest Network :1x 5 GHz Guest Network
  1x 2.4 GHz Guest Network
• VPN Server :OpenVPN
  PPTP

SOFTWARE

• Protocols :IPv4
  IPv6
• OneMesh™ :OneMesh™ Supported
  Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.


• Parental Controls :URL Filtering
  Time Controls
• WAN Types :Dynamic IP
  Static IP
  PPPoE
  PPTP
  L2TP
• Quality of Service :QoS by Device
• Cloud Service :Auto Firmware Upgrade
  OTA Firmware Upgrade
  TP-Link ID
  DDNS
• NAT Forwarding :Port Forwarding
  Port Triggering
  DMZ
  UPnP
• IPTV :IGMP Proxy
  IGMP Snooping
  Bridge
  Tag VLAN
• DHCP :Address Reservation
  DHCP Client List
  Server
• DDNS :TP-Link
  NO-IP
  DynDNS
• Management :Tether App
  Webpage


OTHER

• System Requirements :Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
  Cable or DSL Modem (if needed)
  Subscription with an internet service provider (for internet access)
• Certifications :FCC, CE, RoHS
• Environment :Operating Temperature: 0?~40? (32? ~104?)
  Storage Temperature: -40?~70? (-40? ~158?)
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing

TEST DATA

• WiFi Transmission Power :CE:
  <20dBm(2.4 GHz)
  <23dBm(5.15 GHz~5.25 GHz)
  FCC:
  <30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)
• WiFi Reception Sensitivity :EU Version
  5G
  11a 6Mbps: -96dbm
  11a 54Mbps:-75dbm
  11ac VHT20_MCS0: -95dbm
  11ac VHT20_MCS8: -71dbm
  11ac VHT40_MCS0: -92dbm
  11ac VHT40_MCS9: -66dbm
  11ac VHT80_MCS0: -89dbm
  11ac VHT80_MCS9:-62dbm
  11ax HE20_MCS0:-95dbm
  11ax HE20_MCS11: -64dbm
  11ax HE40_MCS0: -92dbm
  11ax HE40_MCS11: -60dbm
  11ax HE80_MCS0: -89dbm
  11ax HE80_MCS11:-59dbm
  2.4G
  11g 6Mbps:-96dbm
  11g 54Mbps:-75dbm
  11n HT20_MCS0:-95dbm
  11n HT20_MCS7:-75dbm
  11n HT40_MCS0:-92dbm
  11n HT40_MCS7: -72dbm
  11ac VHT20_MCS0:-95dbm
  11ac VHT20_MCS8:-72dbm
  11ac VHT40_MCS0:-92dbm
  11ac VHT40_MCS9: -67dbm
  11ax HE20_MCS0:-95dbm
  11ax HE20_MCS11: -65dbm
  11ax HE40_MCS0: -92dbm
  11ax HE40_MCS11: -62dbm
  US Version
  5G
  11a 6Mbps: -96dbm
  11a 54Mbps:-75dbm
  11ac VHT20_MCS0: -95dbm
  11ac VHT20_MCS8: -71dbm
  11ac VHT40_MCS0: -92dbm
  11ac VHT40_MCS9: -66dbm
  11ac VHT80_MCS0: -89dbm
  11ac VHT40_MCS9:-62dbm
  11ax HE20_MCS0:-95dbm
  11ax HE20_MCS11: -64dbm
  11ax HE40_MCS0: -92dbm
  11ax HE40_MCS11: -60dbm
  11ax HE80_MCS0: -89dbm
  11ax HE80_MCS11:-59dbm
  2.4G
  11g 6Mbps:-96dbm
  11a 54Mbps:-75dbm
  11ac VHT20_MCS0:-95dbm
  11ac VHT20_MCS8:-72dbm
  11ac VHT40_MCS0:-92dbm
  11ac VHT40_MCS9: -67dbm
  11ax HE20_MCS0:-95dbm
  11ax HE20_MCS11: -65dbm
  11ax HE40_MCS0: -92dbm
  11ax HE40_MCS11: -62dbm

PHYSICAL

• Dimensions (WxDxH) :10.2 x 5.3 x1.5 in
  (260.2 x 135.0 x 38.6 mm)
• Package Contents :Wi-Fi Router Archer AX23
  Power Adapter
  RJ45 Ethernet Cable
  Quick Installation Guide
