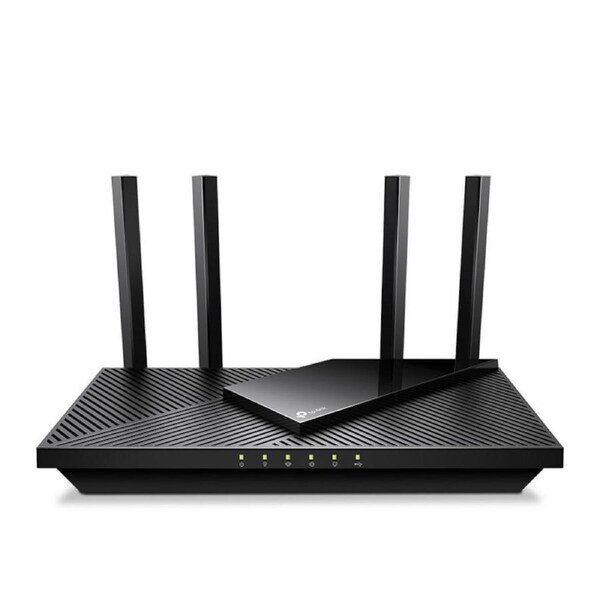

[Archer AX55 Pro] AX3000 Multi-Gigabit Wi-Fi 6 Router with 2.5G Port

TP-Link Archer AX55 Pro AX3000 Multi-Gigabit Wi-Fi 6 Router with 2.5G Port

• Faster Dual-Band AX3000 WiFi: Up to 3.0 Gbps (2402 Mbps + 574 Mbps) WiFi for faster browsing, streaming and downloading, all at the same time.
• 2.5G Multi-Gigabit Port: 1x 2.5 Gbps WAN/LAN port + 1x 1 Gbps WAN/LAN port + 3x Gigabit LAN ports + 1x USB 3.0 port ensure max flexibility and boosted throughput.
• Maximised Coverage: Four high-gain antennas equipped with Beamforming ensure vast coverage.
• Connect More Devices: OFDMA technology increases capacity by 4 times to enable simultaneous transmission to more devices.†
• VPN Client Supported: Allow devices in your home network to access remote VPN servers without needing to install VPN software on every device.
• TP-Link HomeShield: Enhanced security defends against the latest cyber threats.?
• TP-Link OneMesh Supported: Flexibly Create Whole Home WiFi with Archer AX55 Pro by adding a OneMesh supported Range Extender.
• Compatible with Alexa: Control your router via voice commands and make your life smarter and easier with Amazon Alexa.

WIRELESS

• Standards :Wi-Fi 6
  • IEEE 802.11ax/ac/n/a 5 GHz
  • IEEE 802.11ax/n/b/g 2.4 GHz
• WiFi Speeds :AX3000
  • 5 GHz: 2402 Mbps (802.11ax, HE160)
  • 2.4 GHz: 574 Mbps (802.11ax)
• WiFi Range :3 Bedroom Houses
  • 4x Fixed High-Performance Antennas
  Multiple antennas form a signal-boosting array to cover more directions and large areas

  • Beamforming
  Concentrates wireless signal strength towards clients to expand WiFi range

  • High-Power FEM
  Improves transmission power to strengthen signal coverage
• WiFi Capacity :High
  • Dual-Band
  Allocate devices to different bands for optimal performance

  • OFDMA
  Simultaneously communicates with multiple Wi-Fi 6 clients

  • Airtime Fairness
  Improves network efficiency by limiting excessive occupation

  • DFS
  Access an extra band to reduce congestion

  • 4 Streams
  Connect your devices to more bandwidth
• Working Modes :• Router Mode
  • Access Point Mode

HARDWARE

• Ethernet Ports :• 1x 2.5 Gigabit WAN/LAN Port
  • 1x Gigabit WAN/LAN Port
  • 3x Gigabit LAN Ports

• USB Support :1x USB 3.0 Port

  Supported Partition Formats:
  NTFS, exFAT, HFS+, FAT32

  Supported Functions:
  Apple Time Machine
  FTP Server
  Media Server
  Samba Server
• Buttons :Wi-Fi/WPS Button
  Power On/Off Button
  Reset Button
• Power :• 12 V/ 2 A (US Version)
  • 12 V/ 1.5 A (EU Version)

SECURITY

• WiFi Encryption :• WPA3*
  • WPA2
  • WPA
  • WPA/WPA2-Enterprise (802.1x)
• Network Security :SPI Firewall
  Access Control
  IP & MAC Binding
  Application Layer Gateway

  HomeShield Security
  Real-Time IoT Protection
  Malicious Site Blocker
  Intrusion Prevention System
  DDoS Attack Prevention
  Home Network Scanner
• Guest Network :• 1x 5 GHz Guest Network
  • 1x 2.4 GHz Guest Network
• VPN Server :• OpenVPN
  • PPTP
  • L2TP
• VPN Client :• OpenVPN
  • PPTP
  • L2TP

SOFTWARE

• Protocols :• IPv4
  • IPv6
• Service Kits :HomeShield
  Learn More>
• OneMesh™ :OneMesh™ Supported
  Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
  Learn More>
  All OneMesh Products>
• Parental Controls :HomeShield Parental Controls
  • Custom Profiles
  • Professional Content Filter Library
  • Family Time
  • Bedtime
  • Off Time
  • Time Rewards
  • Family Online Time Ranking
  • Pause the Internet
  • Weekly and Monthly Reports
• WAN Types :• Dynamic IP
  • Static IP
  • PPPoE
  • PPTP
  • L2TP
• Quality of Service :QoS by Device
• Cloud Service :• Auto Firmware Upgrade
  • OTA Firmware Upgrade
  • TP-Link ID
  • DDNS
• NAT Forwarding :• Port Forwarding
  • Port Triggering
  • DMZ
  • UPnP
• IPTV :• IGMP Proxy
  • IGMP Snooping
  • Bridge
  • Tag VLAN
• DHCP :• Address Reservation
  • DHCP Client List
  • Server
• DDNS :• TP-Link
  • NO-IP
  • DynDNS
• Management :• Tether App
  • Webpage
  Check Web Emulator>

OTHER

• System Requirements :Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

  Cable or DSL Modem (if needed)

  Subscription with an internet service provider (for internet access)
• Certifications :FCC, CE, RoHS
• Environment :Operating Temperature: 0?~40? (32? ~104?)
  Operating Humidity: 10%~90% non-condensing

TEST DATA

• WiFi Transmission Power :• CE:
  <20dBm(2.4GHz)
  <23dBm (5.15GHz~5.25GHz & 5.25GHz~5.35GHz)
  <30dBm (5.47GHz~5.725GHz)
  • FCC:
  <30dBm (2.4GHz)
  <30dBm(5.15GHz~5.25GHz&5.725GHz~5.850GHz)
  <24dBm (5.25GHz~5.35GHz&5.47GHz~5.725GHz)

• WiFi Reception Sensitivity :• 2.4 GHz:
  11ac VHT20 MCS0:-97dBm, 11ac VHT20 MCS11: -74dBm,
  11ac VHT40 MCS0: -93dBm, 11ac VHT40 MCS11: -70dBm,
  11ax HE20 MCS0: -96dBm, 11ax HE20 MCS11: -66dBm,
  11ax HE40 MCS0: -93dBm, 11ac HE40 MCS11: -63dBm
  • 5 GHz:
  11ac VHT20 MCS0: -97dBm, 11ac VHT20 MCS11: -74dBm,
  11ac VHT40 MCS0: -93dBm, 11ac VHT40 MCS11: -69dBm,
  11ac VHT80 MCS0: -90dBm, 11ac VHT80 MCS11: -65dBm,
  11ax HE20 MCS0: -97dBm, 11ax HE20 MCS11: -66dBm,
  11ax HE40 MCS0: -94dBm, 11ax HE40 MCS11: -63dBm,
  11ax HE80 MCS0: -90dBm, 11ax HE80 MCS11: -61dBm,
  11ax HE160 MCS0: -87dBm, 11ax HE160 MCS11: -58dBm

PHYSICAL

• Dimensions (WxDxH) :10.2 x 5.3 x 1.5 in
  (261.1 x 134.5 x 41.0 mm)
• Package Contents :• Wi-Fi Router Archer AX55 Pro
  • Power Adapter
  • RJ45 Ethernet Cable
  • Quick Installation Guide
