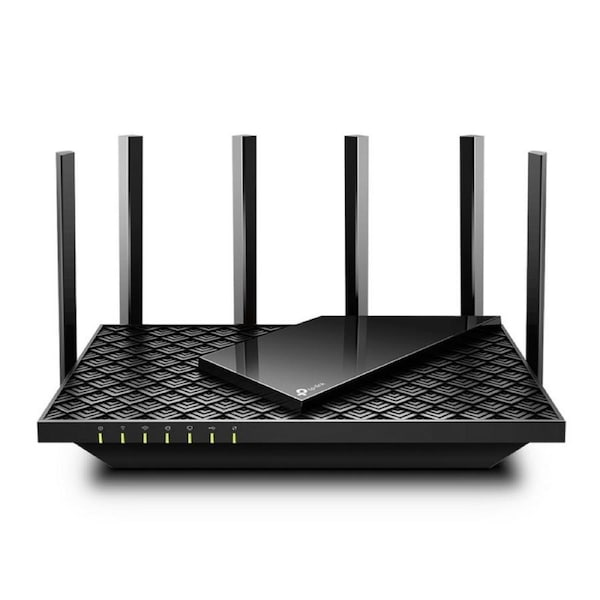

[Archer AX72] AX5400 Dual-Band Gigabit Wi-Fi 6 Router MU-MIMO, OFDMA

TP-Link Archer AX72 AX5400 Dual-Band Gigabit Wi-Fi 6 Router

• Gigabit WiFi for 8K Streaming - 5400 Mbps WiFi for faster browsing, streamings, and downloading, all at the same time.†
• Fully Featured Wi-Fi 6- Equips with the top structure of 4T4R and HE160 on the 5 GHz band to enable a 4.8 Gbps ultra-fast connection.
• Connect 100+ Devices§ - Supports MU-MIMO and OFDMA to reduce congestion and quadruple the average throughput.†**
• Extensive Coverage - 6x antennas and Beamforming ensure broad coverage.
• HomeShield - TP-Link's premium security services keep your home network safe with cutting-edge features for network and IoT protection.*
• More Vents, Less Heat - Improved vents area unleash the full power of the whole machine.
• Whole-Home Coverage with OneMeshTM - Works alongside TP-Link OneMeshTM products to create a flexible Mesh network
• USB Sharing - 1x USB 3.0 port enables easy media sharing and private cloud building.
• Easy Setup - Set up the router in minutes with the Tether app.

WIRELESS

• Standards :Wi-Fi 6
  IEEE 802.11ax/ac/n/a 5 GHz
  IEEE 802.11ax/n/b/g 2.4 GHz
• WiFi Speeds :AX5400
  5 GHz: 4804 Mbps (802.11ax, HE160)
  2.4 GHz: 574 Mbps (802.11ax)
• WiFi Range :3 Bedroom Houses
  6x Fixed High-Performance Antennas
  Multiple antennas form a signal-boosting array to cover more directions and large areas

  Beamforming
  Concentrates wireless signal strength towards clients to expand WiFi range

  High-Power FEM
  Improves transmission power to strengthen signal coverage

  4T4R
  Multiple streams in the same band strengthen the fault tolerance in transmission
• WiFi Capacity :High
  Dual-Band
  Allocate devices to different bands for optimal performance

  4x4 MU-MIMO
  Simultaneously communicates with multiple MU-MIMO clients

  OFDMA
  Simultaneously communicates with multiple Wi-Fi 6 clients

  Airtime Fairness
  Improves network efficiency by limiting excessive occupation

  DFS
  Access an extra band to reduce congestion

  6 Streams
  Connect your devices to more bandwidth
• Working Modes :Router Mode
  Access Point Mode

HARDWARE

• Processor :1 GHz Dual-Core CPU
• Ethernet Ports :1x Gigabit WAN Port
  4x Gigabit LAN Ports

• USB Support :1x USB 3.0 Port

  Supported Partition Formats:
  NTFS, exFAT, HFS+, FAT32

  Supported Functions:
  Apple Time Machine
  FTP Server
  Media Server
  Samba Server
• Buttons :Wi-Fi On/Off Button
  Power On/Off Button
  LED On/Off Button
  WPS Button
  Reset Button
• Power :12 V ? 2.5 A

SECURITY

• WiFi Encryption :WPA
  WPA2
  WPA3
  WPA/WPA2-Enterprise (802.1x)
• Network Security :SPI Firewall
  Access Control
  IP & MAC Binding
  Application Layer Gateway

  HomeShield Security
  Real-Time IoT Protection
  Malicious Site Blocker
  Intrusion Prevention System
  DDoS Attack Prevention
  Home Network Scanner
• Guest Network :1x 5 GHz Guest Network
  1x 2.4 GHz Guest Network
• VPN Server :OpenVPN
  PPTP

SOFTWARE

• Protocols :IPv4
  IPv6
• Service Kits :HomeShield
  Learn More>
• OneMesh™ :OneMesh™ Supported
  Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
  Learn More>
  All OneMesh Products>
• Parental Controls :HomeShield Parental Controls
  Custom Profiles
  Professional Content Filter Library
  Family Time
  Bedtime
  Off Time
  Time Rewards
  Family Online Time Ranking
  Pause the Internet
  Weekly and Monthly Reports
• WAN Types :Dynamic IP
  Static IP
  PPPoE
  PPTP
  L2TP
• Quality of Service :QoS by Device
• Cloud Service :Auto Firmware Upgrade
  TP-Link ID
  DDNS
• NAT Forwarding :Port Forwarding
  Port Triggering
  DMZ
  UPnP
  Virtual Server
• IPTV :IGMP Proxy
  IGMP Snooping
  Bridge
  Tag VLAN
• DHCP :Address Reservation
  DHCP Client List
  Server
• DDNS :TP-Link
  NO-IP
  DynDNS
• Management :Tether App
  Webpage


OTHER

• System Requirements :Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

  Cable or DSL Modem (if needed)

  Subscription with an internet service provider (for internet access)
• Certifications :FCC, CE, RoHS
• Environment :Operating Temperature: 0?~40? (32? ~104?)
  Storage Temperature: -40?~70? (-40? ~158?)
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing

TEST DATA

• WiFi Transmission Power :CE:
  <20dBm{2.4GHz}
  <23dBm{5.15GHz~5.35GHz}
  <30dBm{5.47GHz~5.725GHz}
  FCC:
  <24dBm{5.25GHz~5.35GHz&5.47GHz~5.725GHz }
  <30dBm{2.4GHz &5.15GHz~5.25GHz&5.725GHz~5.825GHz }
• WiFi Reception Sensitivity :2.4GHz:
  11ac VHT20 MCS0:-94.5dBm
  11ac VHT20 MCS8:-72.5dBm
  11ac VHT40 MCS0:-92.5dBm
  11ac VHT40 MCS9:-69.5dBm
  11ax HE20 MCS0:-95dBm
  11ax HE20 MCS11:-64.5dBm
  11ax HE40 MCS0:-92.5dBm
  11ax HE40 MCS11:-62dBm
  5GHz:
  11ac VHT20 MCS0:-97dBm
  11ac VHT20 MCS8:-74dBm
  11ac VHT40 MCS0:-95dBm
  11ac VHT40 MCS9:-70dBm
  11ac VHT80 MCS0:-91.5dBm
  11ac VHT80 MCS9:-66dBm
  11ac VHT160 MCS0:-86dBm
  11ac VHT160 MCS9:-61dBm
  11ax HE20 MCS0:-95dBm
  11ax HE20 MCS11:-64dBm
  11ax HE40 MCS0:-91.5dBm
  11ax HE40 MCS11:-62dBm
  11ax HE80 MCS0:-88dBm
  11ax HE80 MCS11:-58dBm
  11ax HE160 MCS0:-85.5dBm
  11ax HE160 MCS11:-55dBm

PHYSICAL

• Dimensions (WxDxH) :10.7 x 5.8 x 1.9 in
  (272.5 x 147.2 x 49.2 mm)
• Package Contents :Wi-Fi Router Archer AX72
  Power Adapter
  RJ45 Ethernet Cable
  Quick Installation Guide
