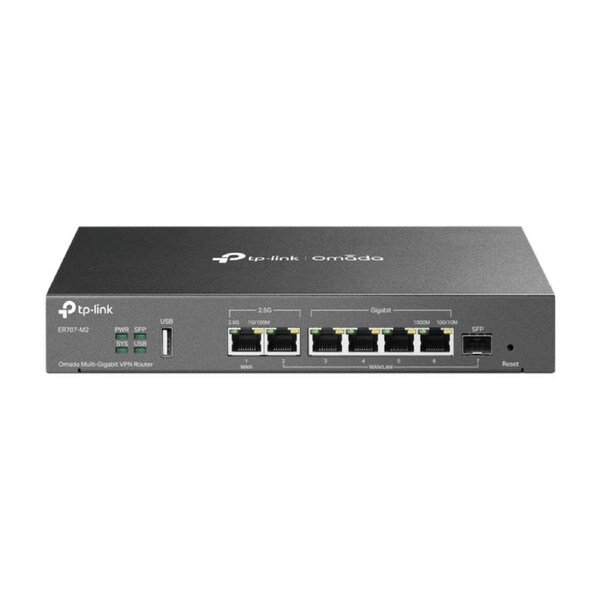

[ER707-M2] Omada Multi-Gigabit VPN Router Omada, Two 2.5G Ports

TP-Link ER707-M2, Omada Multi-Gigabit VPN Router

• Two 2.5G Ports: 1x 2.5G WAN and 1x 2.5G WAN/LAN ports provide high-bandwidth aggregation connectivity.
• Up to 6 WAN Ports:2.5G RJ45, gigabit Fiber, and gigabit RJ45 WAN ports with load balance raise the utilization rate of multi-line broadband.
• Highly Secure VPN: Enterprise-standard SSL/IPSec/GER§/PPTP/L2TP VPN & OpenVPN are ideal for use across multiple branches and for WFH.
• Integrated into Omada SDN: Supports Zero-Touch Provisioning (ZTP),** Centralized Cloud Management,Intelligent Monitoring, and more.
• Centralized Management: Cloud access and Omada app provide the utmost in management convenience.
• Extensive Security Features: Protect yournetwork and data with advanced firewall policies, DoS defense, IP/MAC/URL filtering, and more security functions.
• Learn more about Omada Cloud SDN>?

HARDWARE FEATURES

• Standards and Protocols :• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q
  • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
• Interface :• 1x 2.5G RJ45 WAN Port
  • 1x 2.5G RJ45 WAN/LAN Port
  • 1x Gigabit SFP WAN/LAN Port
  • 4x Gigabit RJ45 WAN/LAN Ports
  • 1x USB 2.0 Port (Supports USB storage, and LTE backup with LTE dongle)
• Network Media :• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)
  • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)
  • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
  • 2500BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
• Fan Quantity :Fanless
• Button :Reset Button
• Power Supply :12V/1.5A Adapter
• PoE Budget :-
• Flash :128MB NAND
• DRAM :1 GB DDR4
• LED :PWR, SYS, SFP, USB, WAN (Speed, Link/Act), LAN (Speed, Link/Act)
• Dimensions ( W x D x H ) :8.9 x 5.2 x 1.4 in (226 x 131 x 35 mm)
• Protection :4 kV surge protection
• Enclosure :Steel
• Mounting :Desktop/Wall Mounting
• Max Power Consumption :14.2 W (with USB2.0 connected)
  7.1 W (without USB2.0 connected)

PERFORMANCE

• Concurrent Session :500,000
• New Sessions /Second :4,200
• NAT (Static IP) :2364.45 Mbps / 2343.28 Mbps
• NAT(DHCP) :2364.24 Mbps / 2326.21 Mbps
• NAT(PPPoE) :2350.93 Mbps / 2125.83 Mbps
• NAT (L2TP) :1249.04 Mbps / 831.12 Mbps
• NAT (PPTP) :1169.23 Mbps / 1175.52 Mbps
• IPsec VPN Throughput :ESP-MD5-AES256: 537.12 Mbps
  ESP-SHA1-AES256: 754.65 Mbps
• L2TP VPN Throughput :Unencrypted: 1442.65 Mbps
  Encrypted: 346.43 Mbps
• SSL VPN Throughput :142.99 Mbps
• 66 Byte Packet forwarding rate :1832.69 Mbps / 1741.84 Mbps
• 1,518 Byte Packet forwarding rate :2461.18 Mbps / 2457.32 Mbps

BASIC FUNCTIONS

• WAN Connection Type :• IPv4_Static IP
  • IPv4_Dynamic IP
  • IPv4_PPPOE
  • IPv4_L2TP
  • IPv4_PPTP
  • IPv6_PPP
  • IPv6_DHCPv6
  • IPv6_Static IP
  • IPv6_6in4
  • IPv6_Pass-Through
  • Mobile Broadband: 4G/3G modem for backup via USB port
• MAC Clone :Modify WAN/LAN MAC Address^†
• DHCP :• DHCP Server/Client
  • DHCP Address Reservation
  • Multi-IP Interfaces*
  • Multi-Net DHCP*
• IPv6 :WAN Connection
• VLAN :802.1Q VLAN
• IPTV :IGMP v2/v3 Proxy

ADVANCED FUNCTIONS

• Advanced Routing :• Static Routing
  • Policy Routing
• Bandwidth Control :• IP/Port-based Bandwidth Control
  • Guarantee & Limited Bandwidth
• Load Balance :• Intelligent Load Balance
  • Application Optimized Routing
  • Link Backup (Timing^§, Failover)
  • Online Detection
• NAT :• One-to-One NAT^§
  • Multi-Net NAT
  • Virtual Server
  • Port Triggering^§
  • NAT-DMZ
  • FTP/H.323/SIP/IPSec/PPTP ALG
  • UPnP
• Security :• Attack Defense:
  TCP/UDP/ICMP Flood Defense
  Block TCP Scan (Stealth FIN/Xmas/Null)
  Block Ping from WAN
  • Filtering
  Web Group Filtering
  URL Filtering
  Web Security
  • ARP Inspection:
  Sending GARP Packets
  ARP Scanning
  IP-MAC Binding
  • Access Control
  Source/Destination IP Based Access Control
• Session Limit :IP-based Session Limit

VPN

• IPsec VPN :• 100 IPSec VPN Tunnels
  • LAN-to-LAN, Client-to-LAN
  • Main, Aggressive Negotiation Mode
  • DES, 3DES, SHA1, AES128, AES192, AES256 Encryption Algorithm
  • IKEv1/v2
  • MD5, SHA1 Authentication Algorithm
  • NAT Traversal (NAT-T)
  • Dead Peer Detection (DPD)
  • Perfect Forward Secrecy (PFS)
• PPTP VPN :• PPTP VPN Server
  • PPTP VPN Clients (12)
  • 60 Tunnels (Shared with L2TP)
  • PPTP with MPPE Encryption
• L2TP VPN :• L2TP VPN Server
  • L2TP VPN Clients (12)
  • 60 Tunnels (Shared with PPTP)
  • L2TP over IPSec
• OpenVPN :• OpenVPN Server
  • OpenVPN Clients (6)
  • 66 OpenVPN Tunnels*

SECURITY

• Filtering :WEB Group Filtering^§
  URL Filtering
  Web Security^§
• ARP Inspection :• Sending GARP Packets^§
  • ARP Scanning^§
  • IP-MAC Binding^§
• Attack Defense :• TCP/UDP/ICMP Flood Defense
  • Block TCP Scan (Stealth FIN/Xmas/Null)
  • Block Ping from WAN
• Access Control :Source/Destination IP Based Access Control

AUTHENTICATION

• Web Authentication :• No Authentication
  • Simple Password*
  • Hotspot (Local User/Voucher* /SMS*/Radius*)
  • External Radius Sever
  • External Portal Sever*
  • Facebook*

MANAGEMENT

• Omada App :Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
• Centralized Management :• Omada Cloud-Based Controller
  • Omada Hardware Controller (OC300)
  • Omada Hardware Controller (OC200)
  • Omada Software Controller
• Cloud Access :Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
• Service :Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
• Maintenance :• Web Management Interface
  • Remote Management
  • Export & Import Configuration
  • SNMP v1/v2c/v3*
  • Diagnostics (Ping & Traceroute)^§
  • NTP Synchronize^§
  • Syslog Support
• Zero-Touch Provisioning :Yes. Requiring the use of Omada Cloud-Based Controller.
• Management Features :• Automatic Device Discovery
  • Intelligent Network Monitoring
  • Abnormal Event Warnings
  • Unified Configuration
  • Reboot Schedule
  • Captive Portal Configuration
  • ZTP (Zero-Touch Provisioning)

OTHERS

• Certification :CE, FCC, RoHS
• Package Contents :• ER707-M2
  • Power Adapter
  • Quick Installation Guide
• System Requirements :Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
• Environment :• Operating Temperature: 0-40 ? (32-104 ?);
  • Storage Temperature: -40-70 ? (-40-158 ?)
  • Operating Humidity: 10-90% RH non-condensing
  • Storage Humidity: 5-90% non-condensing
