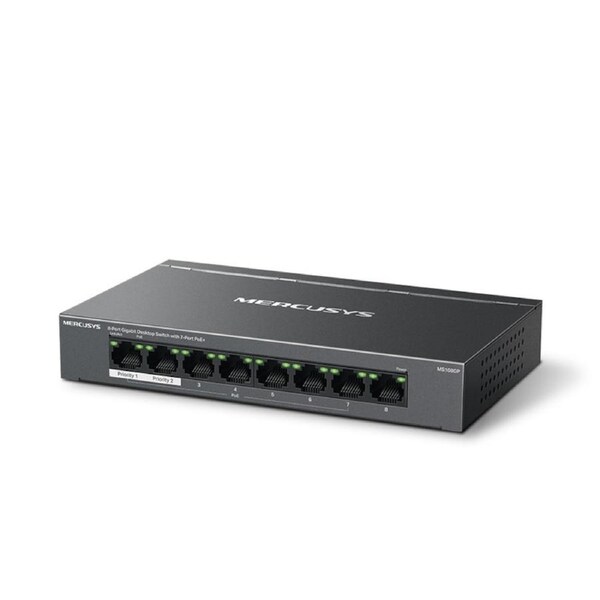

[MS108GP] 8-Port Gigabit Desktop Switch with 7-Port PoE+

Mercusys MS108GP, 8-Port Gigabit Desktop Switch with 7-Port PoE+

• Full Gigabit Ports:8x 10/100/1000 Mbps RJ45 ports
• Two Cables in One:With 7 PoE+ ports, transfers data and power on one single cable
• High Power PoE+:Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports*
• Long-Range up to 250 m:Increases PoE transmission distance to 250 m by Extend Mode*
• Isolation Mode:One click to divide traffic for specific ports for stability and security
• Compliant with Powered Devices:Works with IEEE 802.3af/at compliant PDs
• Durable Metal Casing:Allows for efficient heat dissipation and long network life
• Plug and Play:Simple to use and saves time and effort

Hardware

• Dimensions :171*98*27 mm
• PoE Ports :RJ45Standard: Compliant with 802.3 af/at Powered Devices
  PoE Ports: Port 1- Port 7
  PoE Power Budget: 65 W
• External Power Supply :External Power Adapter (Output: 53.5V/1.31A)
• Installation :DesktopWall Mount
• Standards and Protocols :IEEE 802.3x Flow Control
• Data Rates :10/100/1000 Mbps at Half Duplex
  20/200/2000 Mbps at Full Duplex
• Jumbo Frame :
  15 KB
• Mac Address Table :8K
• Max Power Consumption :5.07W?220 V / 50 Hz, no PD connected?77.33W?220 V / 50 Hz, with 65W PD connected?
• Max Heat Dissipation :17.238 BTH/h ?no PD connected)262.922 BTH/h?with 65W PD connected?

Others

• Package Contents :8-Port Gigabit Desktop Switch with 7-Port PoE+(MS108GP)
  Power Adapter
  Quick Installation Guide
• Environment :Operating Temperature: 0?~40? (32?~104?)
  Storage Temperature: -40?~70? (-40?~158?)
  Operating Humidity: 10%~90% RH non-condensing
  Storage Humidity: 5%~95% RH non-condensing
