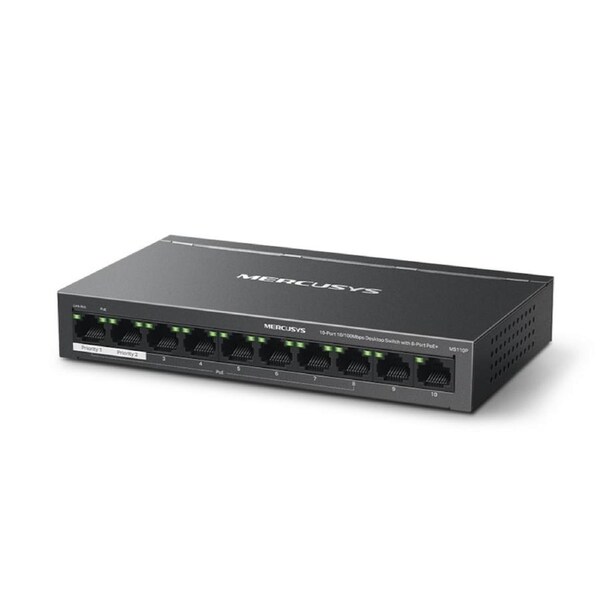

[MS110P] 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+

Mercusys MS110P, 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+

• 10 Ports:10x 10/100 Mbps RJ45 ports with 8 PoE+ ports
• Two Cables in One:With 8 PoE+ ports, transfers data and power on one single cable
• High Power PoE+:Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports*
• 2x Uplink Ports:MS110P provides 2x uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR.
• Long-Range up to 250 m:Increases PoE transmission distance to 250 m by Extend Mode*
• Isolation Mode:One click to divide traffic for specific ports for stability and security
• Compliant with Powered Devices:Works with IEEE 802.3af/at compliant PDs
• Durable Metal Casing:Allows for efficient heat dissipation and long network life
• Plug and Play:Simple to use and saves time and effort
• PoE Auto Recovery:Automatically reboots your dropped or unresponsive PoE-powered devices

Hardware

• Dimensions :171*98*27 mm
• PoE Ports :RJ45Standard: Compliant with 802.3 af/at Powered Devices
  PoE Ports: Port 1- Port 8
  PoE Power Budget: 65 W
• Interfaces :10x 10/100 Mbps Ports, Auto-Negotiation, Auto MDI/MDIX
• External Power Supply :External Power Adapter (Output: 53.5V/1.31A)
• Installation :DesktopWall Mount
• Standards and Protocols :IEEE 802.3x Flow Control
• Data Rates :10/100 Mbps at Half Duplex
  20/200 Mbps at Full Duplex
• Jumbo Frame :2 KB
• Mac Address Table :2K
• Max Power Consumption :2.96W?220 V / 50 Hz, no PD connected?77.52W?220 V / 50 Hz, with 65W PD connected?
• Max Power Consumption :10.064 BTH/h ?no PD connected)263.568 BTH/h?with 65W PD connected?

Others

• Package Contents :10-Port 10/100Mbps Desktop Switch with 8-Port PoE+ (MS110P)
  Power Adapter
  Quick Installation Guide
• Environment :Operating Temperature: 0?~40? (32?~104?)
  Storage Temperature: -40?~70? (-40?~158?)
  Operating Humidity: 10%~90% RH non-condensing
  Storage Humidity: 5%~95% RH non-condensing
