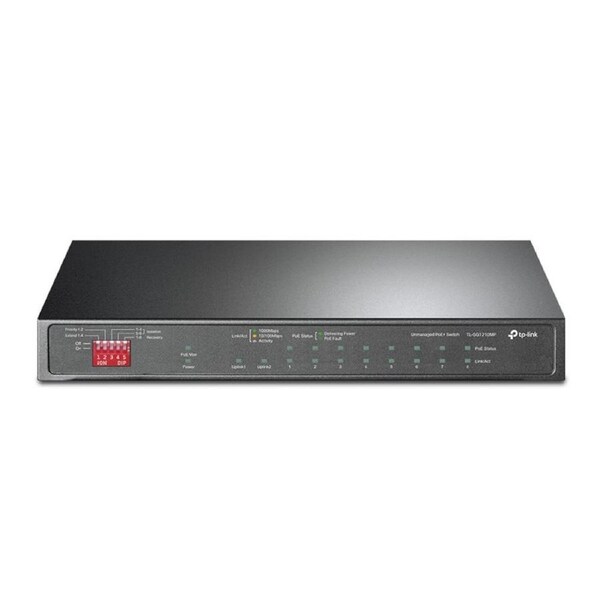

[TL-SG1210MP] 10-Port Gigabit Desktop Switch with 8-Port PoE+ SFP/RJ45

TP-Link TL-SG1210MP 10-Port Gigabit Desktop Switch with 8-Port PoE+

• 9x gigabit RJ45 ports, and 1x gigabit combo SFP/RJ45 Port
• 8x PoE+ ports transfer data and power via a single cable with a total power budget of 123 W*
• Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port
• Up to 250 m data and power transmission range under Extend Mode**
• Priority Mode ensures high priority of ports 1-2 to guarantee the quality of the sensitive applications
• Isolation Mode allows one-click client traffic separation for higher security and performance
• Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery.
• Plug and play with no configuration required
• Fanless design reduces power consumption and works silently in its location

HARDWARE FEATURES

• Interface :• 9x 10/100/1000 Mbps RJ45 Ports
  • 1x 1000 Mbps Combo SFP/RJ45 Port
  • AUTO Negotiation
  • AUTO MDI/MDIX
• Network Media :• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100? STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100? STP (maximum 100m)
• Fan Quantity :Fanless
• Physical Security Lock :Yes
• External Power Supply :External Power Adapter (Output: 53.5VDC / 2.43A)
• Packet Forwarding Rate :14.88 Mpps
• PoE Ports (RJ45) :• Standard: 802.3 af/at compliant
  • PoE Ports: Ports 1-8
  • Power Supply: 123 W
• Mac Address Table :4K
• Jumbo Frame :16 KB
• Switching Capacity :20 Gbps
• Dimensions ( W x D x H ) :8.2 x 4.9 x 1.0 in (209 x 126 x 26 mm)
• Max Power Consumption :• 7.93 W (220V / 50Hz with no PD connected)
  • 141.40 W (220V / 50Hz with 123 W PD connected)
• Max Heat Dissipation :• 27.04 BTU/h (220V / 50Hz with no PD connected)
  • 482.17 BTU/h (220V / 50Hz with 123 W PD connected)

SOFTWARE FEATURES

• Transmission Method :Store-And-Forward
• Advanced Functions :• Compatible With IEEE 802.3af/at Compliant PDs
  • Extend Mode Button (Ports 1-4, Up to 250 m PoE power supply and data transmission)
  • Priority Mode Button (Ports 1-2)
  • Isolation Mode Button (Ports 1-4 / 5-8)
  • PoE Auto Recovery (Ports 1-8)
  • Mac Address Auto-Learning and Auto-Aging
  • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode


OTHERS

• Certification :FCC, CE, RoHS
• Package Contents :• TL-SG1210MP
  • Power Adapter
  • Installation Guide
• Environment :• Operating Temperature: 0-40 ? (32-104 ?)
  • Storage Temperature: -40-70 ? (-40-158 ?)
  • Operating Humidity: 10-90% RH non-condensing
  • Storage Humidity: 5-90% RH non-condensing
