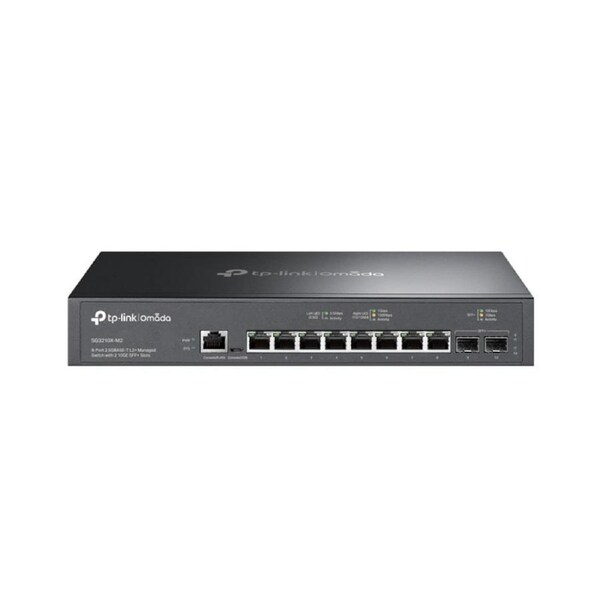

[SG3210X-M2] Omada 8-Port 2.5G L2+ Managed Switch

TP-Link SG3210X-M2, Omada 8-Port 2.5G L2+ Managed Switch

• 2.5 Gbps Speeds:8x 2.5 GbpsRJ45 ports offerhigh-speed and reliable connections to other switches and devices.
• 10G Lightning-Fast Uplink:2x 10 GbpsSFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.
• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring.
• Centralised Management: Cloud access and Omada app for ultra convenience and easy management.
• Static Routing: Helps route internal traffic for more efficient use of network resources.
• Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
• Optimise Voice and Video Applications: L2/L3/L4 QoS andIGMP snooping.
• Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.
• Learn more about Omada Cloud SDN>?
• Learn more about TP-Link10G Multi-Gig technology >

HARDWARE FEATURES

• Interface :8x 2.5 Gbps RJ45 Ports
  2x 10G SFP+ Slots
  1x RJ45 Console Port
  1x Micro-USB Console Port
• Fan Quantity :Fanless Design
• Power Supply :100-240 V AC~50/60 Hz
• Dimensions ( W x D x H ) :11.6 x 7.1 x 1.7 in (294 x 180 x 44 mm)
• Mounting :Rack Mountable / Desktop
• Max Power Consumption :15.0 W (110V/60Hz)
• Max Heat Dissipation :51.18 BTU/h (110 V/60 Hz)

PERFORMANCE

• Switching Capacity :80 Gbps
• Packet Forwarding Rate :59.52 Mpps
• MAC Address Table :16 K
• Packet Buffer Memory :12 Mbit
• Jumbo Frame :9 KB

SOFTWARE FEATURES

• Quality of Service :8 priority queues
  802.1p CoS/DSCP priority
  Queue scheduling
  - SP (Strict Priority)
  - WRR (Weighted Round Robin)
  - SP+WRR
  Bandwidth Control
  - Port/Flow based Rating Limiting
  Smoother Performance
  Action for Flows
  - Mirror (to supported interface)
  - Redirect (to supported interface)
  - Rate Limit
  - QoS Remark
• L3 Features :32 IPv4/IPv6 Interfaces
  Static Routing
  - 48 static routes
  Static ARP
  - 128 Static Entries
  Proxy ARP
  Gratuitous ARP
  DHCP Server
  DHCP Relay
  - DHCP Interface Relay
  - DHCP VLAN Relay
  DHCP L2 Relay
• L2 and L2+ Features :Link Aggregation
  - static link aggregation
  - 802.3ad LACP
  - Up to 8 aggregation groups, containing 8 ports per group
  Spanning Tree Protocol
  - 802.1d STP
  - 802.1w RSTP
  - 802.1s MSTP
  - STP Security: TC Protect, BPDU Filter, Root Protect
  Loopback Detection
  - Port based
  - VLAN based
  Flow Control
  - 802.3x Flow Control
  - HOL Blocking Prevention
  Mirroring
  - Port Mirroring
  - CPU Mirroring
  - One-to-One
  - Many-to-One
  - Tx/Rx/Both
• L2 Multicast :IGMP Snooping
  - IGMP v1/v2/v3 Snooping
  - Fast Leave
  - IGMP Snooping Querier
  - IGMP Authentication
  IGMP Authentication
  MLD Snooping
  - MLD v1/v2 Snooping
  - Fast Leave
  - MLD Snooping Querier
  - Static Group Config
  - Limited IP Multicast
  MVR
  Multicast Filtering: 256 profiles and 16 entries per profile
• Advanced Features :Automatic Device Discovery
  Batch Configuration
  Batch Firmware Upgrading
  Intelligent Network Monitoring
  Abnormal Event Warnings
  Unified Configuration
  Reboot Schedule
• VLAN :VLAN Group
  - Max 4K VLAN Groups
  802.1Q Tagged VLAN
  MAC VLAN: 256 Entries
  Protocol VLAN: Protocol Template 16, Protocol VLAN 16
  GVRP
  VLAN VPN (QinQ)
  - Port-Based QinQ
  - Selective QinQ
  Voice VLAN
• Access Control List :Time-based ACL
  MAC ACL
  - Source MAC
  - Destination MAC
  - VLAN ID
  - User Priority
  - Ether Type
  IP ACL
  -Source IP
  - Destination IP
  - Fragment
  - IP Protocol
  - TCP Flag
  - TCP/UDP Port
  - DSCP/IP TOS
  - User Priority
  Combined ACL
  Packet Content ACL
  IPv6 ACL
  Policy
  - Mirroring
  - Redirect
  - Rate Limit
  - QoS Remark
  ACL apply to Port/VLAN
• Security :IP-MAC-Port Binding
  - 512 Entries
  - DHCP Snooping
  - ARP Inspection
  - IPv4 Source Guard: 100 Entries
  IPv6-MAC-Port Binding
  - 512 Entries
  - DHCPv6 Snooping
  - ND Detection
  - IPv6 Source Guard: 100 Entries
  DoS Defend
  Static/Dynamic Port Security
  - Up to 64 MAC addresses per port
  Broadcast/Multicast/Unicast Storm Control
  - kbps/ratio control mode
  802.1X
  - Port base authentication
  - Mac base authentication
  - VLAN Assignment
  - MAB
  - Guest VLAN
  - Support Radius authentication andaccountability
  AAA (including TACACS+)
  Port Isolation
  Secure web management through HTTPS with SSLv3/TLS 1.2
  Secure Command Line Interface (CLI) management with SSHv1/SSHv2
  IP/Port/MAC based access control
• IPv6 :IPv6 Dual IPv4/IPv6
  Multicast Listener Discovery (MLD) Snooping
  IPv6 ACL
  IPv6 Interface
  Static IPv6 Routing
  IPv6 neighbor discovery (ND)
  Path maximum transmission unit (MTU) discovery
  Internet Control Message Protocol (ICMP) version 6
  TCPv6/UDPv6
  IPv6 applications
  - DHCPv6 Client
  - Ping6
  - Tracert6
  - Telnet (v6)
  - IPv6 SNMP
  - IPv6 SSH
  - IPv6 SSL
  - Http/Https
  - IPv6 TFTP
• MIBs :MIB II (RFC1213)
  Interface MIB (RFC2233)
  Ethernet Interface MIB (RFC1643)
  Bridge MIB (RFC1493)
  P/Q-Bridge MIB (RFC2674)
  RMON MIB (RFC2819)
  RMON2 MIB (RFC2021)
  Radius Accounting Client MIB (RFC2620)
  Radius Authentication Client MIB (RFC2618)
  Remote Ping, Traceroute MIB (RFC2925)
  Support TP-Link private MIB

MANAGEMENT

• Omada App :Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
• Centralized Management :Omada Cloud-Based Controller
  Omada Hardware Controller (OC300)
  Omada Hardware Controller (OC200)
  Omada Software Controller
• Cloud Access :Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
• Zero-Touch Provisioning :Yes. Requiring the use of Omada Cloud-Based Controller.
• Management Features :Web-based GUI
  Command Line Interface (CLI) through the console port, telnet
  SNMP v1/v2c/v3
  - Trap/Inform
  - RMON (1,2,3,9 groups)
  SDM Template
  DHCP/BOOTP Client
  802.1ab LLDP/LLDP-MED
  DHCP AutoInstall
  Dual Image, Dual Configuration
  CPU Monitoring
  Cable Diagnostics
  EEE
  Password Recovery
  SNTP
  System Log

OTHERS

• Certification :CE, FCC, RoHS
• Package Contents :SG3210X-M2 Switch
  Power Cord
  Quick Installation Guide
  Rackmount Kit
  Rubber Feet
• System Requirements :Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
• Environment :Operating Temperature: 0-50 ? (32-122 ?);
  Storage Temperature: -40-70 ? (-40-158 ?)
  Operating Humidity: 10-90% RH non-condensing
  Storage Humidity: 5-90% RH non-condensing
