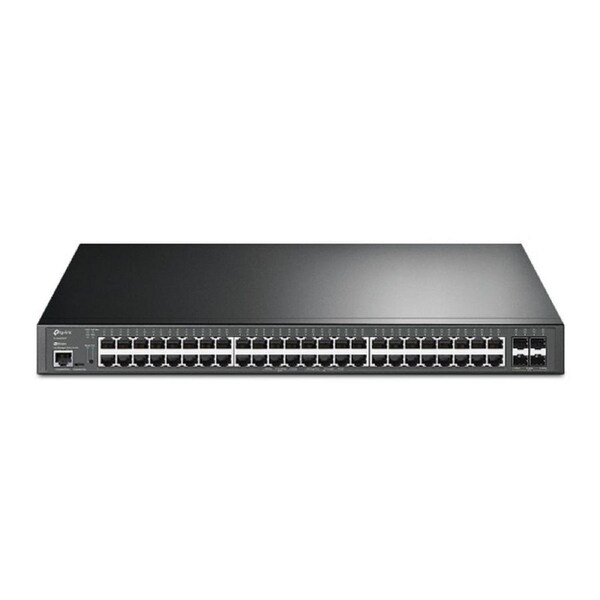

[SG3452XP] JetStream 48-Port Gbit 4-Port 10GE SFP+ L2+ Managed Switch

TP-Link SG3452XP JetStream 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 48-Port PoE+

• 10G Lightning-Fast Uplink: Enjoy high-bandwidth connectivity and non-blocking switching capacity with four 10 Gbps SFP+ slots.
• PoE+ Output with 500 W Power Budget: Design your optimal network layout with forty-eight 802.3af/at PoE+ gigabit ports.*
• Centralised Cloud Management: Integrates into Omada SDN for cloud access and remote management.
• Abundant L2 and L2+ Features: It supports a complete lineup of L2 and L2+ features, including Static Routing, enterprise-level QoS, and IGMP Snooping.
• Robust Security Strategies: Helps protect LAN area investment with integrated IP-MAC-Port Binding, ACL, Port Security, and 802.1X Authentication.
• Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.

HARDWARE FEATURES

• Interface :• 48x 10/100/1000 Mbps RJ45 PoE+ Ports
  • 4x 10G SFP+ Slots
  • 1x RJ45 Console Port
  • 1x Micro-USB Console Port
• Fan Quantity :3
• Power Supply :100-240 V AC~50/60 Hz
• PoE+ Ports(RJ45) :• Standard: 802.3at/af compliant
  • PoE+ Ports: 48 Ports, up to 30 W per port
  • Power Budget: 500 W*
• Dimensions ( W x D x H ) :17.3 x 13.0 x 1.7 in (440 x 330 x 44 mm)
• Mounting :Rack Mountable
• Max Power Consumption :• 49.19 W (110V/60Hz) ( no PD device connected)
  • 635.7 W (110V/60Hz) ( with 500 W PD device connected)
• Max Heat Dissipation :• 167.85 BTU/hr (110 V/60 Hz) (no PD connected)
  • 2169.2 BTU/hr (110 V/60 Hz) (with 500 W PD connected)

PERFORMANCE

• Switching Capacity :176 Gbps
• Packet Forwarding Rate :130.9 Mpps
• MAC Address Table :16 K
• Packet Buffer Memory :12 Mbit
• Jumbo Frame :9 KB

SOFTWARE FEATURES

• Quality of Service :• 8 priority queues
  • 802.1p CoS/DSCP priority
  • Queue scheduling
  - SP (Strict Priority)
  - WRR (Weighted Round Robin)
  - SP+WRR
  • Bandwidth Control
  - Port/Flow based Rating Limiting
  • Smoother Performance
  • Action for Flows
  - Mirror (to supported interface)
  - Redirect (to supported interface)
  - Rate Limit
  - QoS Remark
• L2 and L2+ Features :• Link Aggregation
  - static link aggregation
  - 802.3ad LACP
  - Up to 8 aggregation groups, containing 8 ports per group
  • Spanning Tree Protocol
  - 802.1d STP
  - 802.1w RSTP
  - 802.1s MSTP
  - STP Security: TC Protect, BPDU Filter, Root Protect
  • Loopback Detection
  - Port based
  - VLAN based
  • Flow Control
  - 802.3x Flow Control
  - HOL Blocking Prevention
  • Mirroring
  - Port Mirroring
  - CPU Mirroring
  - One-to-One
  - Many-to-One
  - Tx/Rx/Both
• L2 Multicast :• IGMP Snooping
  - IGMP v1/v2/v3 Snooping
  - Fast Leave
  - IGMP Snooping Querier
  - IGMP Authentication
  • IGMP Authentication
  • MLD Snooping
  - MLD v1/v2 Snooping
  - Fast Leave
  - MLD Snooping Querier
  - Static Group Config
  - Limited IP Multicast
  • MVR
  • Multicast Filtering: 256 profiles and 16 entries per profile
• VLAN :• VLAN Group
  - Max 4K VLAN Groups
  • 802.1Q Tagged VLAN
  • MAC VLAN: 30 Entries
  • Protocol VLAN: Protocol Template 16, Protocol VLAN 16
  • Private VLAN
  • GVRP
  • VLAN VPN (QinQ)
  - Port-Based QinQ
  - Selective QinQ
  • Voice VLAN
• Access Control List :• Time-based ACL
  • MAC ACL
  - Source MAC
  - Destination MAC
  - VLAN ID
  - User Priority
  - Ether Type
  • IP ACL
  -Source IP
  - Destination IP
  - Fragment
  - IP Protocol
  - TCP Flag
  - TCP/UDP Port
  - DSCP/IP TOS
  - User Priority
  • Combined ACL
  • Packet Content ACL
  • IPv6 ACL
  • Policy
  - Mirroring
  - Redirect
  - Rate Limit
  - QoS Remark
  • ACL apply to Port/VLAN
• Security :• IP-MAC-Port Binding
  - 512 Entries
  - DHCP Snooping
  - ARP Inspection
  - IPv4 Source Guard: 100 Entries
  • IPv6-MAC-Port Binding
  - 512 Entries
  - DHCPv6 Snooping
  - ND Detection
  - IPv6 Source Guard: 100 Entries
  • DoS Defend
  • Static/Dynamic Port Security
  - Up to 64 MAC addresses per port
  • Broadcast/Multicast/Unicast Storm Control
  - kbps/ratio control mode
  • 802.1X
  - Port base authentication
  - Mac base authentication
  - VLAN Assignment
  - MAB
  - Guest VLAN
  - Support Radius authentication andaccountability
  • AAA (including TACACS+)
  • Port Isolation
  • Secure web management through HTTPS with SSLv3/TLS 1.2
  • Secure Command Line Interface (CLI) management with SSHv1/SSHv2
  • IP/Port/MAC based access control
• IPv6 :• IPv6 Dual IPv4/IPv6
  • Multicast Listener Discovery (MLD) Snooping
  • IPv6 ACL
  • IPv6 Interface
  • Static IPv6 Routing
  • IPv6 neighbor discovery (ND)
  • Path maximum transmission unit (MTU) discovery
  • Internet Control Message Protocol (ICMP) version 6
  • TCPv6/UDPv6
  • IPv6 applications
  - DHCPv6 Client
  - Ping6
  - Tracert6
  - Telnet (v6)
  - IPv6 SNMP
  - IPv6 SSH
  - IPv6 SSL
  - Http/Https
  - IPv6 TFTP
• L3 Features :• 16 IPv4/IPv6 Interfaces
  • Static Routing
  - 48 static routes
  • Static ARP
  - 128 Static Entries
  • Proxy ARP
  • Gratuitous ARP
  • DHCP Server
  • DHCP Relay
  - DHCP Interface Relay
  - DHCP VLAN Relay
  • DHCP L2 Relay
• Advanced Features :• Automatic Device Discovery
  • Batch Configuration
  • Batch Firmware Upgrading
  • Intelligent Network Monitoring
  • Abnormal Event Warnings
  • Unified Configuration
  • Reboot Schedule

• MIBs :• MIB II (RFC1213)
  • Interface MIB (RFC2233)
  • Ethernet Interface MIB (RFC1643)
  • Bridge MIB (RFC1493)
  • P/Q-Bridge MIB (RFC2674)
  • RMON MIB (RFC2819)
  • RMON2 MIB (RFC2021)
  • Radius Accounting Client MIB (RFC2620)
  • Radius Authentication Client MIB (RFC2618)
  • Remote Ping, Traceroute MIB (RFC2925)
  • Support TP-Link private MIB

MANAGEMENT

• Omada App :Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
• Centralized Management :• Omada Cloud-Based Controller
  • Omada Hardware Controller (OC300)
  • Omada Hardware Controller (OC200)
  • Omada Software Controller
• Cloud Access :Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
• Zero-Touch Provisioning :Yes. Requiring the use of Omada Cloud-Based Controller.
• Management Features :• Web-based GUI
  • Command Line Interface (CLI) through the console port, telnet
  • SNMP v1/v2c/v3
  - Trap/Inform
  - RMON (1,2,3,9 groups)
  • SDM Template
  • DHCP/BOOTP Client
  • 802.1ab LLDP/LLDP-MED
  • DHCP AutoInstall
  • Dual Image, Dual Configuration
  • CPU Monitoring
  • Cable Diagnostics
  • EEE
  • Password Recovery
  • SNTP
  • System Log

OTHERS

• Certification :CE, FCC, RoHS
• Package Contents :• TL-SG3452XP Switch
  • Power Cord
  • Quick Installation Guide
  • Rackmount Kit
  • Rubber Feet
• System Requirements :Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
• Environment :• Operating Temperature: 0-40 ? (32-104 ?);
  • Storage Temperature: -40-70 ? (-40-158 ?)
  • Operating Humidity: 10-90% RH non-condensing
  • Storage Humidity: 5-90% RH non-condensing
