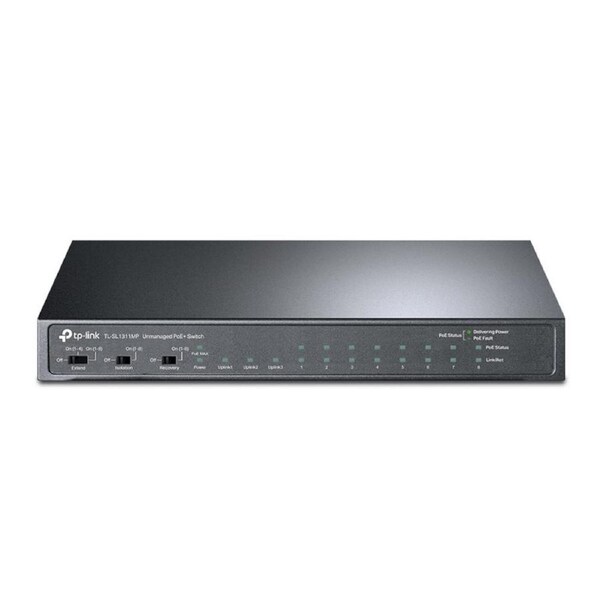

[TL-SL1311MP] 8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch

TP-Link TL-SL1311MP 8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+

• 8x 10/100 Mbps RJ45 Ports, 2x Gigabit RJ45 Ports, 1x Gigabit SFP Port
• 8x PoE+ ports transfer data and power on individual cables
• Works with IEEE 802.3af/at compliant PDs
• Supports PoE Power up to 30 W for each PoE port
• Supports PoE Power up to 124 W for 8 PoE ports*
• Up to 250 m data and power transmitting range under Extend Mode**
• Isolation Mode allows one-click client traffic separation for higher security and performance
• PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
• Fanless Design reduces power consumption and works silently in its location
• Plug and play with no configuration required

HARDWARE FEATURES

• Interface :• 8x 10/100 Mbps 802.3af/at PoE+ Ports, 2x Gigabit RJ45 Ports, 1x Gigabit SFP Port
  • AUTO Negotiation
  • AUTO MDI/MDIX
• Network Media :• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100? STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100? STP (maximum 100m)
• Fan Quantity :Fanless
• Physical Security Lock :Yes
• External Power Supply :External Power Adapter (Output: 53.5VDC / 2.43A)
• Packet Forwarding Rate :5.6544 Mpps
• PoE Ports (RJ45) :• Standard: 802.3 af/at compliant
  • PoE Ports: Ports 1-8
  • Power Supply: 124 W
• Mac Address Table :2K
• Jumbo Frame :16 KB
• Switching Capacity :7.6 Gbps
• Dimensions ( W x D x H ) :8.2 x 4.9 x 1.0 in (209 x 126 x 26 mm)
• Max Power Consumption :• 5.95 W (220/50 Hz. no PD connected)
  • 140.92 W (220/50 Hz. with 124 W PD connected)
• Max Heat Dissipation :• 20.29 BTU/h (no PD connected)
  • 480.54 BTU/h (220/50 Hz. with 124 W PD connected)

SOFTWARE FEATURES

• Transmission Method :Store-And-Forward
• Advanced Functions :• Compatible With IEEE 802.3af/at Compliant PDs
  • Extend Mode Button (Ports 1-4 and Ports 1-8, Up to 250 m PoE power supply and data transmission)
  • Isolation Mode Button (Ports 1-8)
  • PoE Auto Recovery Button (Ports 1-8)
  • Mac Address Auto-Learning and Auto-Aging
  • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode

OTHERS

• Certification :FCC, CE, RoHS
• Package Contents :• TL-SL1311MP
  • Power Adapter
  • Installation Guide
• Environment :• Operating Temperature: 0-40 ? (32-104 ?)
  • Storage Temperature: -40-70 ? (-40-158 ?)
  • Operating Humidity: 10-90% RH non-condensing
  • Storage Humidity: 5-90% RH non-condensing
