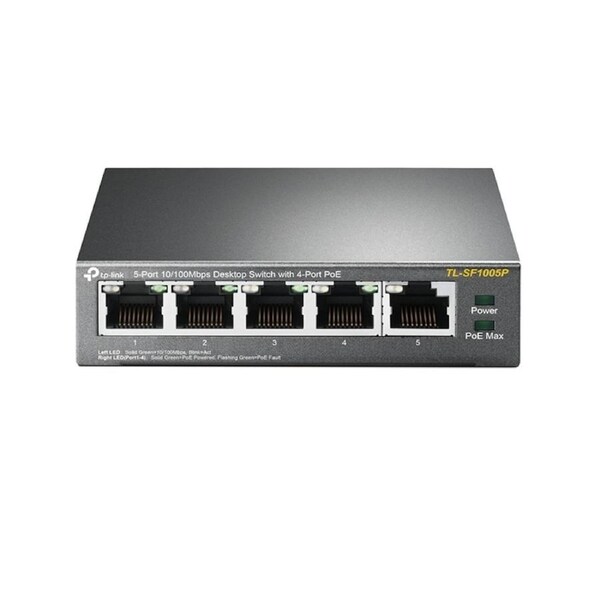

[TL-SF1005P] 5 Port 100Mbps Unmanaged Ethernet Network Desktop Switch POE

TP-Link TL-SF1005P 5-Port 10/100Mbps Desktop Switch with 4-Port PoE

• 5 10/100Mbps RJ45 ports
• With four PoE ports, transfers data and power on one single cable
• Working with IEEE 802.3af compliant PDs, expands home and office network
• Supports PoE Power up to 15.4W for each PoE port
• Supports PoE Power up to 67W for all PoE ports
• Requires no configuration and installation

HARDWARE FEATURES

• Interface :• 5x 10/100 Mbps RJ45 Ports (4x 10/100 Mbps 802.3af/at PoE+ ports)
  • AUTO Negotiation
  • AUTO MDI/MDIX

• Network Media :• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100? STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100? STP (maximum 100m)

• Fan Quantity :Fanless
• Physical Security Lock :Yes
• External Power Supply :External Power Adapter (Output: 53.5 V DC / 1.31 A)
• Packet Forwarding Rate :0.744 Mpps
• PoE Ports (RJ45) :• Standard: 802.3 af/at compliant
  • PoE Ports: Ports 1-4
  • Power Supply: 67 W

• Mac Address Table :2K
• Jumbo Frame :2 KB
• Switching Capacity :1 Gbps
• Dimensions ( W x D x H ) :3.9 x 3.9 x 1.0 in (99.8 x 98 x 25 mm)
• Max Power Consumption :• 1.9 W (220 V / 50 Hz, no PD connected)
  • 74 W (220 V / 50 Hz, with 67 W PD connected)
• Max Heat Dissipation :• 6.48 BTU/h(no PD connected)
  • 252.34 BTU/h(with 67 W PD connected)


SOFTWARE FEATURES

• Transmission Method :Store-And-Forward
• Advanced Functions :• Compatible With IEEE 802.3af/at Compliant PDs
  • Extend Mode Button (Ports 1-4)
  • Priority Mode Button (Ports 1-2)
  • Mac Address Auto-Learning And Auto-Aging
  • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode


OTHERS

• Certification :FCC, CE, RoHS
• Package Contents :• TL-SF1005P
  • Power Adapter
  • Installation Guide
• Environment :• Operating Temperature: 0-40 ? (32-104 ?)
  • Storage Temperature: -40-70 ? (-40-158 ?)
  • Operating Humidity: 10-90% RH non-condensing
  • Storage Humidity: 5-90% RH non-condensing
