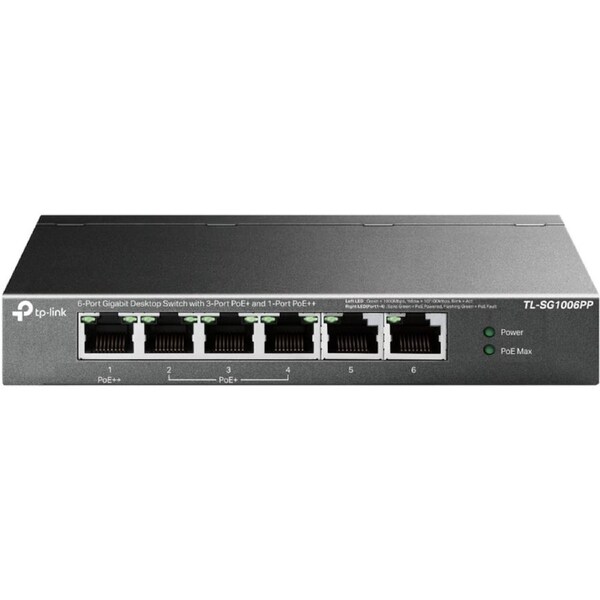

[TL-SG1006PP] 6-Port Gigabit Desktop Switch with 3-Port PoE+ 1-Port PoE++

TP-Link TL-SG1006PP, 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++

• 6x 10/100/1000 Mbps RJ45 ports
• With one PoE++ port and three PoE+ ports, transfers data and power on one single cable
• Workswith IEEE 802.3af/at/bt compliant PDs
• 802.1p/DSCP QoS enable smooth latency-sensitive traffic
• Supports PoE Power up to 30 W for each PoE+ portand 60W for PoE++ port
• Supports PoE Power up to 64 W for all PoEports*
• Up to 250m data and power transmitting range under Extend Mode**
• PoE Auto Recovery guarantees stable operation of PoE devices by automaticallyrebooting the dropped or unresponsive PD devices
• Plug and Play,no configuration and installation required
• Learn more about TP-LinkPoE technology >

HARDWARE FEATURES

• Interface :• 6x 10/100/1000Mbps RJ45 Ports
  • AUTO Negotiation
  • AUTO MDI/MDIX
• Network Media :• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100? STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100? STP (maximum 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
  • EIA/TIA-568 100? STP (maximum 100m)
• Fan Quantity :Fanless
• External Power Supply :External Power Adapter (Output: 53.5 VDC / 1.31 A)
• Packet Forwarding Rate :8.928 Mpps
• PoE Ports (RJ45) :• Port 1 compliances with 802.3af/at/bt; Ports 2-4 compliance with 802.3af/at
  • Power Supply: 64 W
• Mac Address Table :4K
• Switching Capacity :12 Gbps
• Dimensions ( W x D x H ) :6.2x4.0x1.0 in (158x101x25 mm)
• Max Power Consumption :• 4.75 W (220/50 Hz. no PD connected)
  • 71.46 W (220/50 Hz. with 64 W PD connected)
• Max Heat Dissipation :• 16.20 BTU/h (220/50 Hz. no PD connected)
  • 243.68 BTU/h (220/50 Hz. with 64 W PD connected)

SOFTWARE FEATURES

• Advanced Features :• Compatible With IEEE 802.3af/at/bt Compliant PDs
  • Mac Address Auto-Learning And Auto-Aging
  • IEEE 802.3x Flow Control
  • 802.1p/DSCP QoS
  • IGMP Snooping
  • Extend Mode Button (Ports 1-2, Up to 250 m PoE power supply and data transmission)
  • PoE Auto Recovery (Ports 1-4)
• Transfer Method :Store-And-Forward

OTHERS

• Certification :FCC, CE, RoHS
• Package Contents :• TL-SG1006PP
  • Power Adapter
  • Installation Guide
• Environment :• Operating Temperature: 0-40 ? (32-104 ?);
  • Storage Temperature: -40-70 ? (-40-158 ?)
  • Operating Humidity: 10-90% RH non-condensing
  • Storage Humidity: 5-90% RH non-condensing
