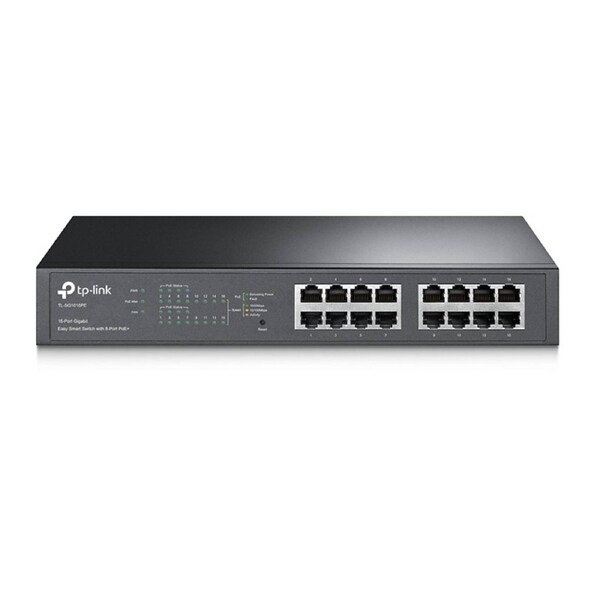

[TL-SG1016PE] 16-Port Gigabit Smart Switch with 8-Port PoE+ Rack Mountable

TP-Link TL-SG1016PE 16-Port Gigabit Easy Smart Switch with 8-Port PoE+

• 16x 10/100/1000Mbps RJ45 ports
• Equipped with 8x PoE+ supported ports to transfer data and power over a single cable
• With a total PoE power budget of 150 W,* up to 30 W per port
• Works with IEEE 802.3af/at compliant devices
• Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto recovery
• Simple network set-up on top of plug-and-play connectivity
• Web-based user interface and management utility simplify configuration

HARDWARE FEATURES

• Standards and Protocols :IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
• Interface :16x 10/100/1000 Mbps RJ45 Ports
  AUTO Negotiation/AUTO MDI/MDIX

• Network Media :10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  EIA/TIA-568 100? STP (maximum 100m)
  100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  EIA/TIA-568 100? STP (maximum 100m)
  1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
  EIA/TIA-568 100? STP (maximum 100m)

• Fan Quantity :1
• Physical Security Lock :Yes
• PoE Ports (RJ45) :Standard: 802.3 af/at compliant
  PoE Ports: Port 1 to Port 8
  PoE Power Budget: 150 W
• Dimensions ( W x D x H ) :11.6x7.1x1.7 in (294x180x44 mm)
• Mounting :Rack Mountable/ Desktop
• Max Power Consumption :8.8 W (220 V/50 Hz with no PD connected)
  172.26 W (220 V/50 Hz with 150 W PD connected)
• Max Heat Dissipation :30.01 BTU/h (220 V/50 Hz with no PD connected)
  587.41 BTU/h (220 V/50 Hz with 150 W PD connected)

PERFORMANCE

• Switching Capacity :32 Gbps
• Packet Forwarding Rate :23.8 Mbps
• MAC Address Table :8K
• Packet Buffer Memory :4.1 Mbit
• Jumbo Frame :10 KB

SOFTWARE FEATURES

• Quality of Service :Support Port-Based/802.1p/DSCP priority
  Support 4 priority queues
  Rate Limit
  Storm Control
• L2 Features :IGMP Snooping V1/V2/V3
  Static Link Aggregation
  Port Mirroring
  Cable Diagnostics
  Loop Prevention
• VLAN :Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
  MTU/Port/Tag VLAN
• PoE :PoE Management
  Extend Mode
  PoE Auto Recovery
• Management :Web-based GUI
  Easy Smart Configuration Utility
• Transmission Method :Store-And-Forward

OTHERS

• Certification :FCC, CE, RoHS
• Package Contents :TL-SG1016PE
  Power Cord
  Installation Guide
  Rackmount Kit
  Rubber Feet
• System Requirements :Microsoft® Windows® for running Utility
• Environment :Operating Temperature: 0-40 ? (32-104 ?)
  Storage Temperature: -40-70 ? (-40-158 ?)
  Operating Humidity: 10-90% non-condensing
  Storage Humidity: 5-90% non-condensing
